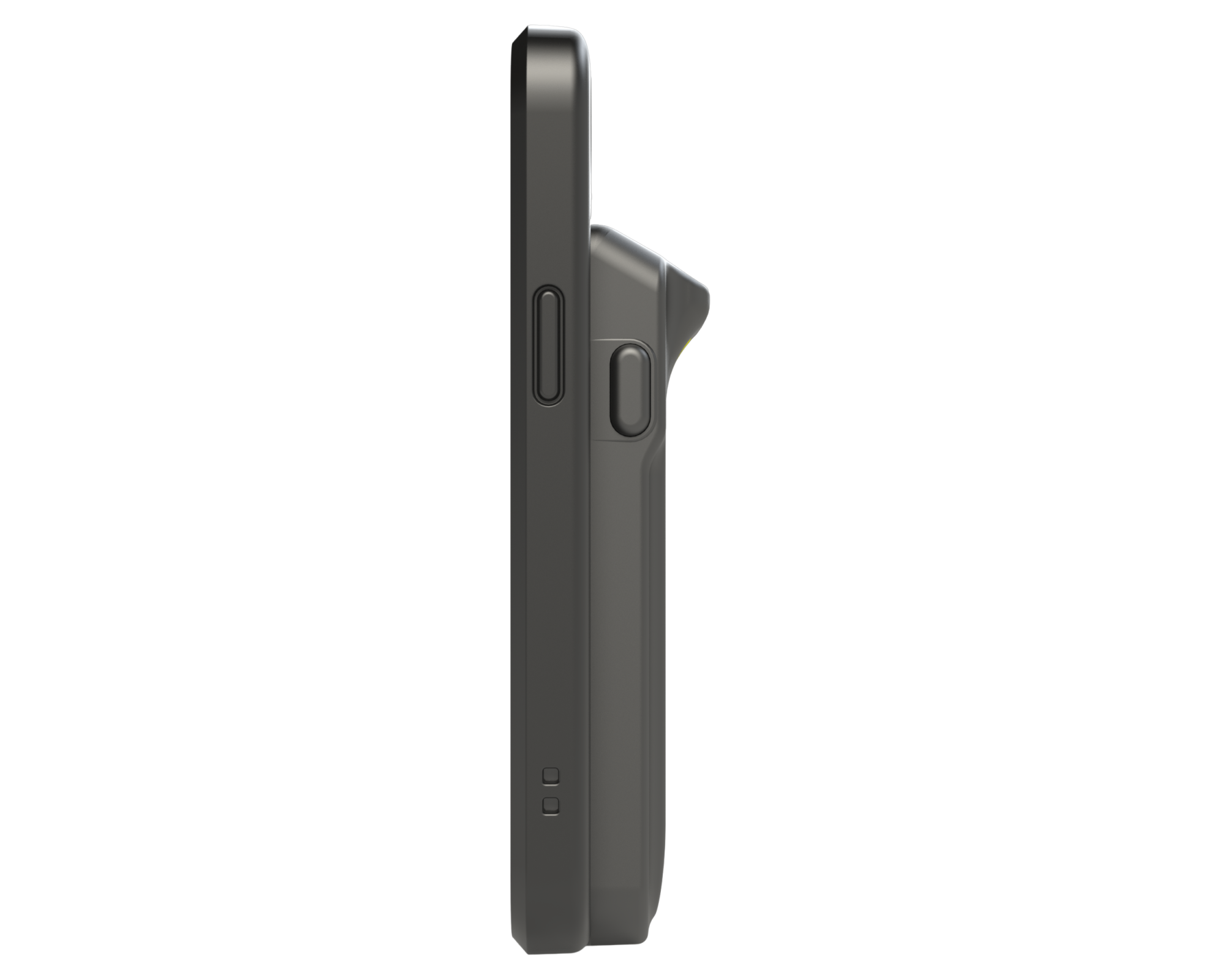

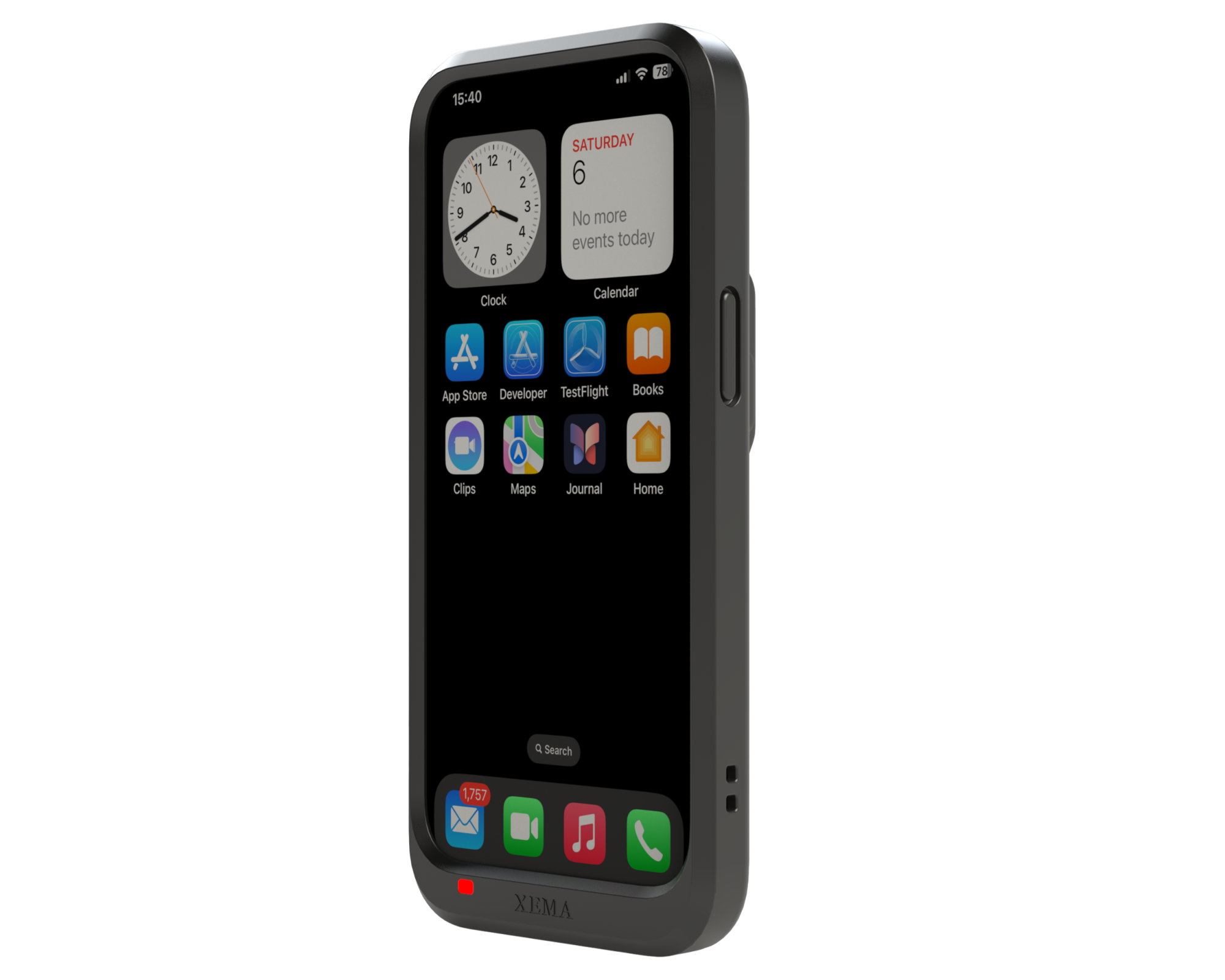

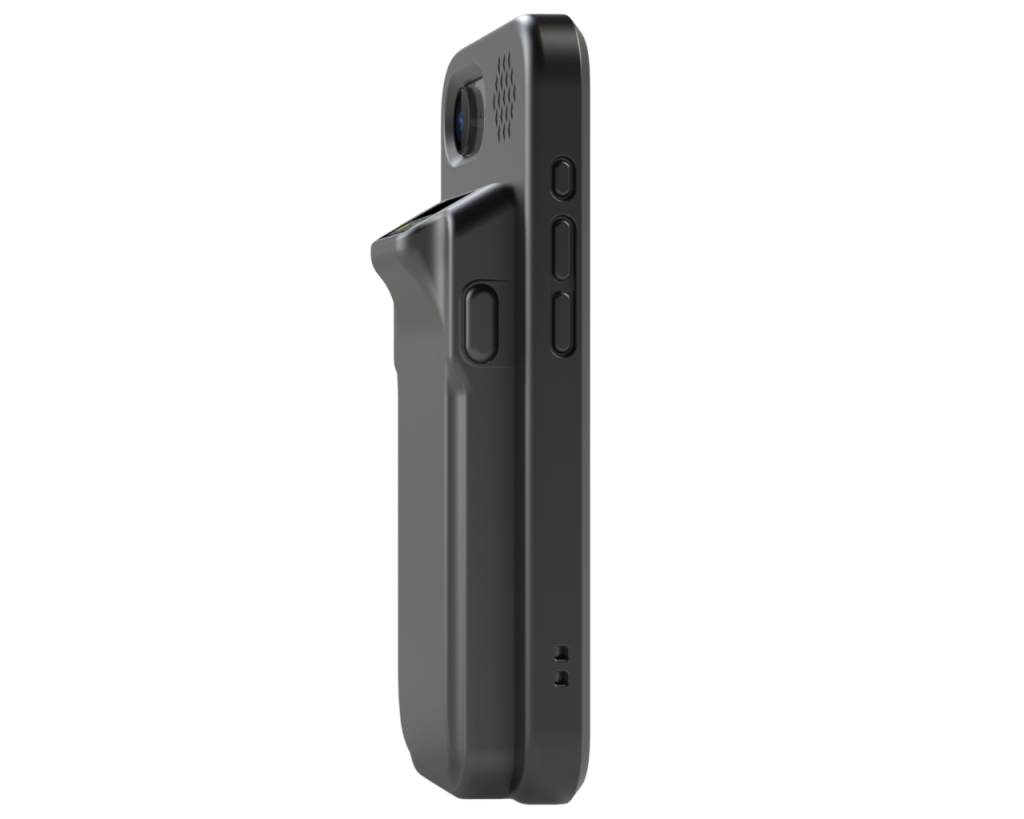

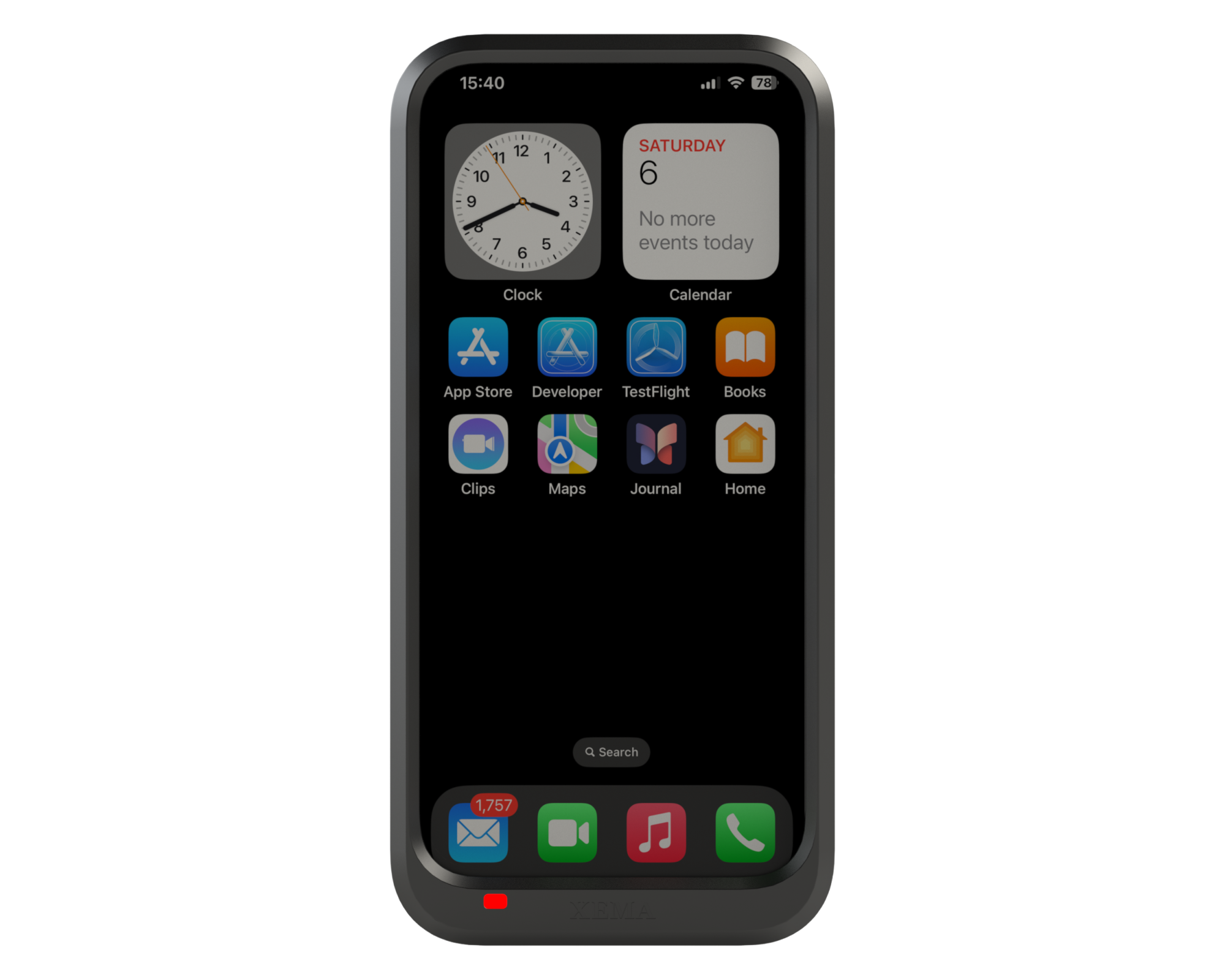

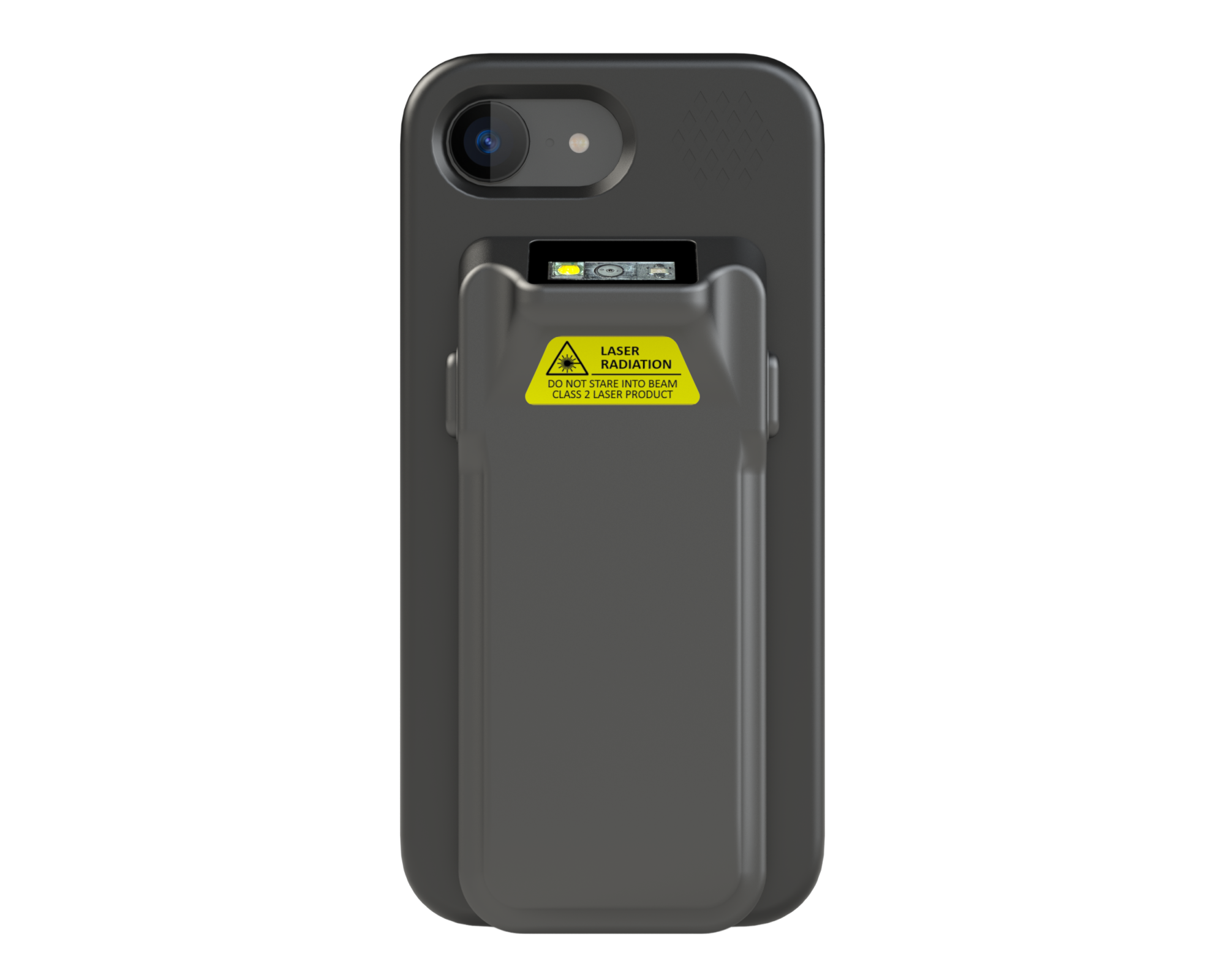

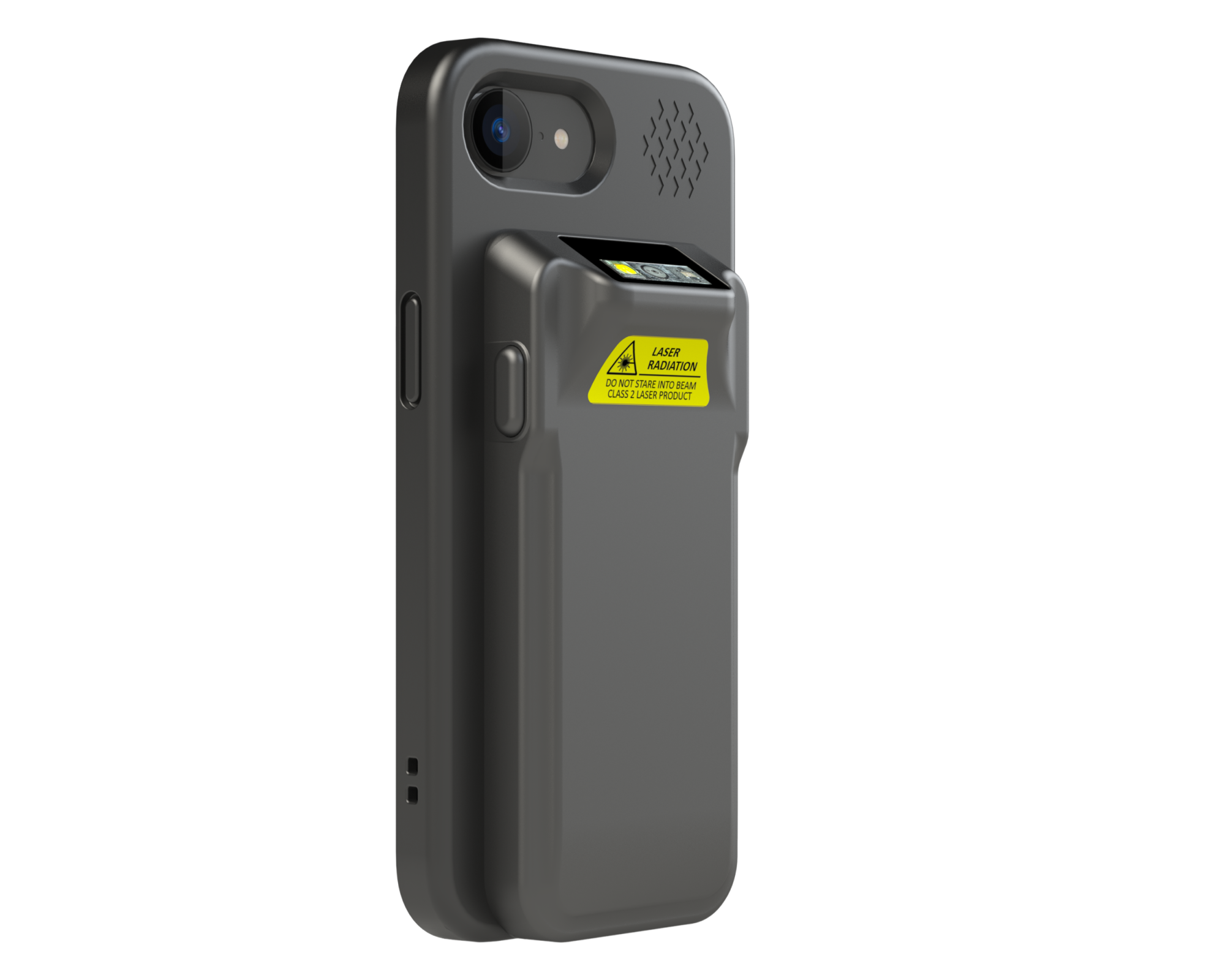

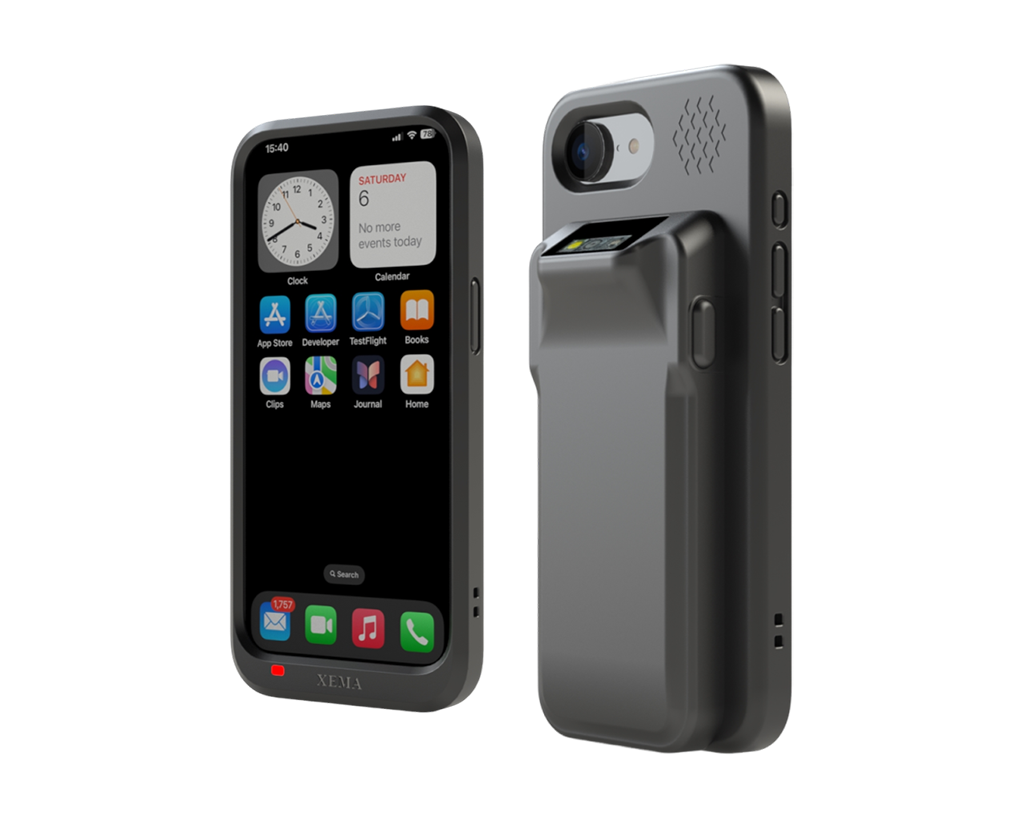

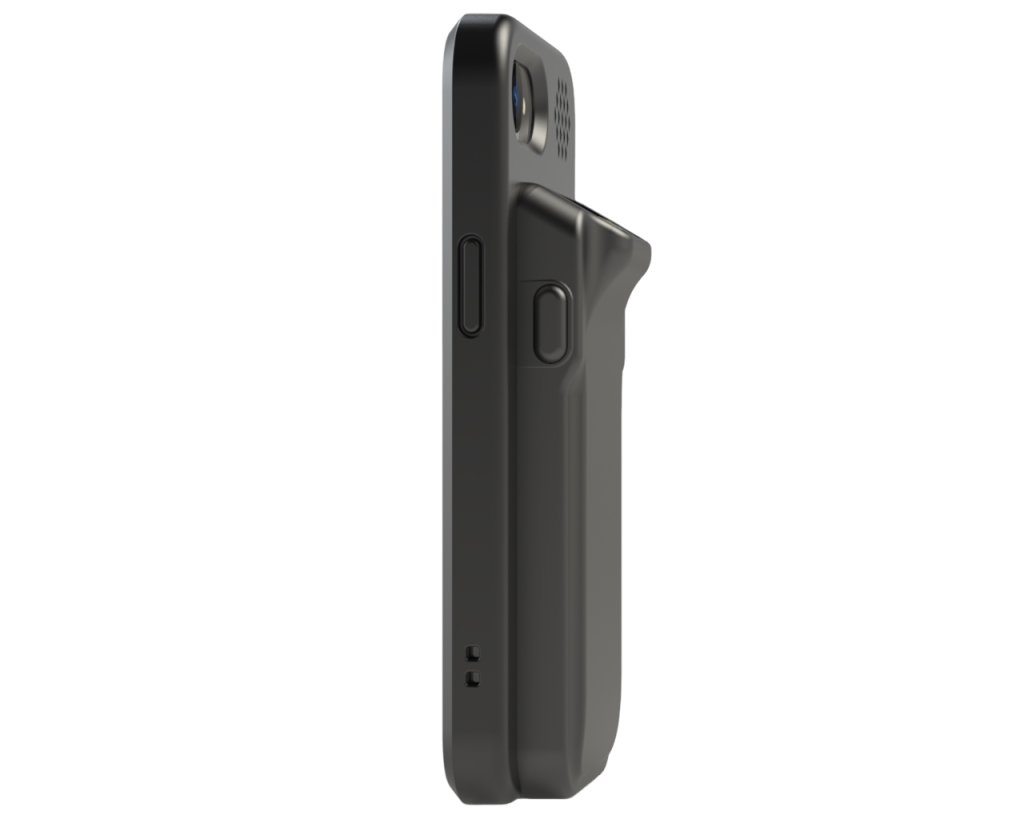

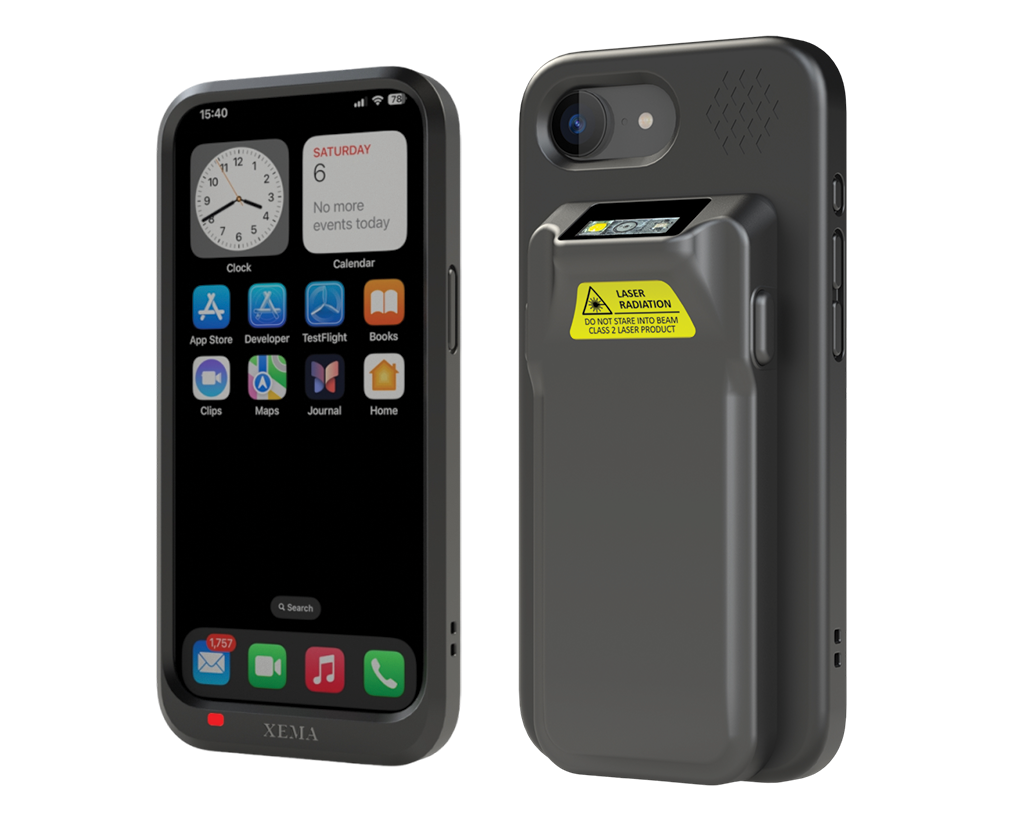

X70
iPod  Barcode Scanner



SPECIFICATIONS

SUPPORTED OS iOS
INTERFACES Apple Lightning connector

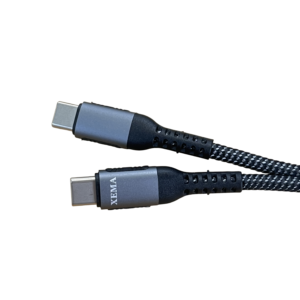

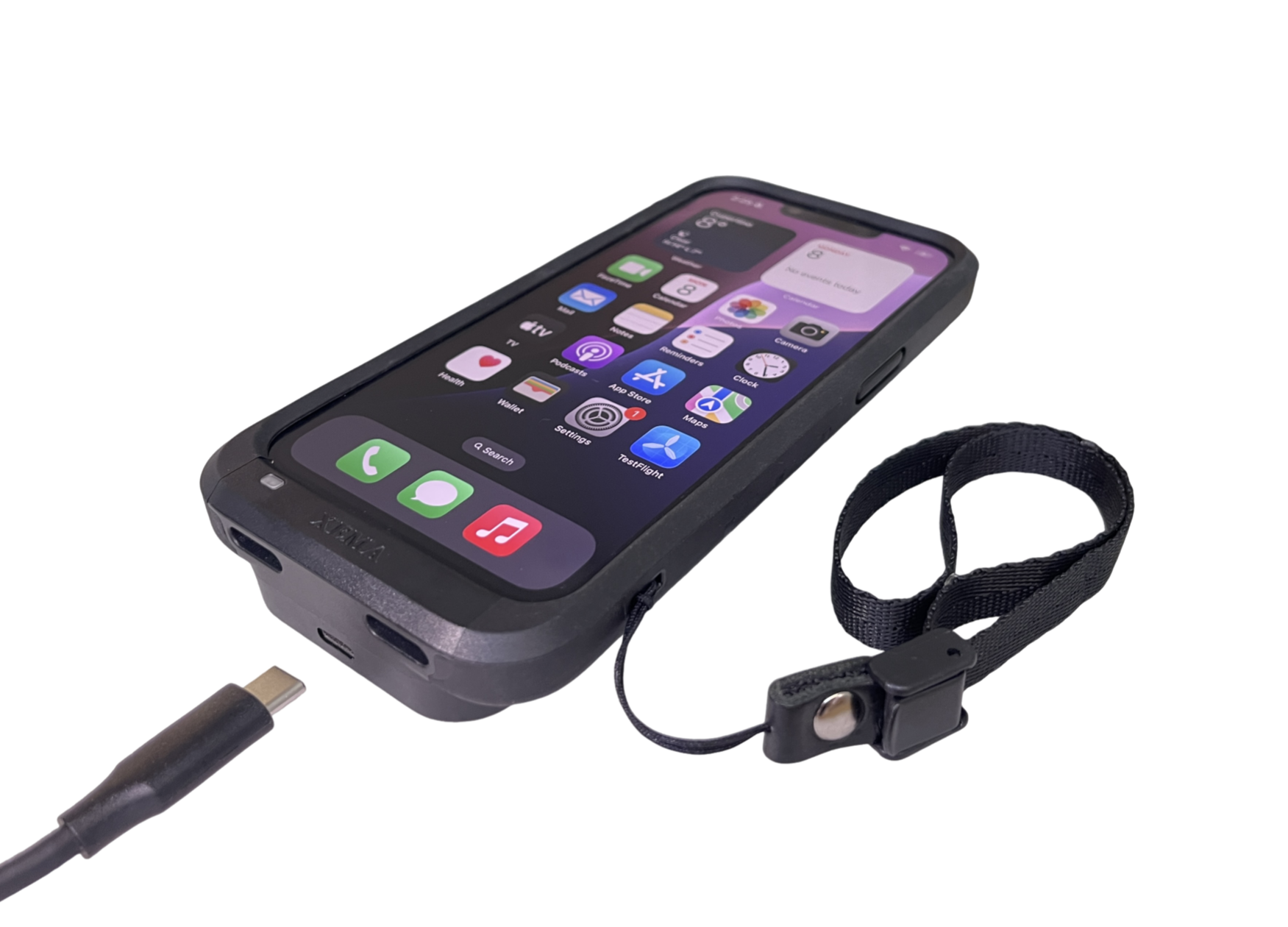

USB Type-C
BATTERY Li-ion, 1100 mAh
POWER CONSUMPTION Peak 2W / Operation 1.4W / Idle 0.18W
CHARGING 5V/2A 10W minimum, 5V/3A recommended
BARCODE TYPE UPC/EAN/JAN, GS1 DataBar, Code 39,
Code 128, Code 32, Code 93, Codabar/NW7,
Interleaved 2 of 5, Code 2 of 5, Matrix 2 of 5,
MSI, Telepen, Trioptic, China Post

QR Code, Micro QR Code, PDF417, MicroPDF417,
GS1 Composite, Aztec Code, Data Matrix,
MaxiCode, Han Xin Code

Postal: Intelligent Mail Barcode, Postal-4i,
Australian Post, British Post, Canadian Post,
Japanese Post, Netherlands (KIX) Post, Postnet,
Planet Code

OCR Option: OCR-A, OCR-B, E13B (MICR)
INDICATORS Two color LEDs
BUTTONS Two scanning buttons
NUMBER OF SCAN > 20,000 scans/charge
DIMENSION 63mm x 136mm x 30mm
WEIGHT 90gr (exclude accessories)
OPERATION Discharge: -10~40°C / 14~103°F
Charge: 0~40°C / 32~103°F
CERTIFICATIONS Battery:
IEC 62133: 2012 (Second Edition)

EMC / EMI:
FCC, Part 15 Subpart B
ICE-003
KN32, KN35
KN61000-4-* (IEC61000-4-*)

Safety:
IEC 60825-1 Ed 2 (2007)
