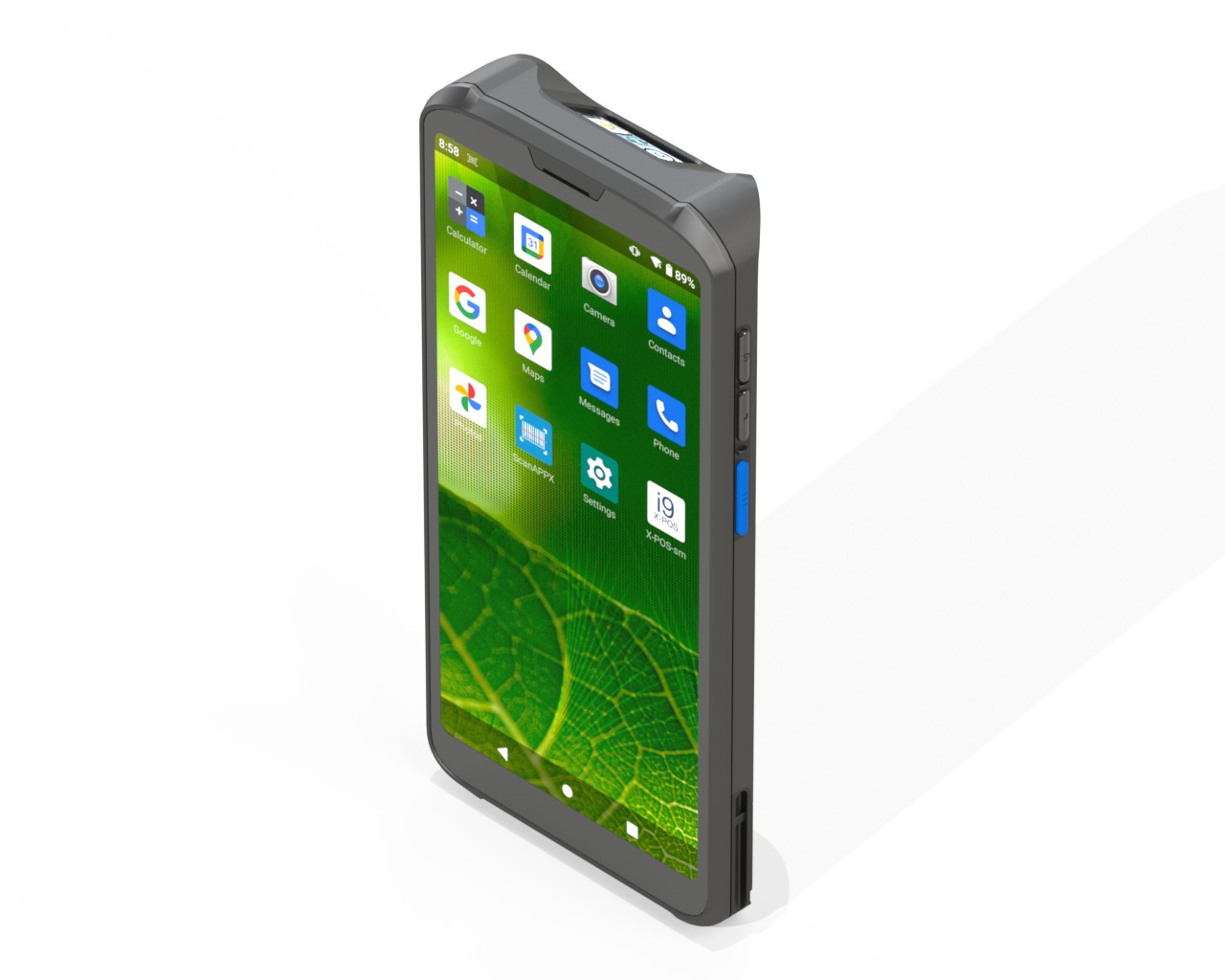

TC603/E3R

Rugged Android Barcode Scanner




PERFORMANCE CHARACTERISTICS

OPERATING SYSTEM                       Android 10 with GMS
CPU
  • Qualcomm® Snapdragon™ 660
  • 2.2GHz Octa Core
MEMORY           eMCP 4GB LPDDR4x + 64GB eMMC 5.1

PHYSICAL CHARACTERISTICS

DIMENSIONS          159.4mm x 78.4mm x 14.2mm (main body) / 24.62mm (scanner)
WEIGHT          235g (with standard battery)
DISPLAY & PANEL
  • 6”, 18:9 IPS Full-HD (1080 x 2160) LCM
  • Capacitive 5 points multi-touch panel
  • Gorilla® Glass 5
EXPANSION SLOTS
  • Micro SD card slot x 1 (with SDHC compliance and software image upgrade features)
  • Nano SIM slot x 2
  • Type C supported USB OTG and DC in 5V/3A
  • Cradle connector DC power input
KEY AND BUTTONS
  • Virtual key x 3
  • Side key: Scan key x 2, Volume key x 2, Power key, Function key (programmable)
NOTIFICATION
  • Vibration
  • Ring tone
  • LED behavior
              ➢ Charging
                  - Charging: Red
                  - Charge full: Green
                  - Battery low: Red (Blinking on)
              ➢ Scan
                  - Scan Start: Red
                  - Decoder: Green (Blinking once)
              ➢ Information
                  - Message notice: Blue
AUDIO & VOICE
  • Speaker x 1 (95dB @ 10cm)
  • Receiver x 1, Dual noise-cancelling microphones x 1
  • Supported Type C trans to 3.5mm head-set
SENSOR          Accelerometer, Gyroscope, e-Compass, Light Sensor, Proximity Sensor

POWER

BATTERY            Replaceable main battery: 3.85V/4000mAh
POWER ADAPTER
  • 100~240Vac, 50/60Hz Input
  • 5V/3A 15W, 9V/2A 18W output (QC3.0)

USER NVIRONMENT

OPERATING TEMP.          -20°C~50°C / -4~122°F
STORAGE TEMP.          -30°C~70°C / -22~158°F (w/o battery)
CHARGING TEMP.          0°C~45°C / 32~113°F
HUMIDITY          5%~90% (non-condensing)
SEALING STANDARD          IP65 & IP67 Standard
DROP SPECIFICATION          1.8m MIL-STD 810G with boot and 1.6m MIL-STD 810G
TUMBLE SPECIFICATION          0.5m tumbles for 300 cycles and 600 drops
ESD          ±7KV contact discharge, ±15KV air discharge

NETWORK CONNECTION

WIRELESS PAN          Bluetooth 5.0
WIRELESS LAN
  • 802.11a/b/g/n/ac Wireless LAN, 2.4GHz and 5GHz
  • Compliant with WEP, WPA and IEEE 802.11i WPA2
  • Fast roaming
WIRELESS WAN
  • GSM: 850,900,1800,1900 MHz
  • WCDMA: B1, B2, B5, B8
  • LTE: B1, B2, B3, B4, B5, B7, B8, B12, (B17), B19, B20, B28, B38, B39, B40, B41(100M only)
GPS          aGPS, GPS, GLONASS, Beidou, Galileo, QZSS, SBAS

DATA CAPTURE

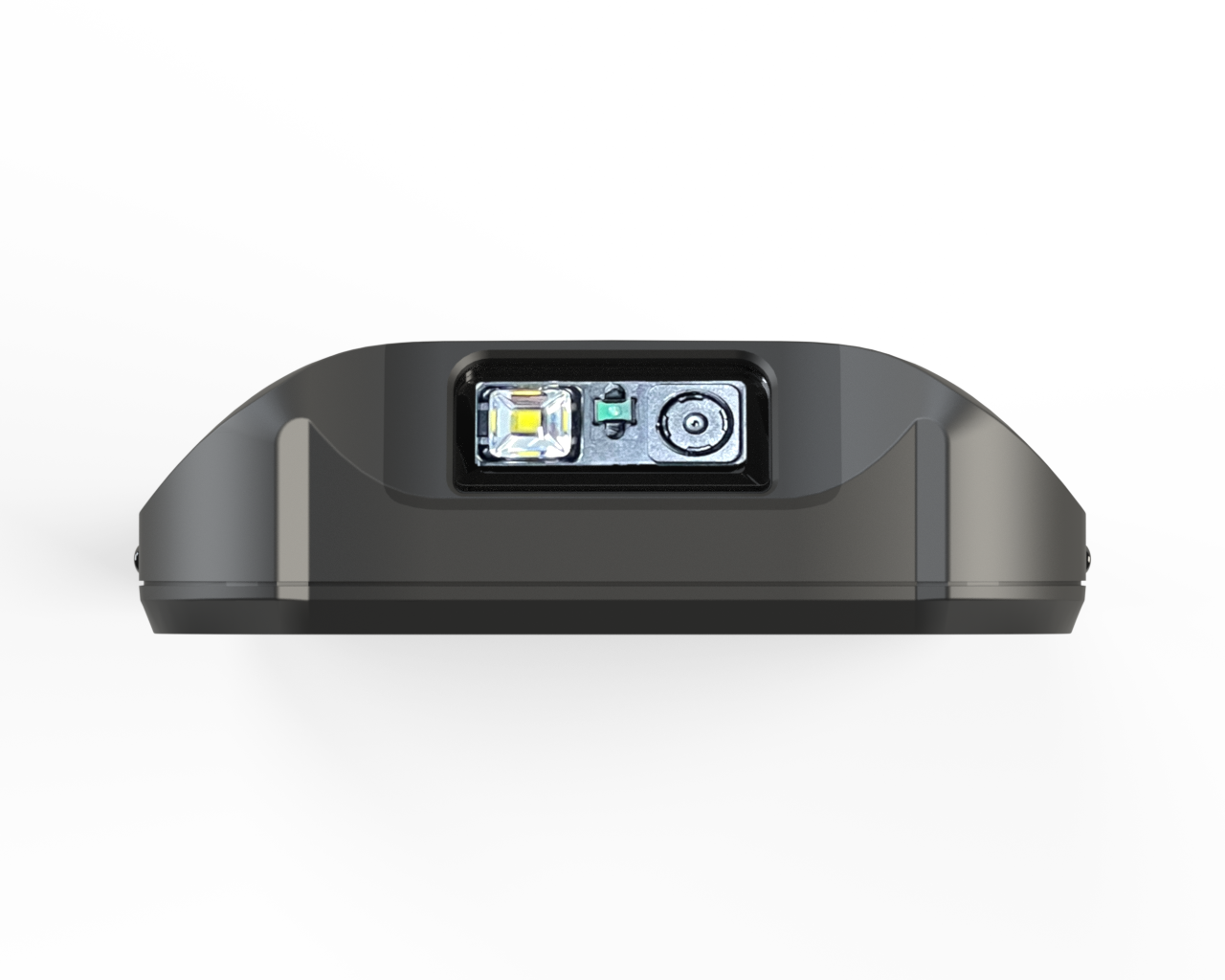

SCANNER
  • Support 1D/2D
  • Scan engine: Honeywell N4603
  • Scanning Angle: 30°
CAMERA
  • Front camera: 5M pixel CMOS color camera
  • Rear camera: 16M pixels CMOS color camera with auto focus
  • LED flashlight
NFC
  • ISO14443-4 (Type A, Type B), ISO15693
  • Mifare, Felica (ISO/IEC18092)

REGULATORY COMPLIANCE

CERTIFICATION
  • CB, CE, UKCA, FCC, NCC, Japan certification
  • RoHS, REACH, WEEE

ACCESSORIES

ACCESSORIES
  •  Adaptor
  • Data Cable (Type C)
  • LCM Protector (Optional)
  • Protective Boot (Optional)
  • Hand Strap (Optional)
  • Spare Battery (Optional)
  • Pistol Grip (Optional)
  • Kind of 3 Cradles (1 Terminal + 1 External Battery) (Optional)
                - Charging Only
                - Ethernet
                - Display Port

COUNTRY OF ORIGIN

MADE IN          TAIWAN
