| M87 |
|

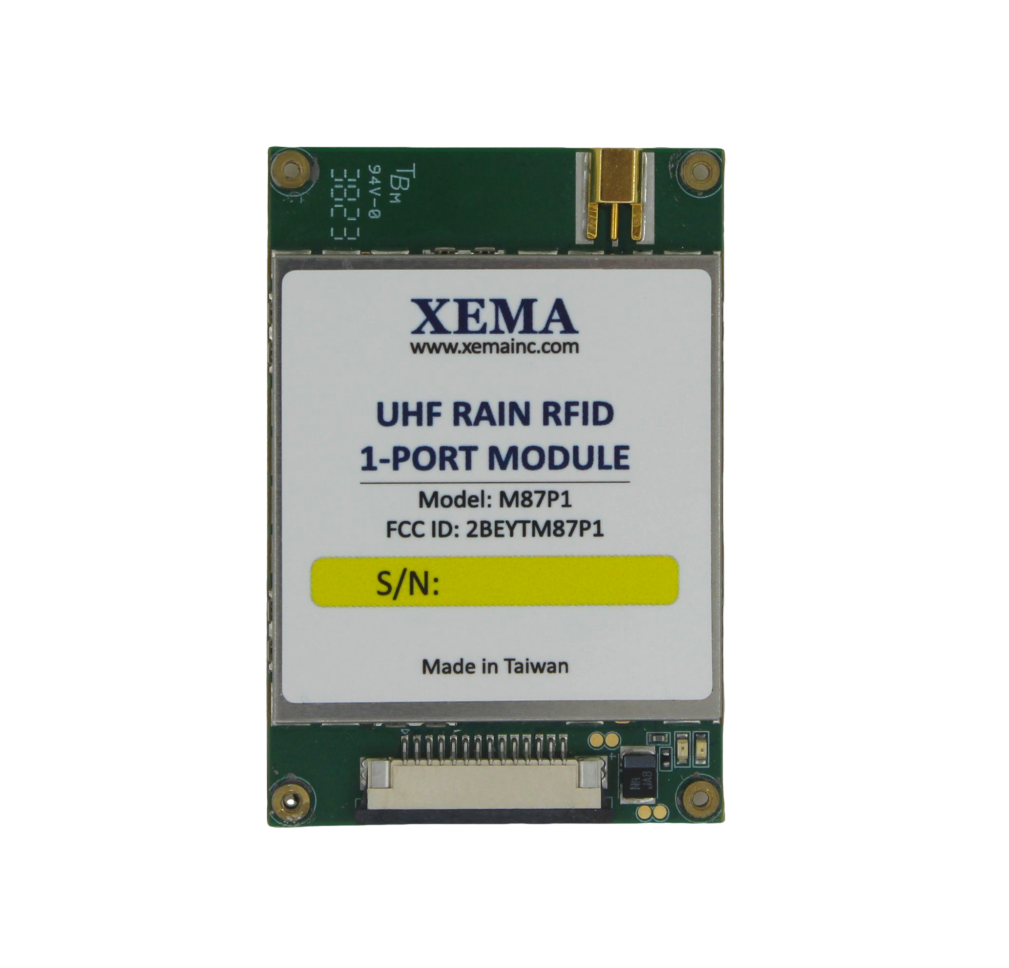

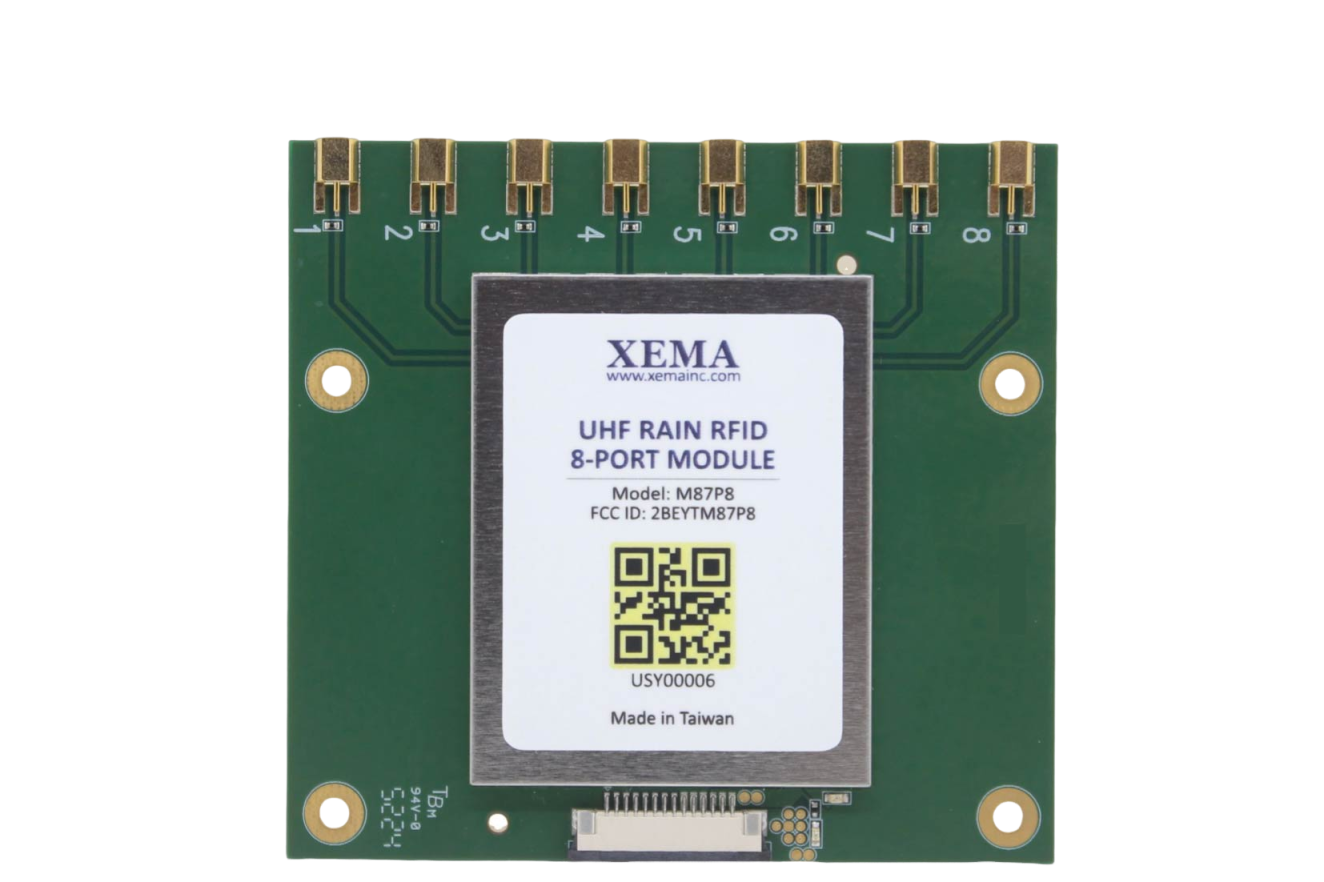

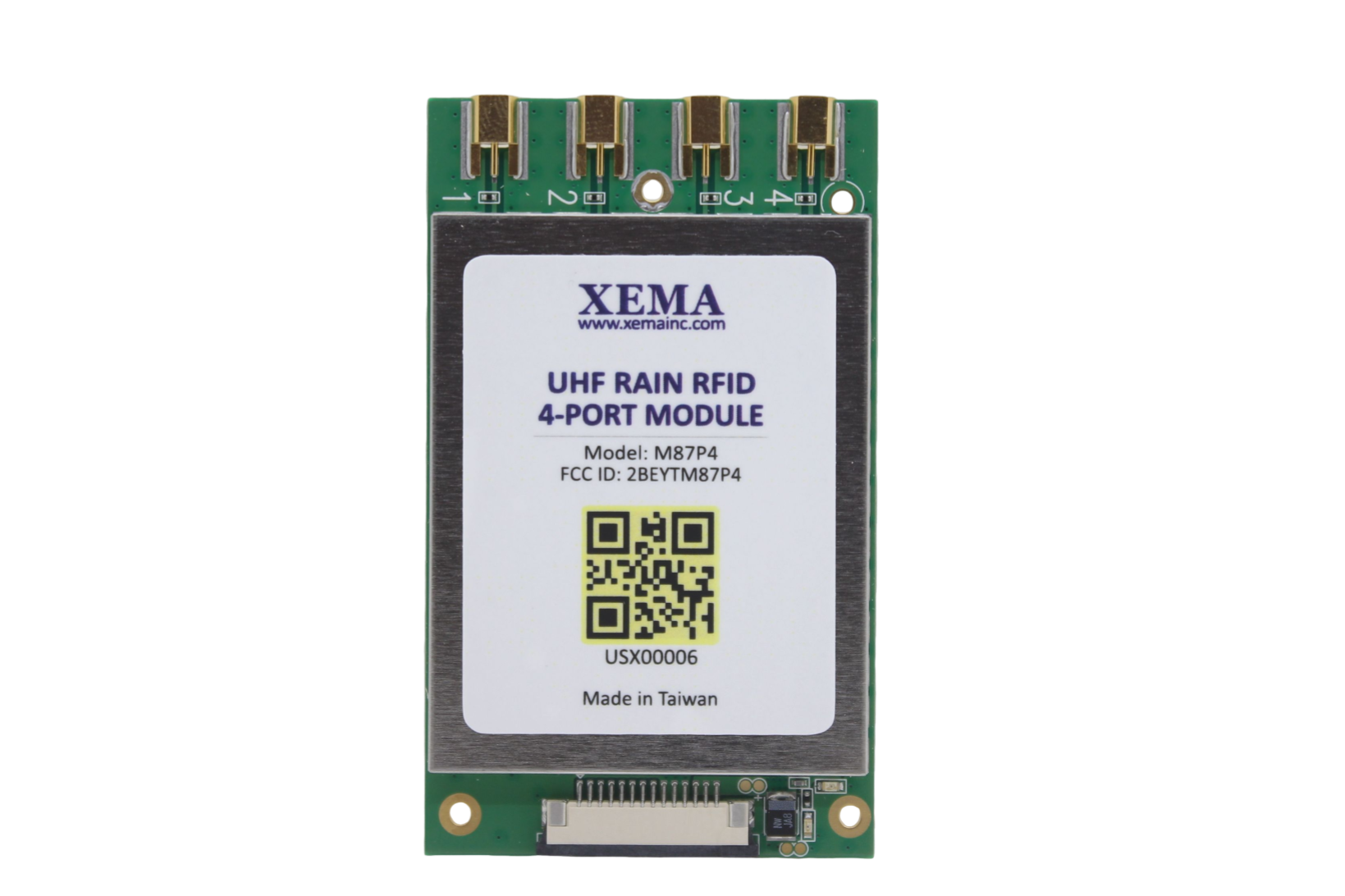

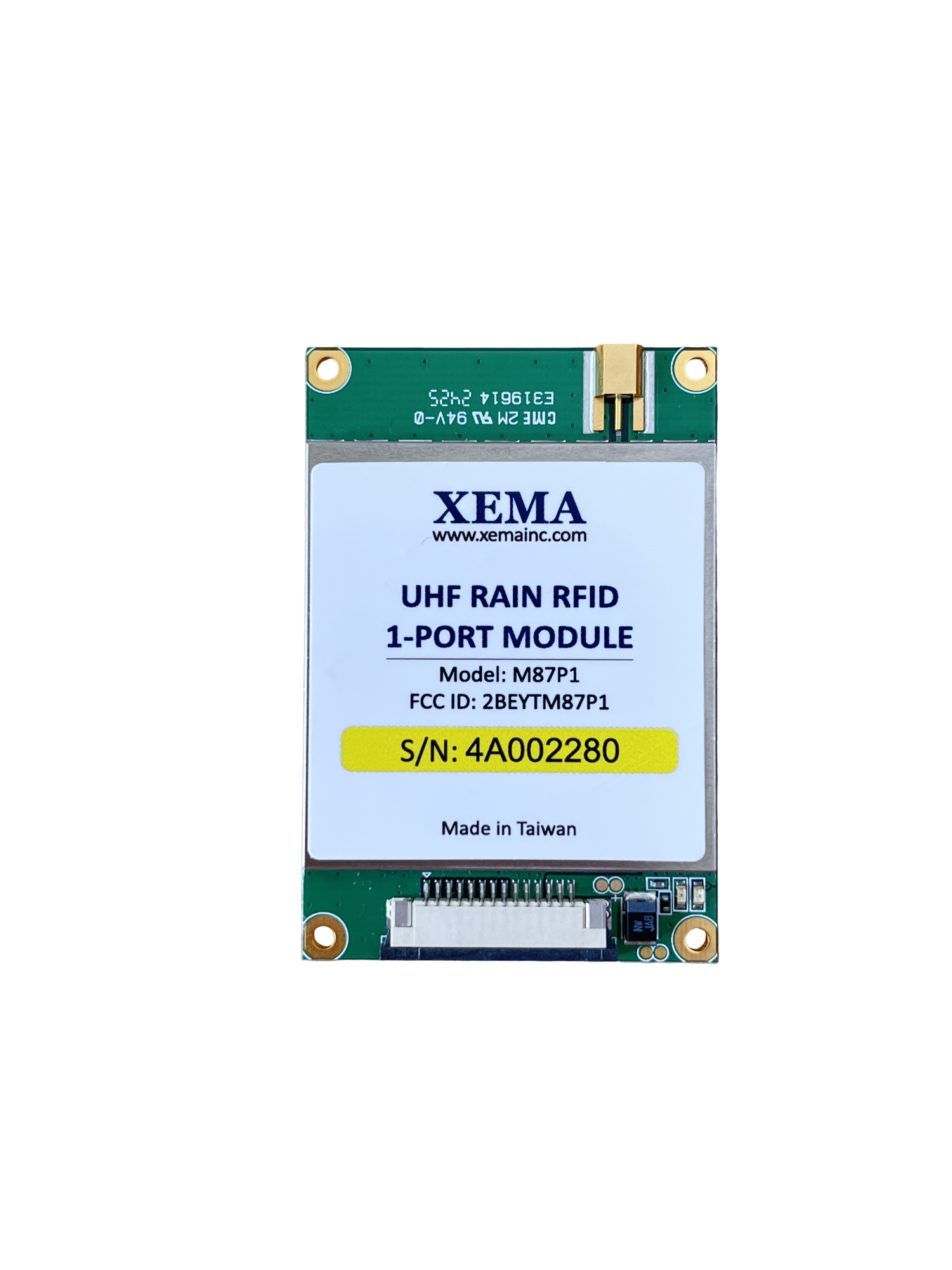

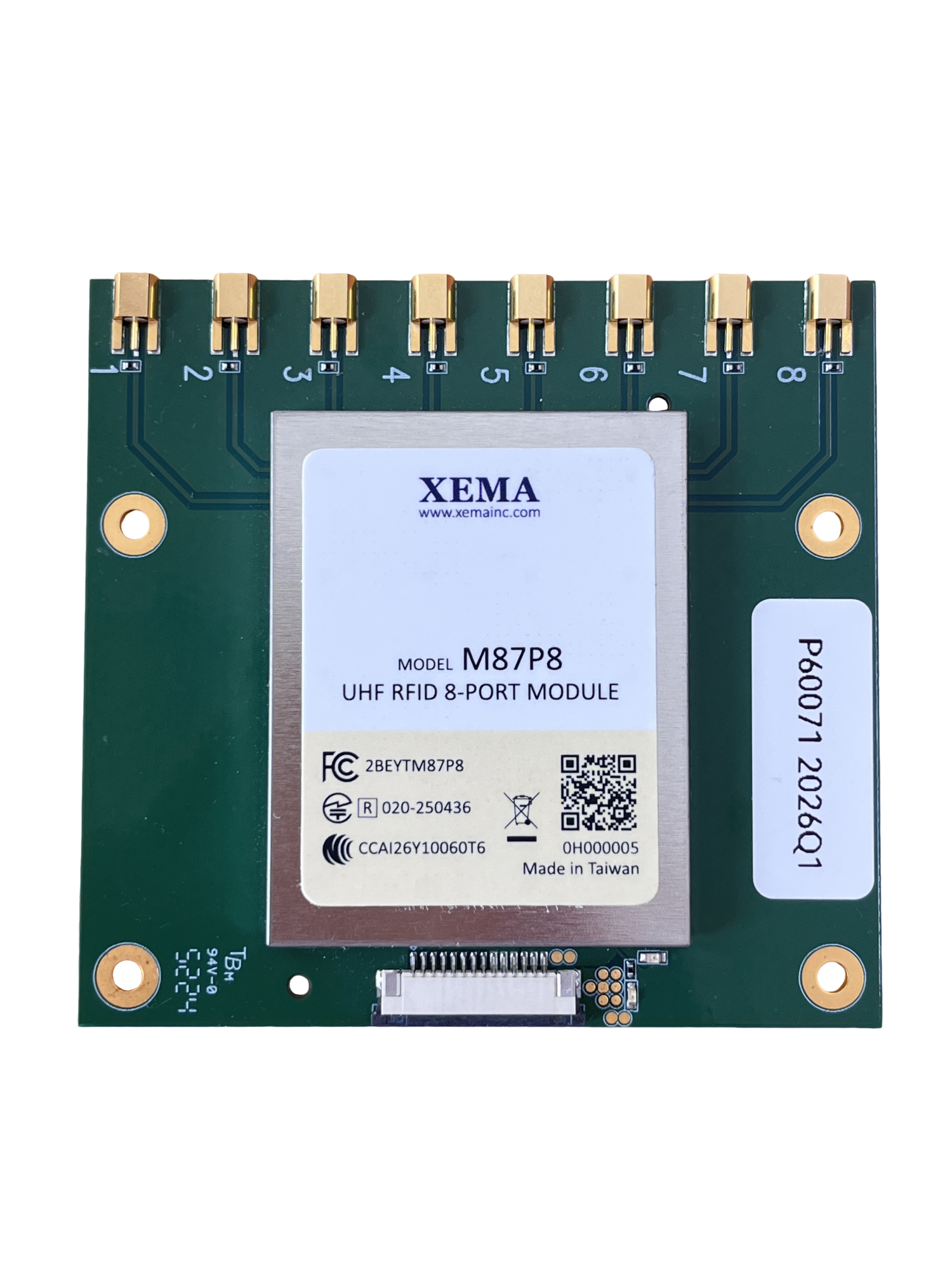

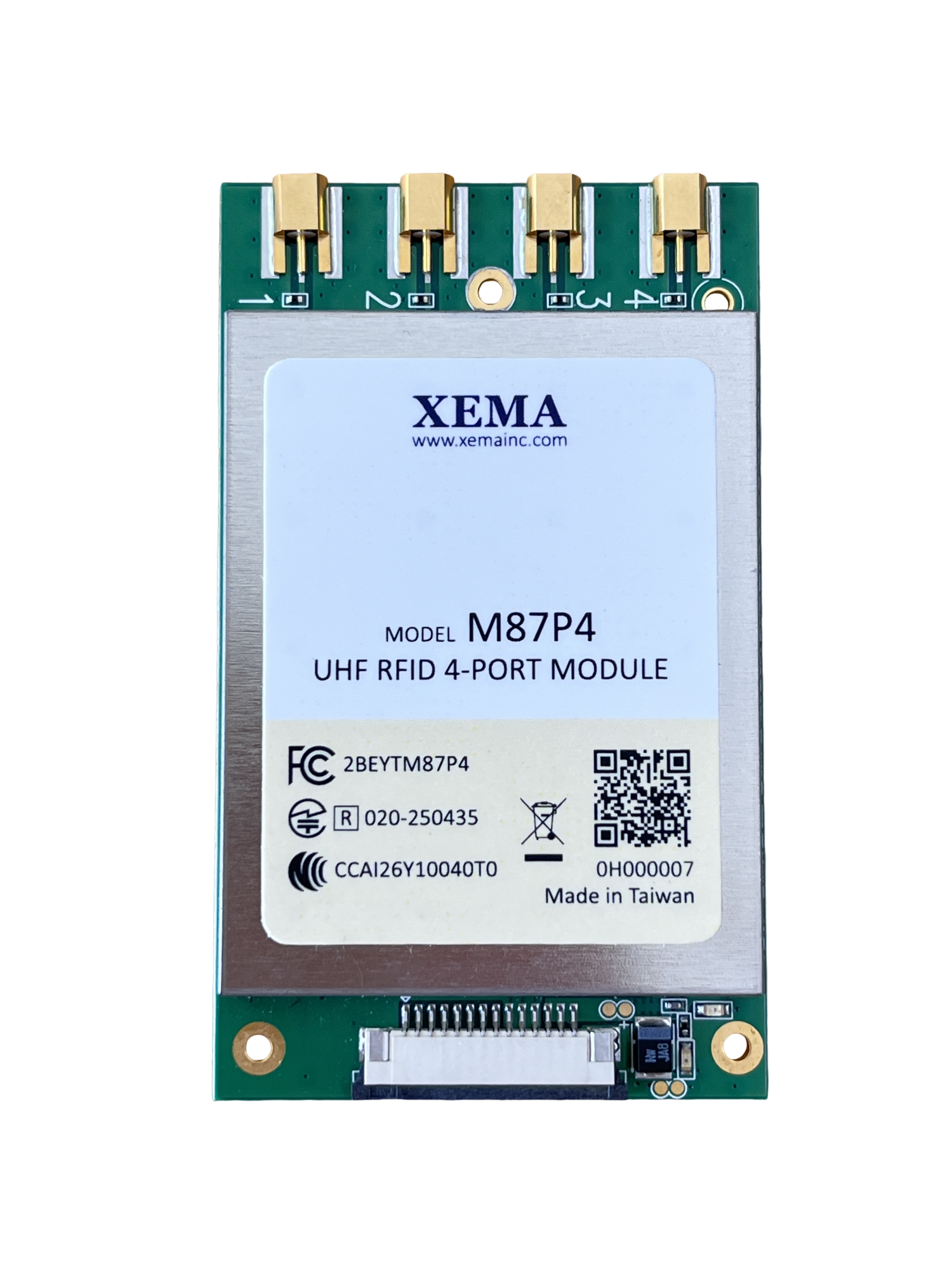

UHF RAIN RFID 1/4/8-Port Module |
 |
 |
RFID CHARACTERISTICS & PERFORMANCE
| STANDARDS | EPC Gen2/v2, ISO 18000-63 |
| CHIPSET | MTI MS710 SiP with Impinj E710 die inside |
| INPUT POWER | 5V 1.4A max |
| RF OUTPUT POWER | Up to 33 dBm; adjustable in 0.1 dBm steps |
| READ RATE & SENSITIVITY | ≥ 1,000 tags/sec, -88 dBm |
| FREQUENCY | 860 ~ 930 MHz |
CONNECTIVITY
| INTERFACE | 14-Pin 1.0 mm Pitch FPC |
| PROTOCOL | UART, Baud Rate 921600 bps |
| ANTENNA CONNECTOR | MMCX Receptacle, 50 Ω, Mono-Static |
| I/O | 4X GPIO |
PHYSICAL & ENVIRONMENTAL CHARACTERISTICS
| DIMENSIONS | M87P1: 37.5 (W) x 55.5 (L) x 4.3 (H) mm ; 13.7 g M87P4: 45 (W) x 70 (L) x 4.3 (H) mm ; 21.8 g M87P8: 80 (W) x 75 (L) x 4.3 (H) mm ; 32.8 g |
| OPERATING TEMP. | -20°C to 70°C |
| STORAGE TEMP. | -40°C to 85°C |
| HUMIDITY | 10%~85% non-condensing |
REGULARTORY
| SUPPORTED REGIONS | Pre-configured for the following regions: US, Canada and other regions following US FCC 47 CFR Ch. 1 Part 15 Europe and other regions following ETSI EN 302 208-1 (V 2.1.1) Australia, Brazil, China, Hong Kong, India, Indonesia, Israel, Japan Korea, Malaysia, New Zealand, Peru, Philippines, Russia, Singapore South Africa, Taiwan, Thailand, Uruguay, and Vietnam. Please contact XEMA for other regions. |
COUNTRY OF ORIGIN
| Made in Taiwan |
