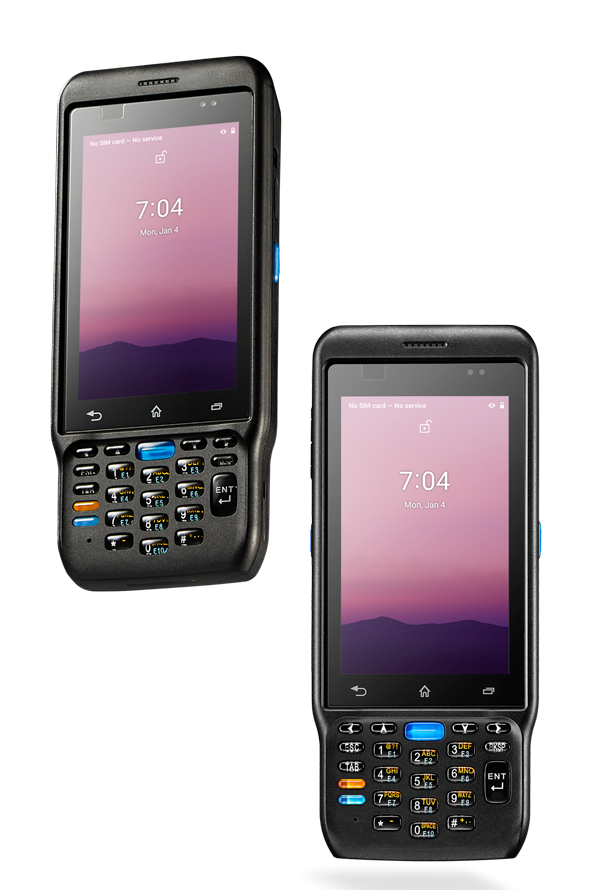

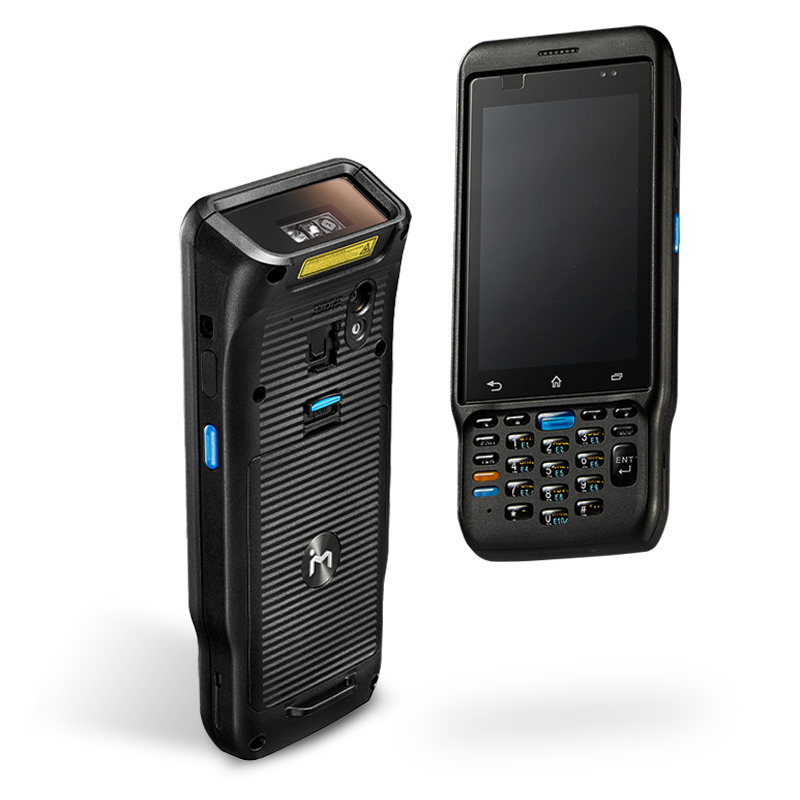

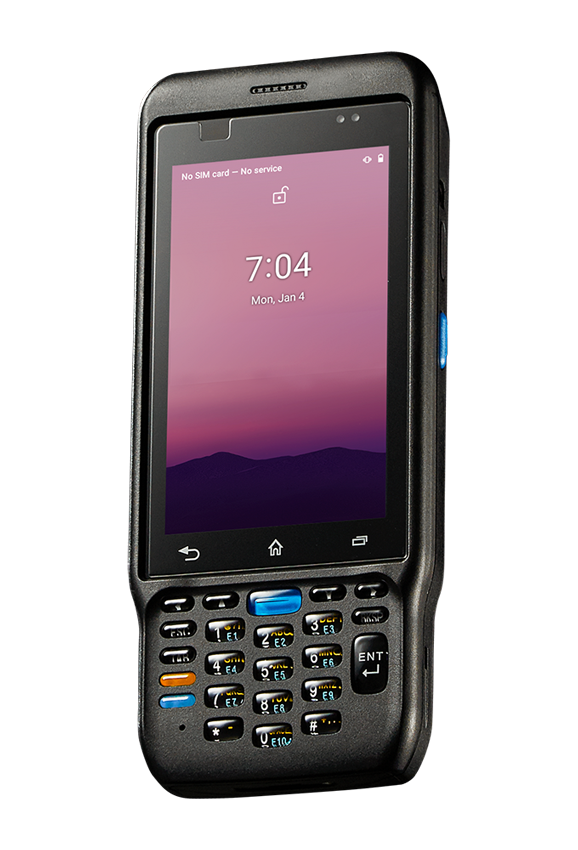

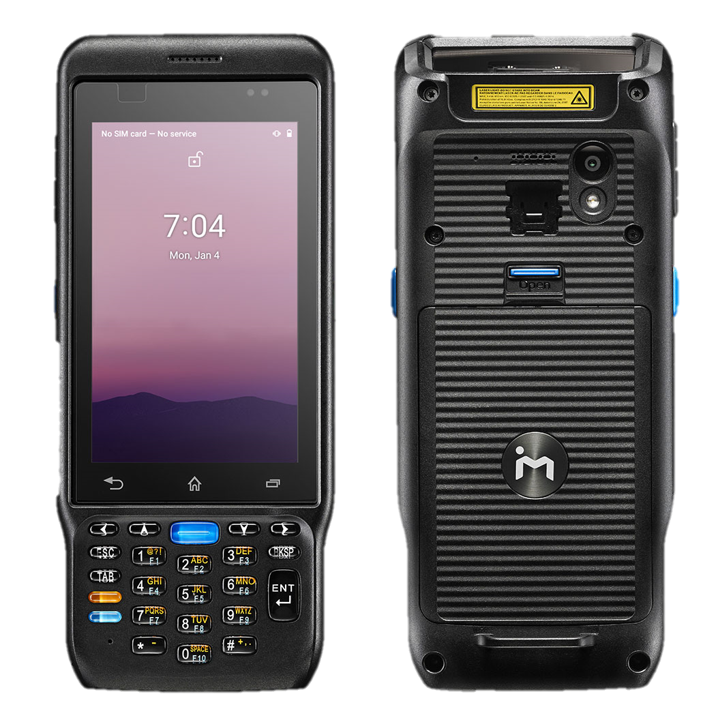

MC432

Rugged Android

Barcode Scanner with Keypad





PERFORMANCE CHARACTERISTICS

OPERATING SYSTEM             Android 10 with GMS
CPU
  • Qualcomm® Snapdragon™ 660
  • 2.2GHz Octa Core
MEMORY          eMCP 4GB LPDDR4x + 64GB eMMC 5.1

PHYSICAL CHARACTERISTICS

DIMENSIONS          181.55mm x 77mm x 23.2mm (main body) / 33.77mm (scanner)
WEIGHT          323g (with standard battery)
DISPLAY & PANEL
  • 4.3", WVGA (480x800) IPS LCM
  • Capacitive 5 points multi-touch panel, fingertip input
  • Wet finger, Glove
  • Gorilla® Glass
EXPANSION SLOTS
  • Micro SD card slot x 1 (with SDHC compliance and software image upgrade features)
  • Nano SIM slot x 1 (only for LTE version)
  • Type C supported USB OTG, display output and DC in 5V/3A
  • Cradle connector DC power input
KEYS AND BUTTONS
  • Virtual key x 3
  • Physical keypad type (23 keys) with white color backlight
  • Side key: Scan key x 2, Volume key x 2, Power key
NOTIFICATION
  • Vibration
  • Ring tone
  • LED behavior

              ➢ Charging - Charge: Red - Charge full: Green ➢ Scan - Scan Start: Red - Decoder: Green (Blinking once) ➢ Information - Battery swap: Red

AUDIO & VOICE
  • Speaker x 1 (95dB @ 10cm)
  • Receiver x 1, Dual noise-cancelling microphones x 1
  • 3.5mm DIA stereo head-set jack
SENSOR          Accelerometer, Gyroscope, e-Compass, Light Sensor, Proximity Sensor

POWER

BATTERY            Replaceable main battery: 3.85V/4000mAh
POWER ADAPTER
  • 100~240Vac, 50/60Hz Input
  • 5V/3A 15W, 9V/2A 18W output (QC3.0)

USER ENVIRONMENT

OPERATING TEMP.            20°C~50°C / -4~122°F
STORAGE TEMP.           -40°C~70°C / -40~158°F (w/o battery)
CHARGING TEMP.           0°C~45°C / 32~113°F
HUMIDITY           5%~90% (non-condensing)
SEALING STANDARD           IP65 Standard
DROP SPECIFICATION           1.8m MIL-STD 810G with boot and 1.6m MIL-STD 810G
TUMBLE SPECIFICATION           0.5m tumbles for 300 cycles and 600 drops
ESD           ±8KV contact discharge, ±15KV air discharge

NETWORK CONNECTION

WIRELESS PAN          Bluetooth 5.0
WIRELESS LAN
  • 802.11a/b/g/n/ac Wireless LAN, 2.4GHz and 5GHz
  • Compliant with WEP, WPA and IEEE 802.11i WPA2
  • Fast roaming
  • 2x2 MIMO
WIRELESS WAN (Only for LTE Version)
  • GSM: 850,900,1800,1900 MHz
  • WCDMA: B1, B2, B5, B8
  • LTE: B1, B2, B3, B4, B5, B7, B8, B12, (B17), B20, B28A, B28B, B38, B39, B40, B41
GPS          GPS, GLONASS, Beidou

DATA CAPTURE

SCAN ENGINE
  • Support 1D/2D
  • Scan engine:

                 - Honeywell N4603

                - Honeywell N6703 (Optional)

                - Datalogic H2 (Optional)

  • Scanning Angle: 30°
CAMERA
  • Rear camera: 16M pixels CMOS color camera with auto focus
  • LED flashlight
NFC
  • ISO14443-4 (Type A, Type B), ISO15693
  • Mifare, Felica (ISO/IEC18092)

REGULATORY COMPLIANCE

CERTIFICATION
  • CB, CE, UKCA, FCC/IC, NCC, NTC Class B
  • RoHS, REACH, WEEE, CP65

ACCESSORIES

ACCESSORIES
  • Adaptor
  • Data Cable (Type C)
  • LCM Protector
  • Hand Strap
  • Spare Battery (Optional)
  • Protective Boot (Optional)
  • Cradle (1 Terminal + 1 External Battery) (Optional)

COUNTRY OF ORIGIN

MADE INTAIWAN
