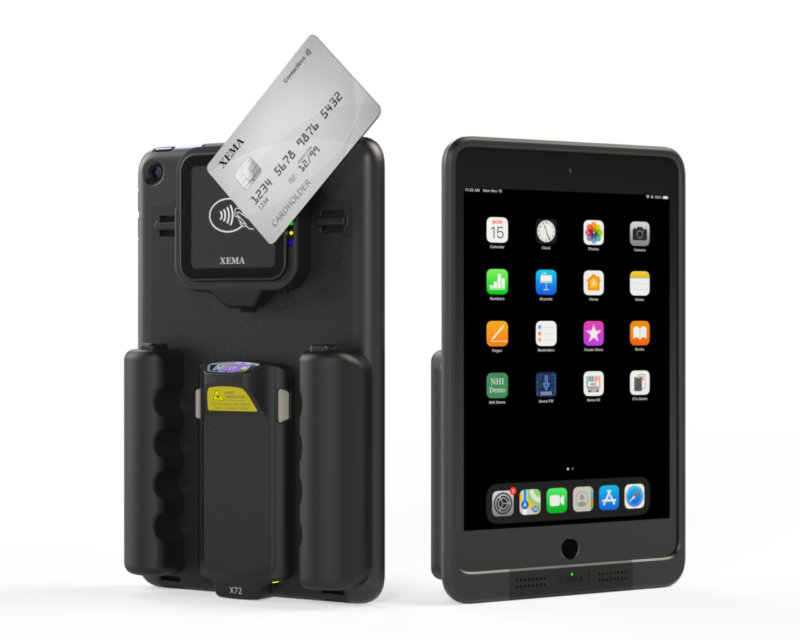

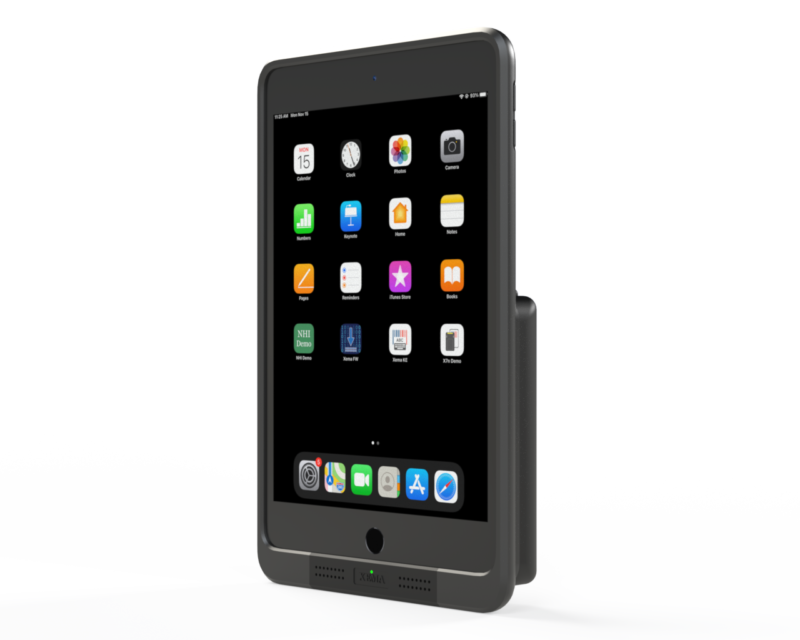

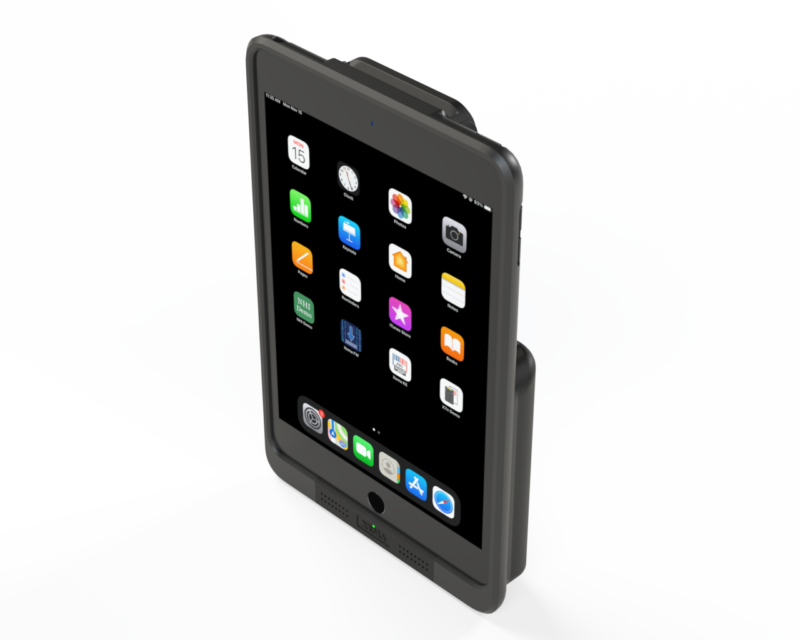

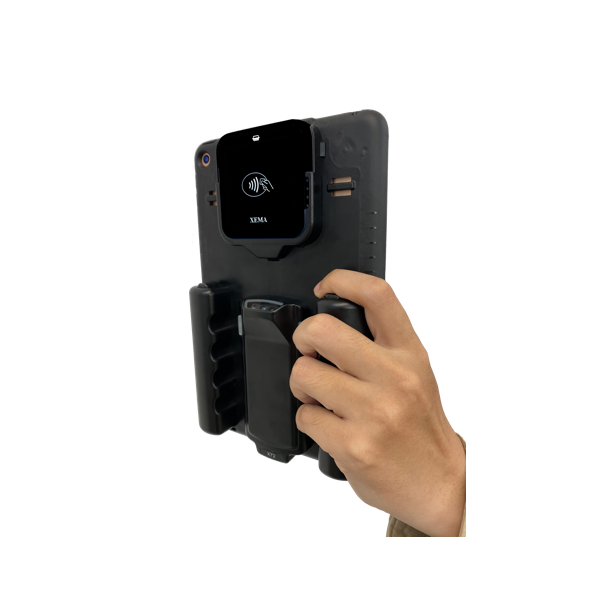

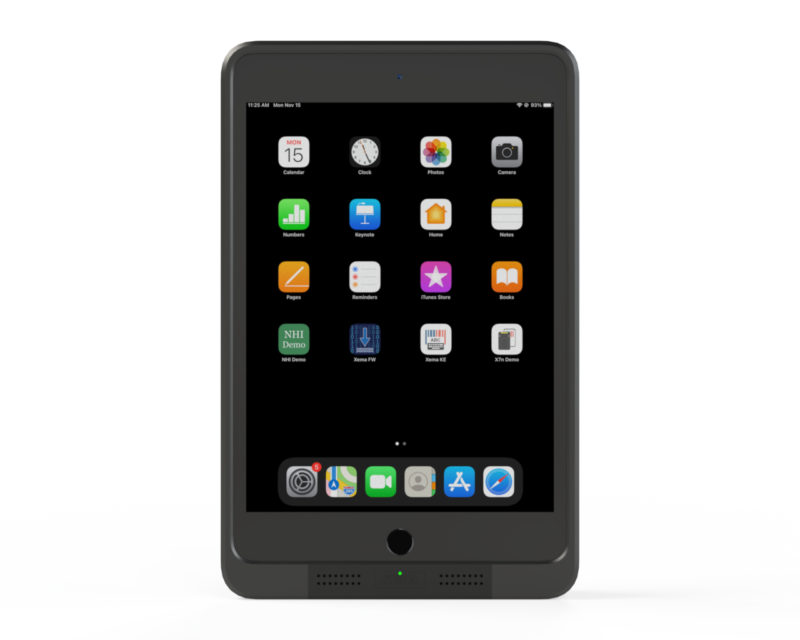

X72

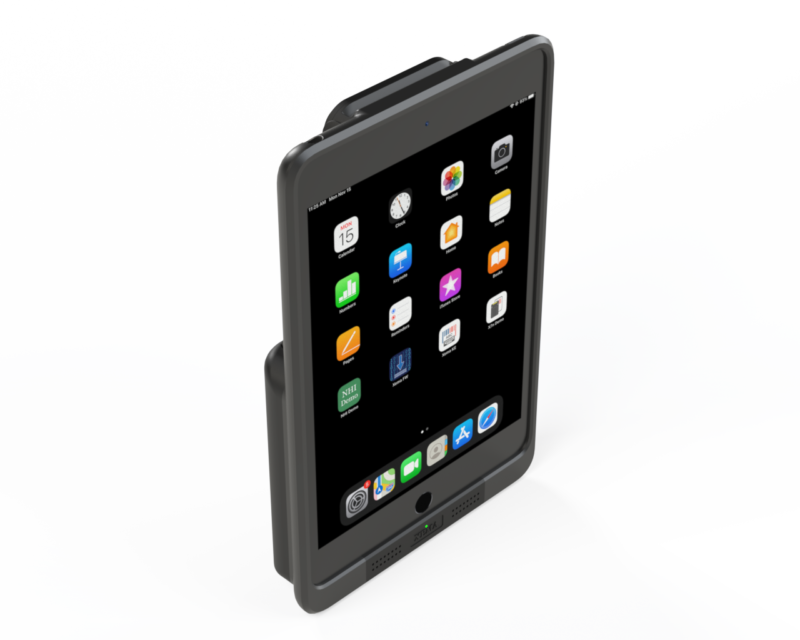

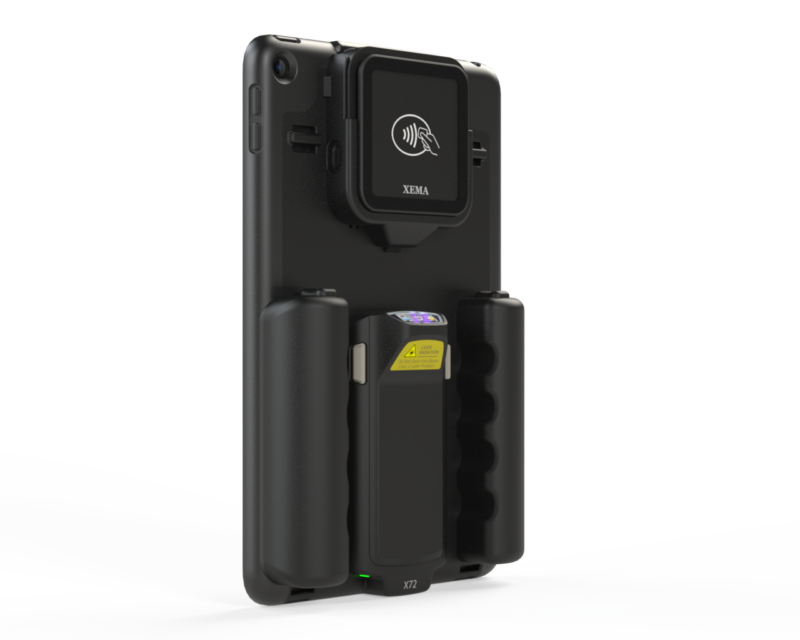

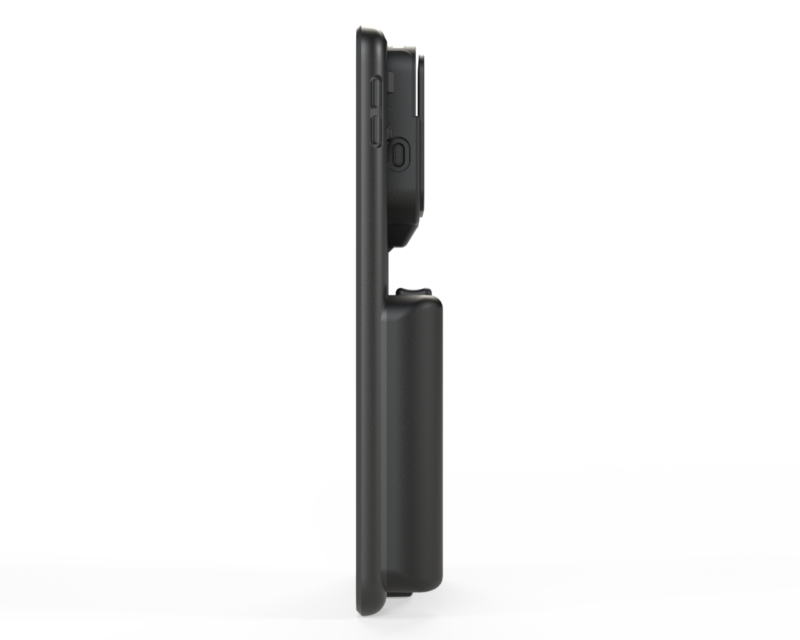

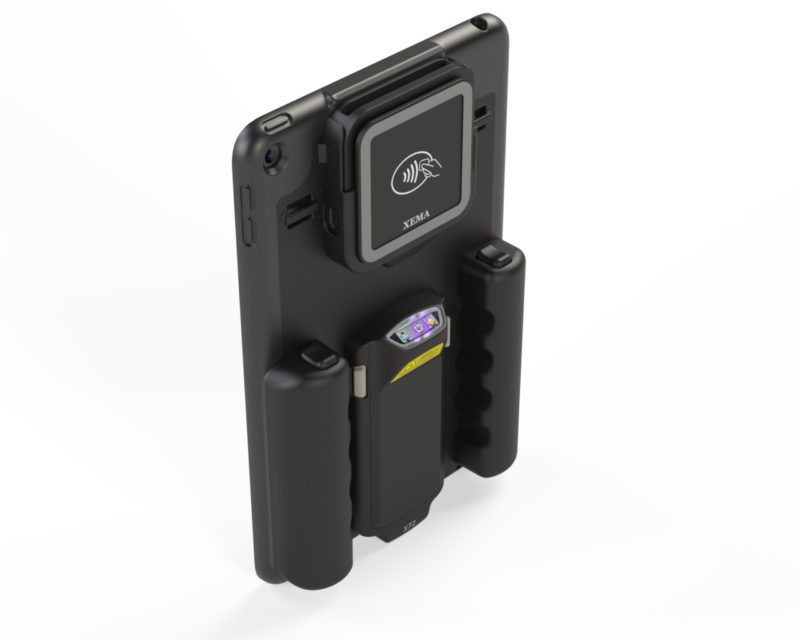

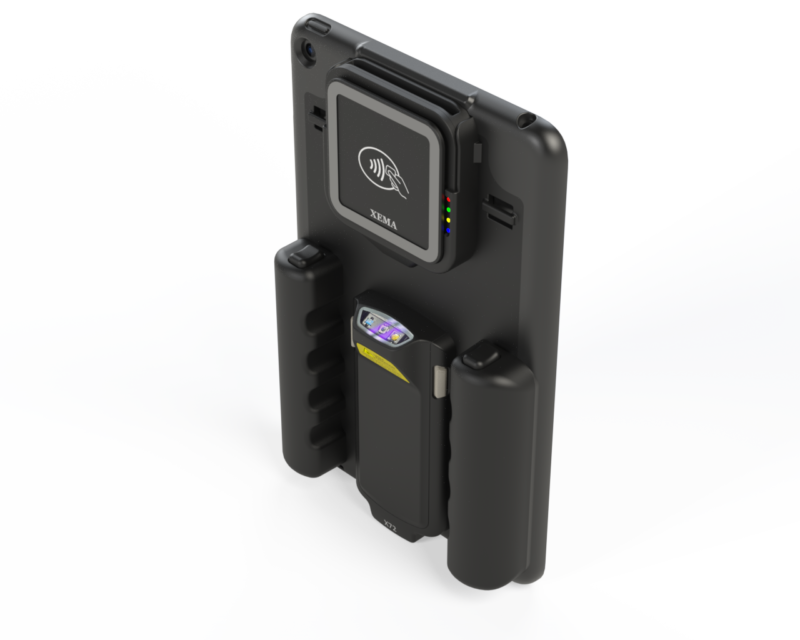

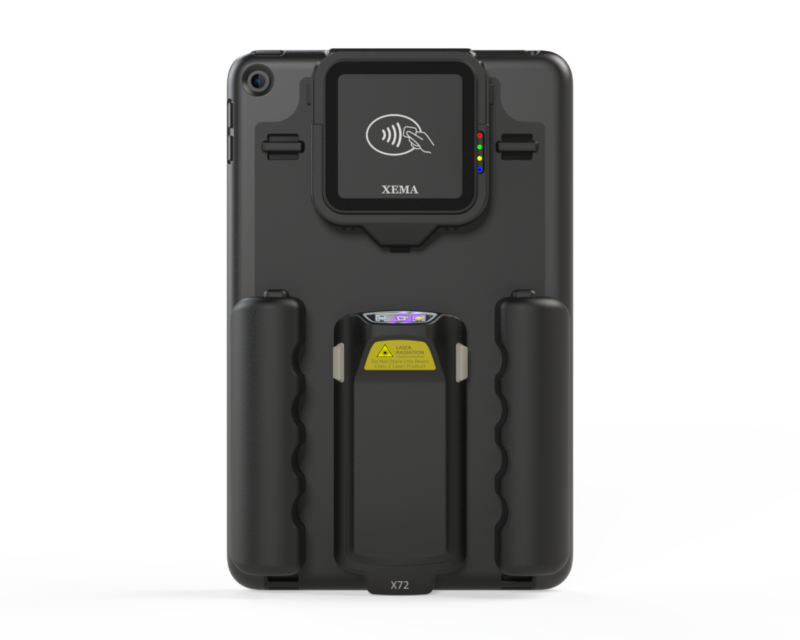

iPad Mini Payment POS



BARCODE SCANNER SPECIFICATIONS

SUPPORTED OSiOS, iPadOS
INTERFACESApple Lightning connector (MFi)
USB Type-C
BATTERYLi-ion, 3300 mAh
NUMBER OF SCAN> 50,000 scans/charge
POWER CONSUMPTION Peak 2W / Operation 1.4W, Idle 0.18W
CHARGING 5V/4A
BUTTONSFour scanning buttons
INDICATORSMultiple  color LEDs
BARCODE TYPESUPC/EAN/JAN, GS1 DataBar, Code 39,
Code 128, Code 32, Code 93, Codabar/NW7,
Interleaved 2 of 5, Code 2 of 5, Matrix 2 of 5,
MSI, Telepen, Trioptic, China Post

QR Code, Micro QR Code, PDF417, MicroPDF417,
GS1 Composite, Aztec Code, Data Matrix,
MaxiCode, Han Xin Code

Postal: Intelligent Mail Barcode, Postal-4i,
Australian Post, British Post, Canadian Post,
Japanese Post, Netherlands (KIX) Post, Postnet,
Planet Code

OCR Option: OCR-A, OCR-B, E13B (MICR)
CERTIFICATIONS Battery:
IEC 62133: 2012 (Second Edition)

EMC / EMI:
FCC, Part 15 Subpart B
ICE-003
KN32, KN35
KN61000-4-* (IEC61000-4-*)

Safety:
IEC 60825-1 Ed 2 (2007)
OPERATION Discharge: -10~40°C / 14~103°F
Charge: 0~40°C / 32~103°F

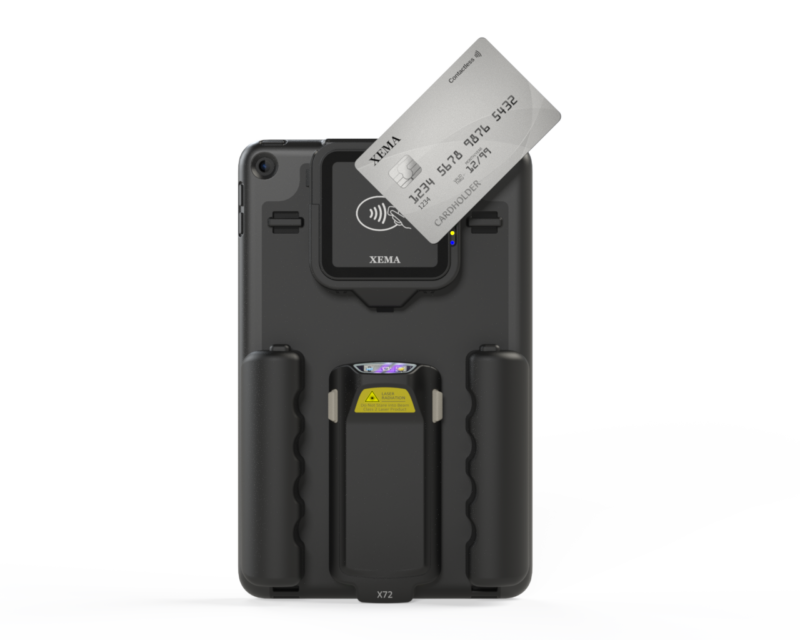

CARD READER SPECIFICATIONS

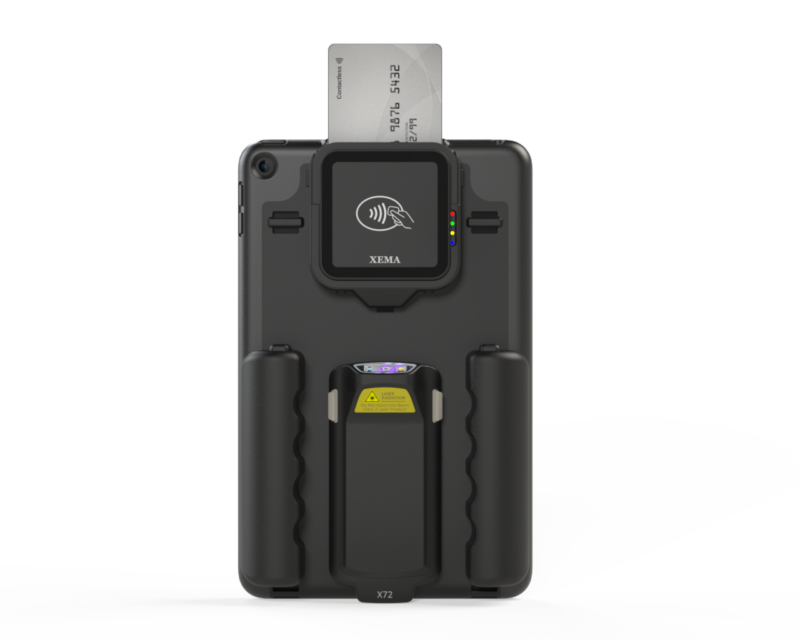

FEATURES EMV Smartcard Reader
NFC Card Reader

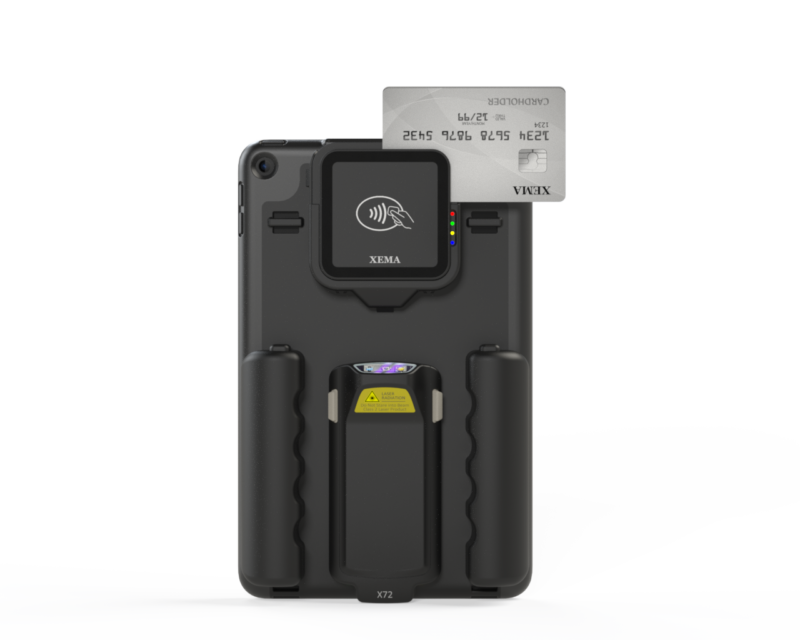

MSR with Track 1/2/3
PROCESSOR 32 Bit ARM CPU
MEMORY 96KB SRAM, 512KB FLASH
CERTIFICATIONS PCI PTS 5.x
EMV Contact L1 & L2
EMV Contactless L1 & L2
Visa payWave
Mastercard Contactless
Mastercard TQM
ENCRYPTION 3DES, DES, AES, RSA
KEY MANAGEMENT DUKPT
OPERATING LIFE Smartcard Reader is up to 200,000 cycles
MSR is up to 200,000 cycles
