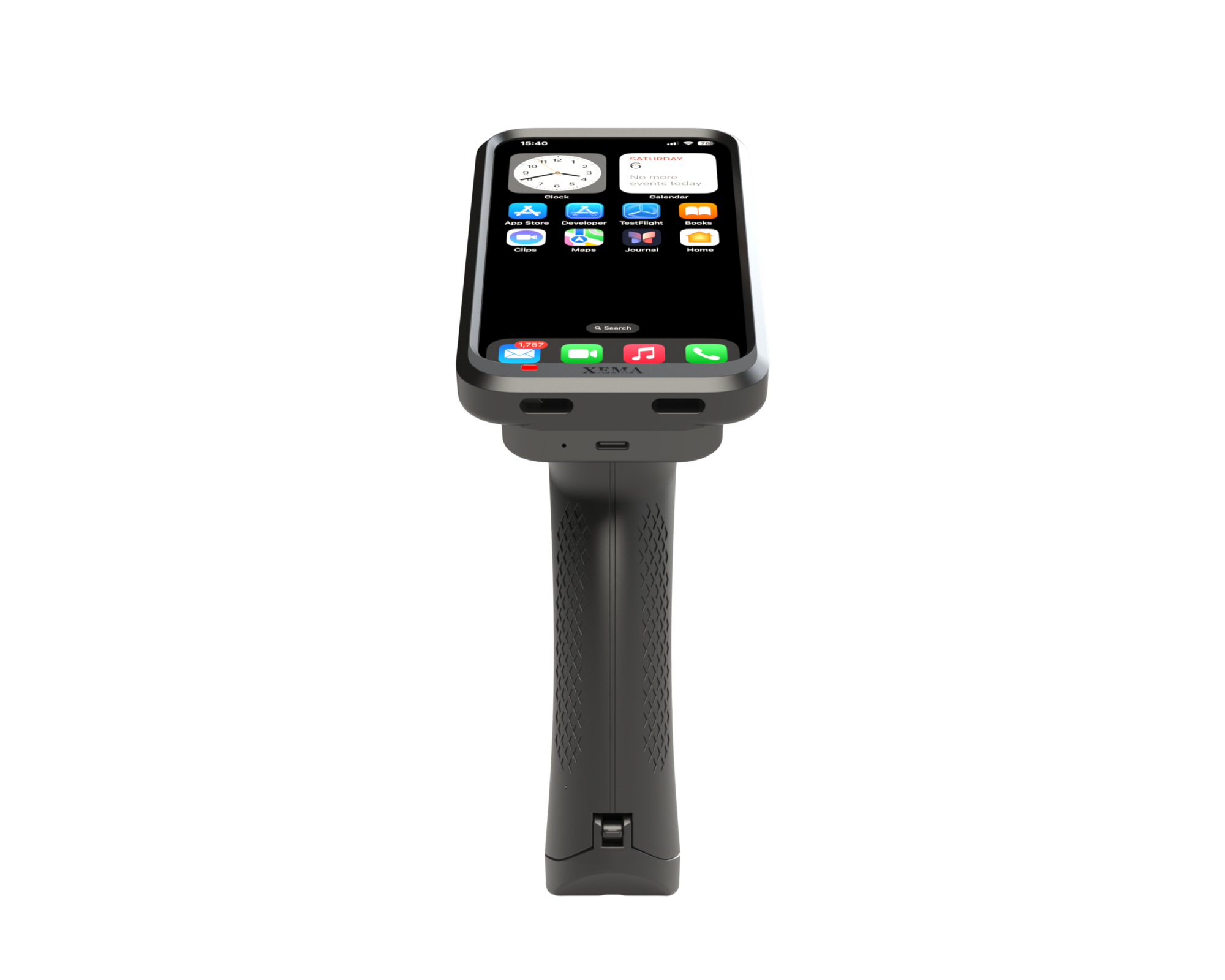

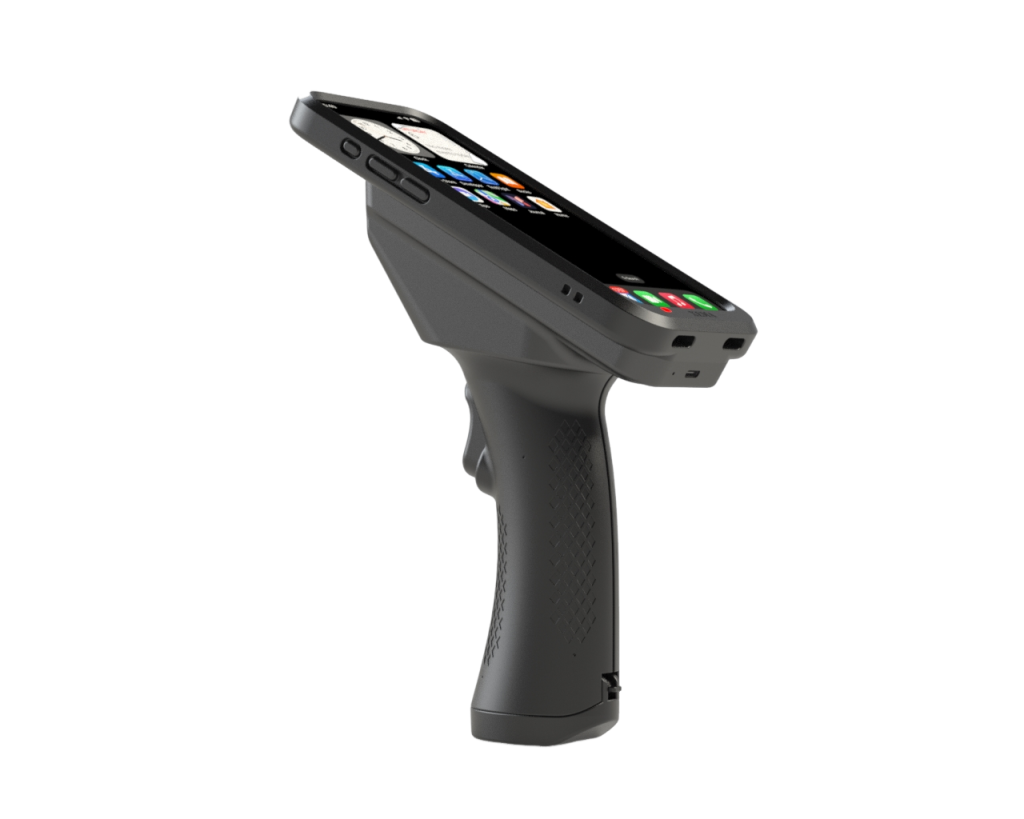

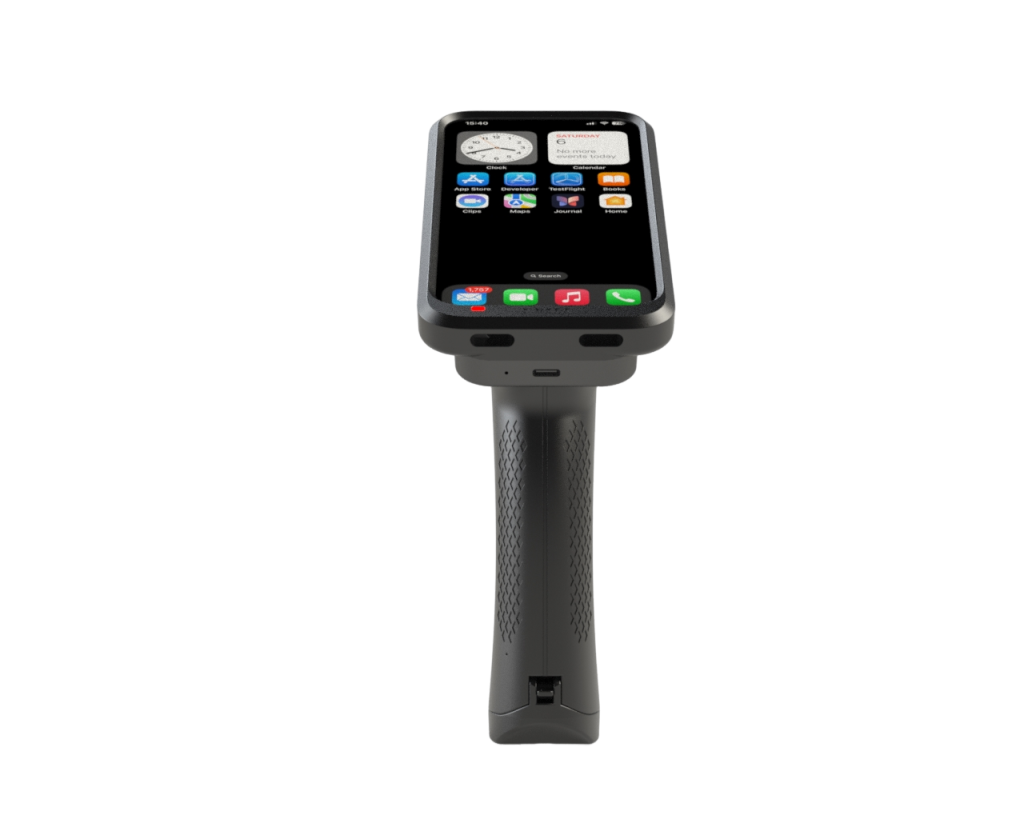

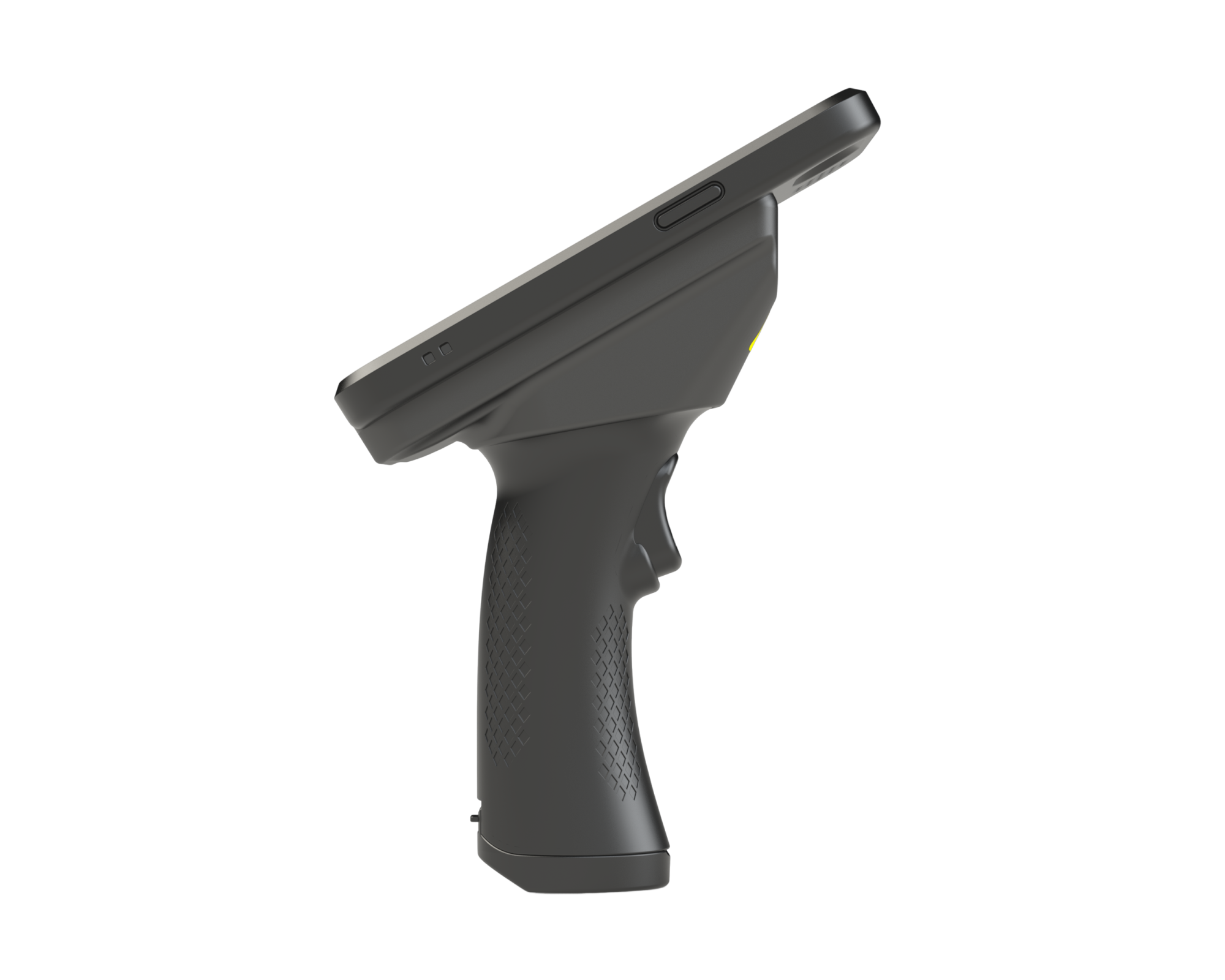

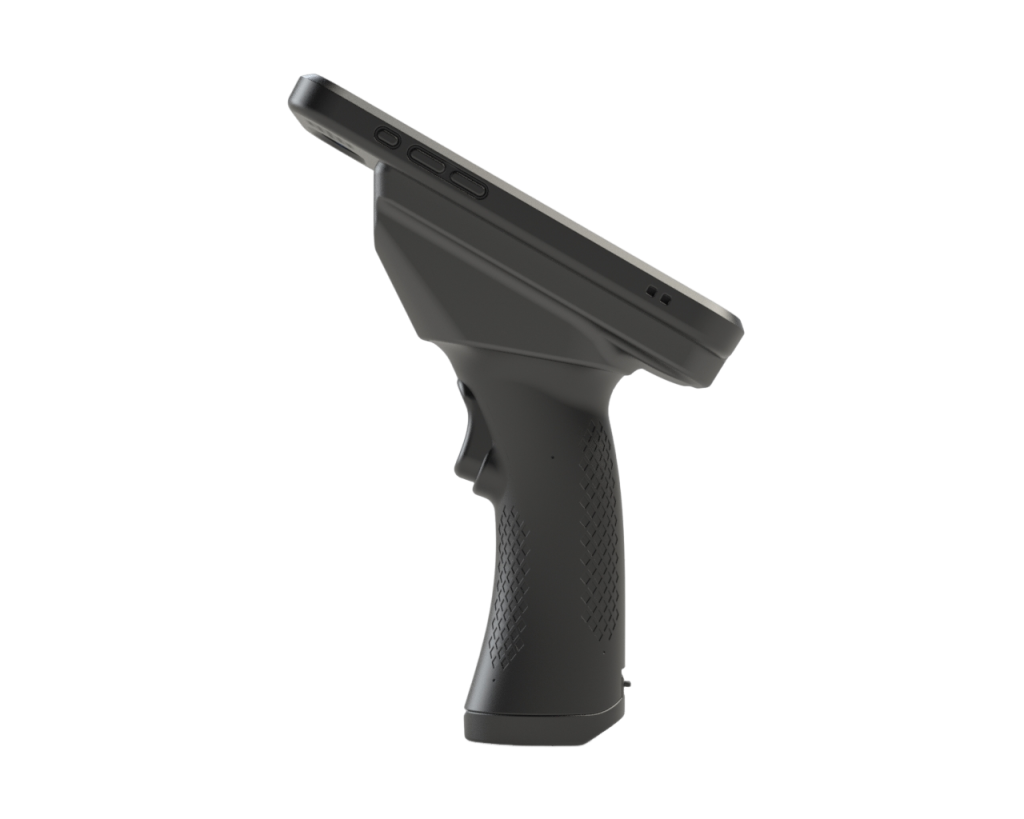

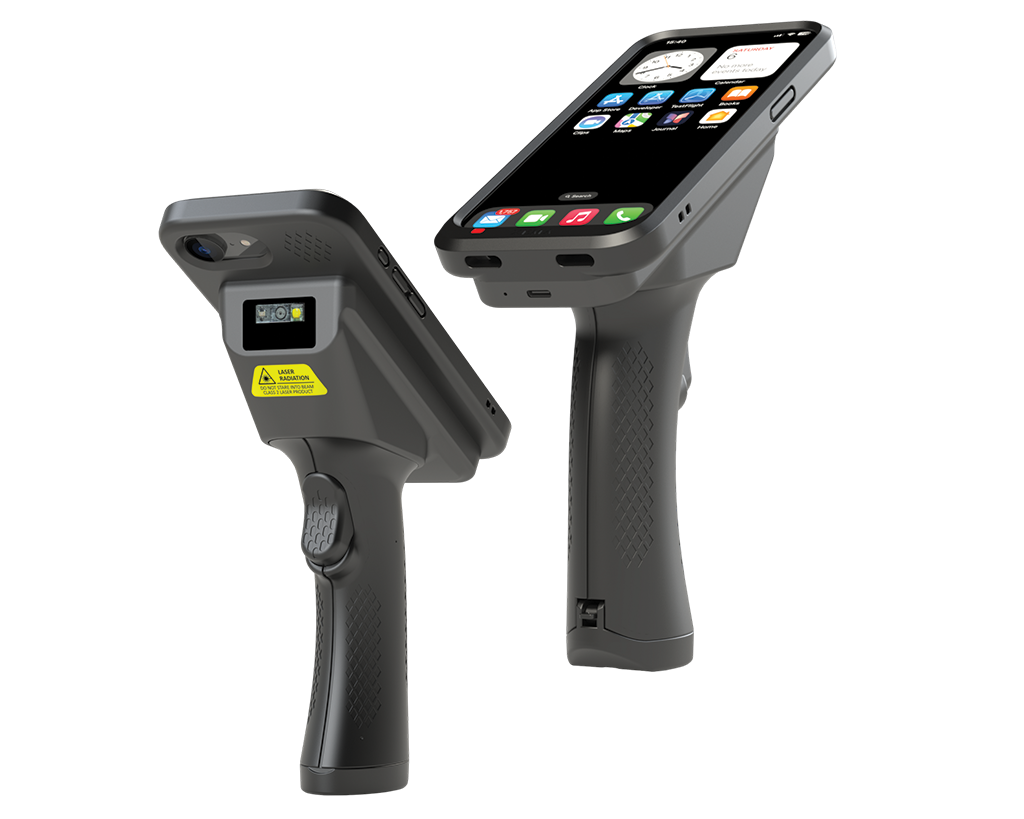

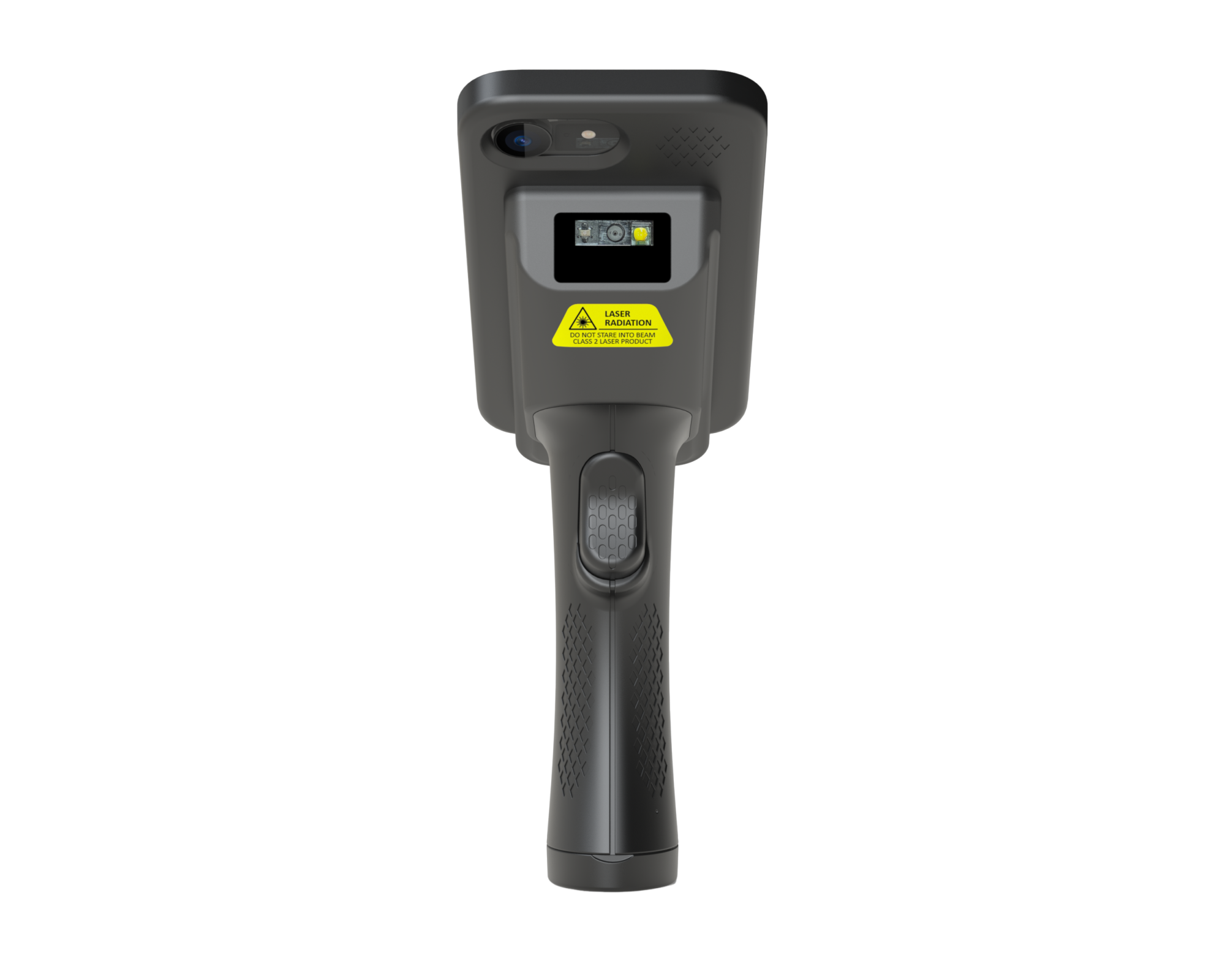

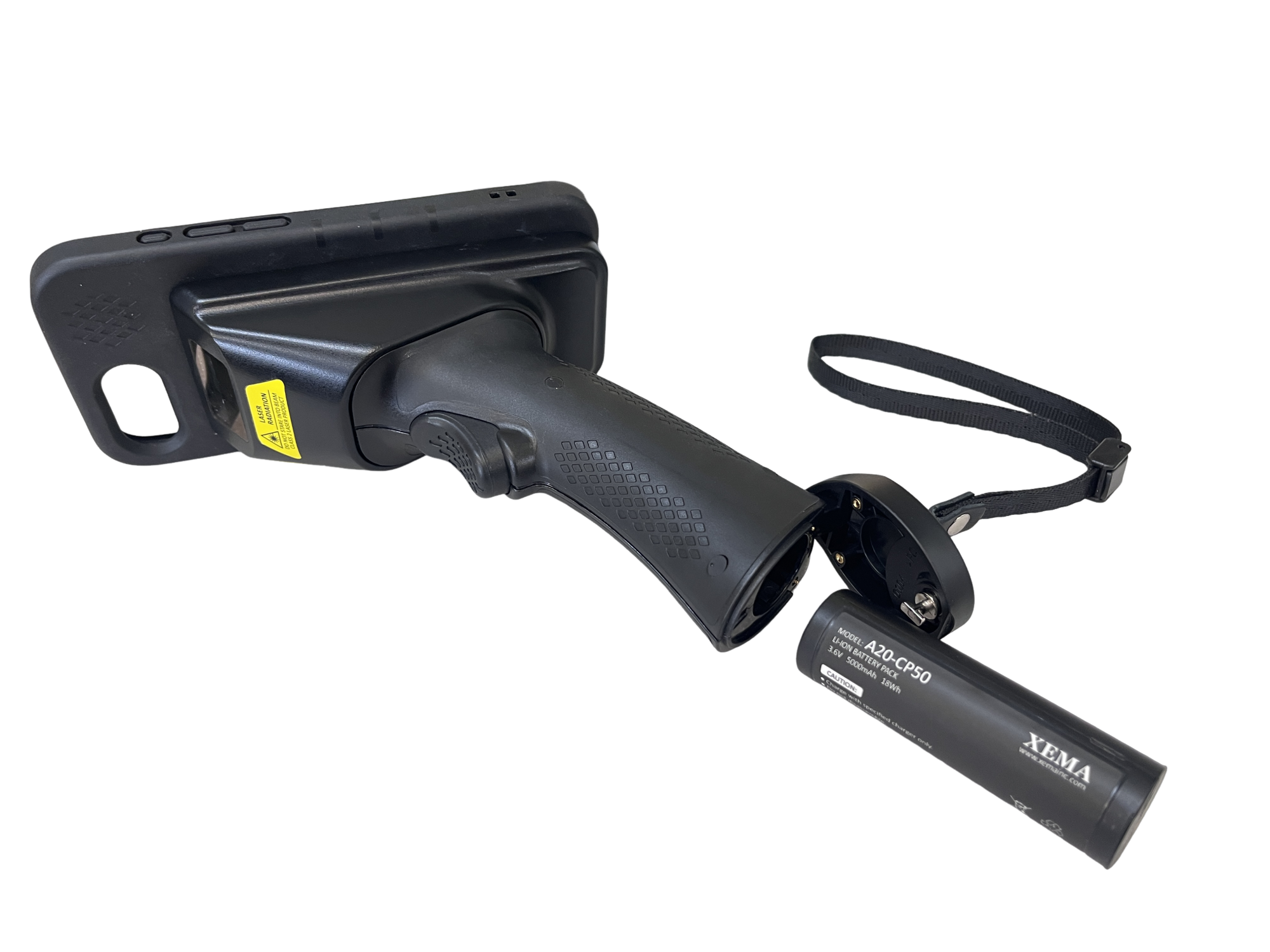

| X75 |

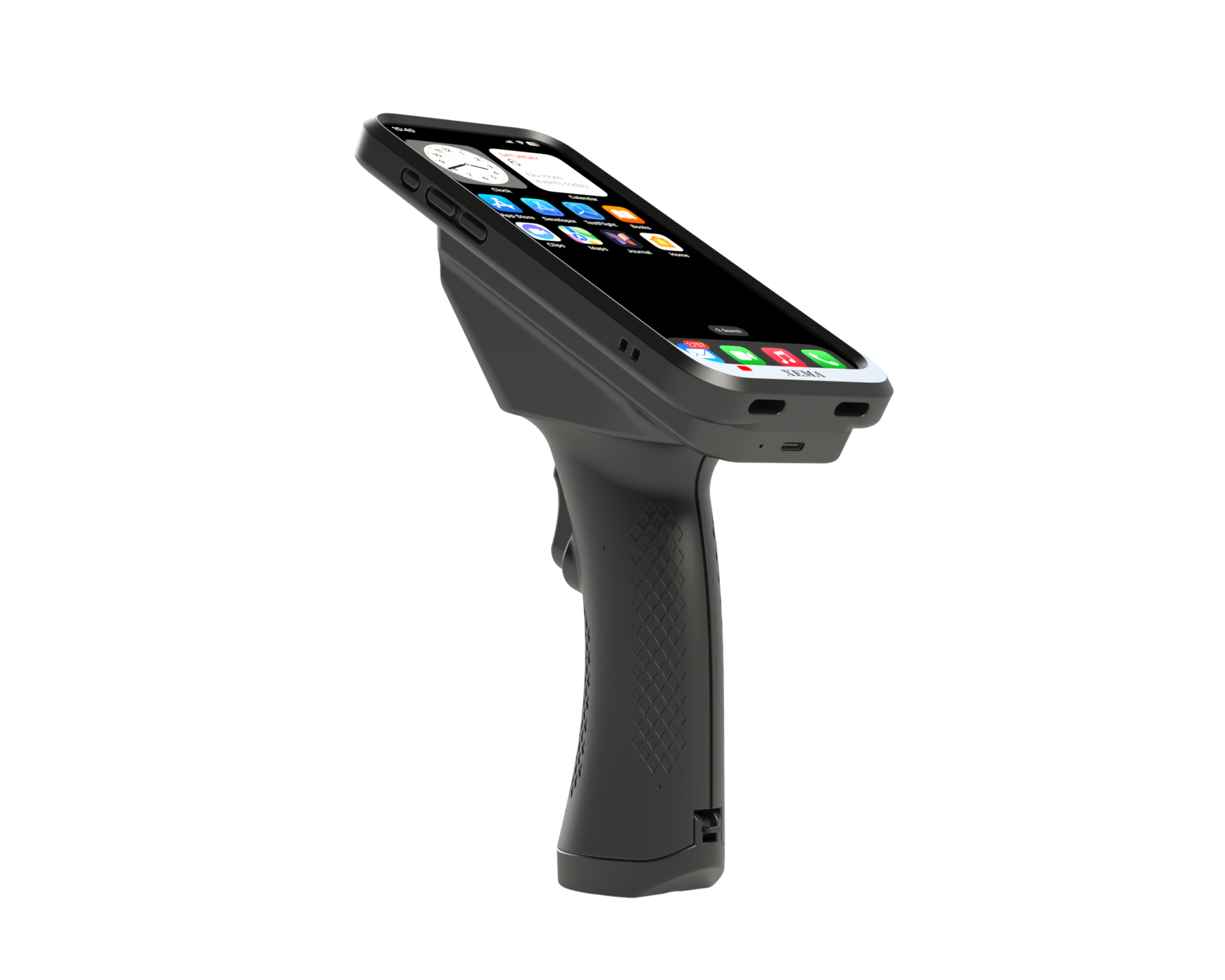

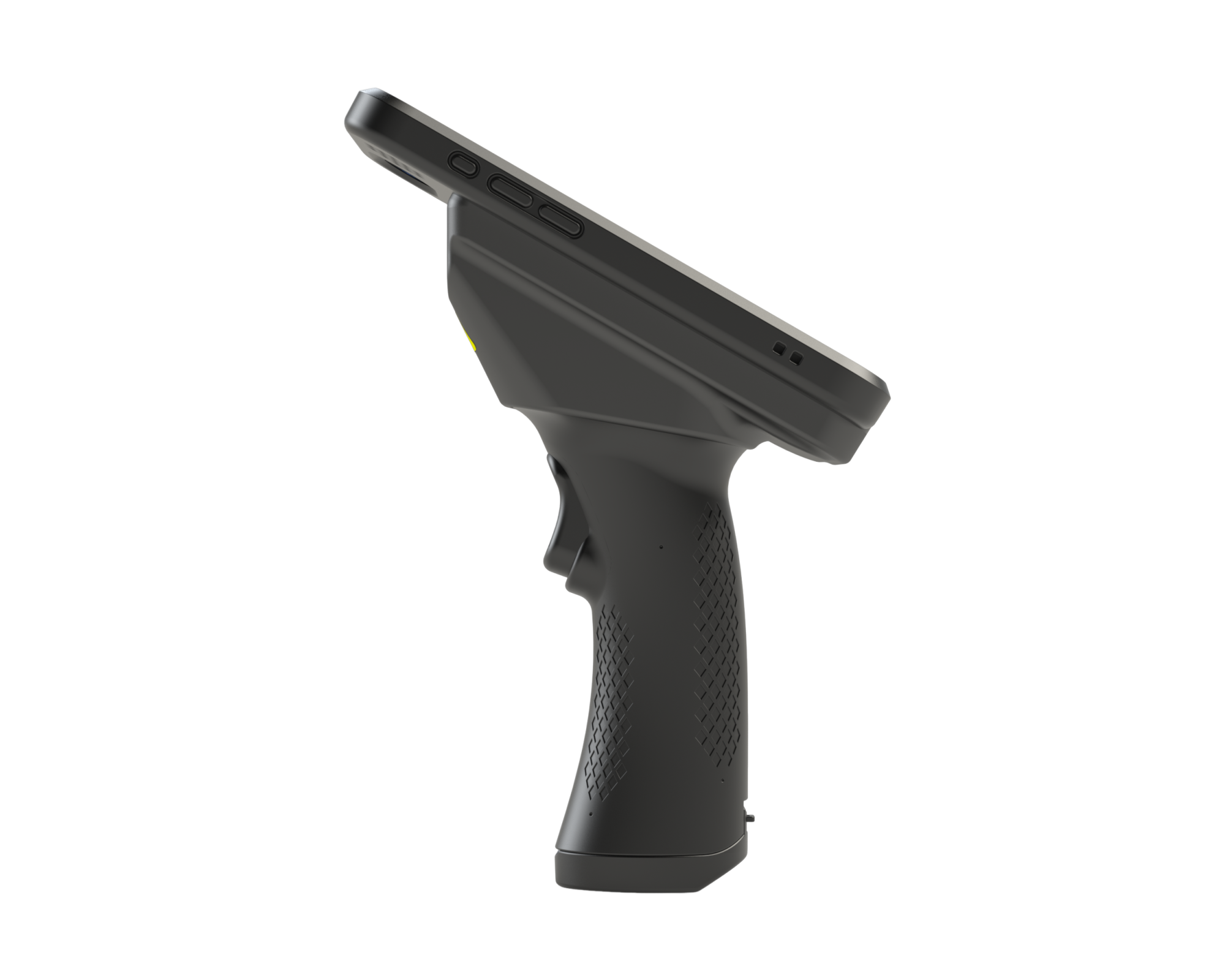

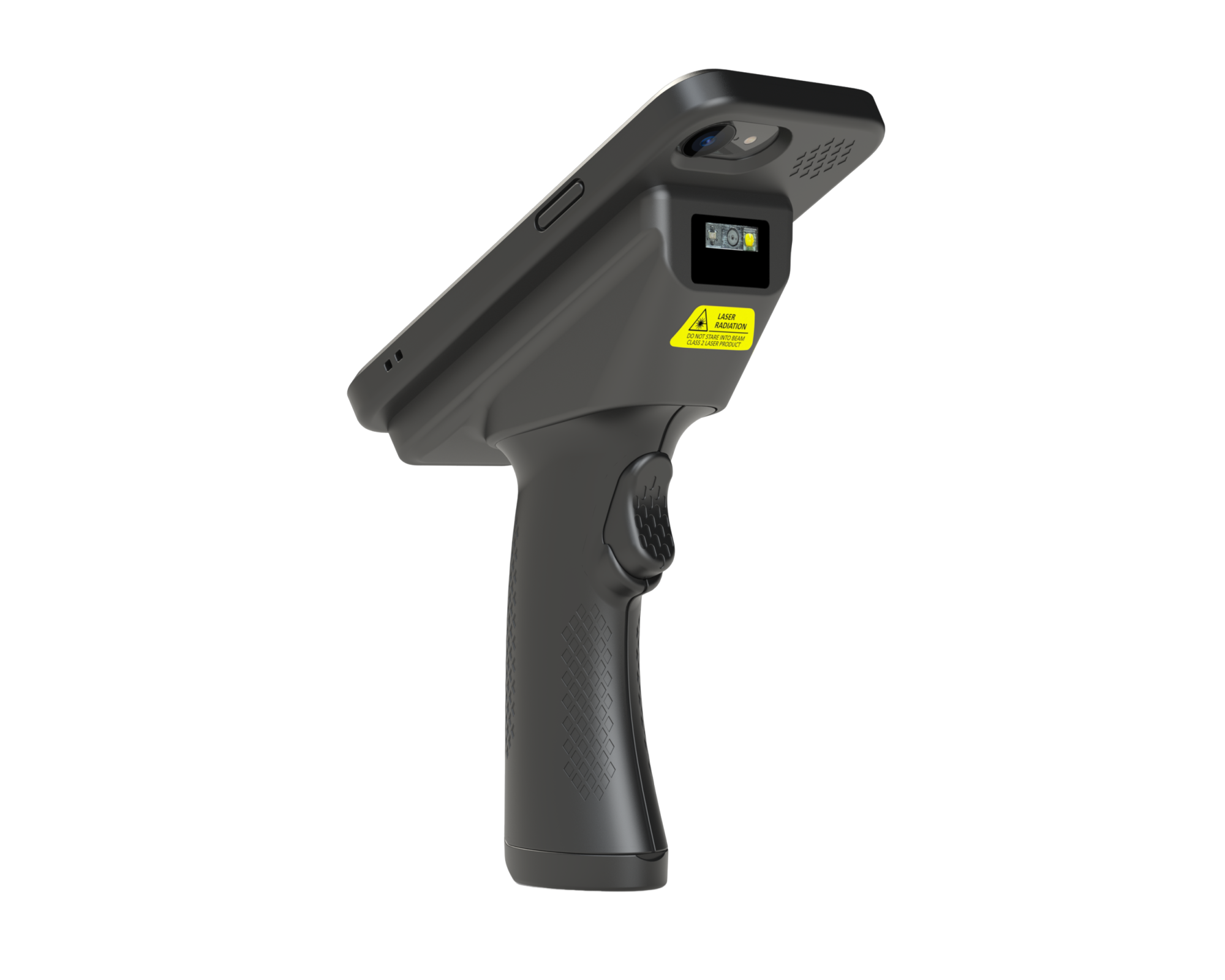

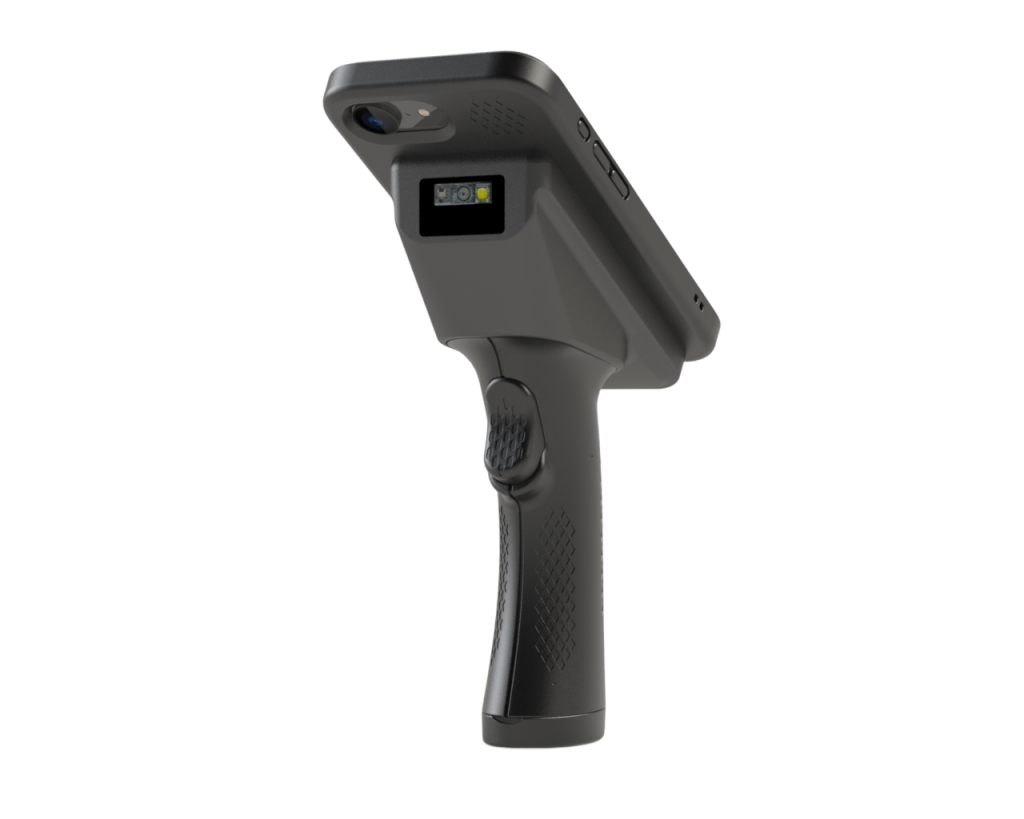

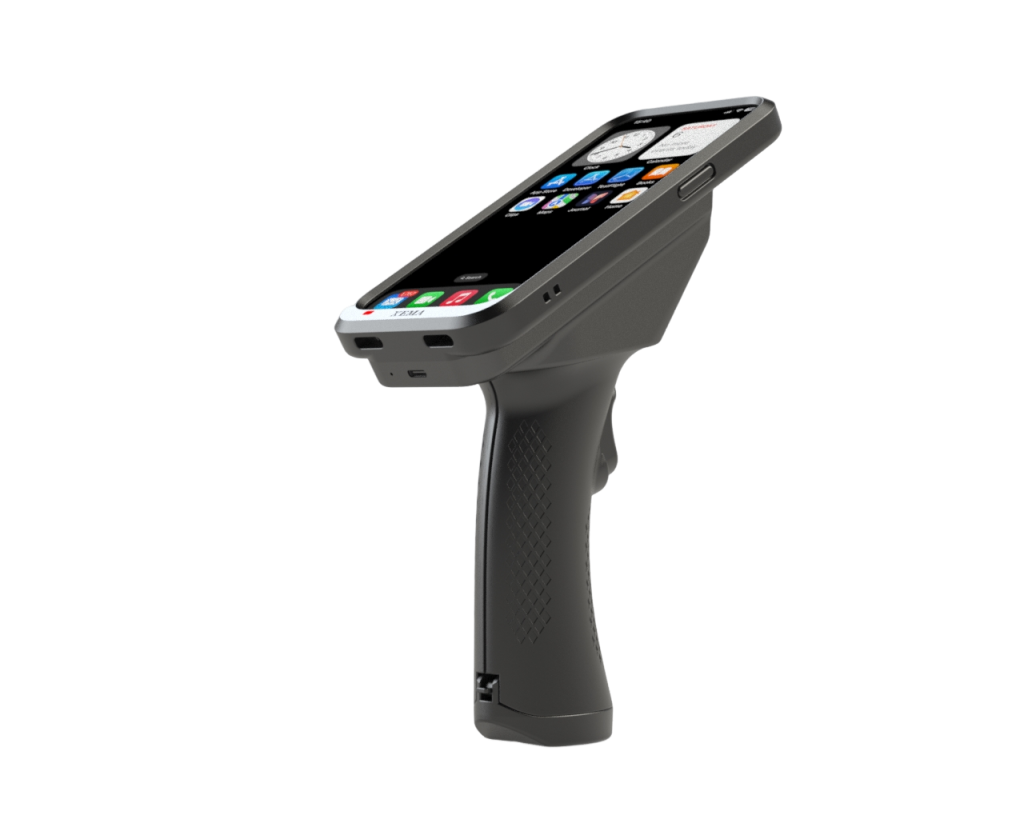

| iPhone RFID/Barcode Scanner |
 |
 |
 |
SUPPORTED DEVICE
| Supported Device | iPhone 16e |
| Interface | USB Type-C |
RFID CHARACTERISTICS
| RF Engine | XEMA M83 module with Impinj E310 die inside |
| Air Protocols | ISO 18000-63 (EPC Class1 Gen2 v2) |
| Frequency Range |
902-928 MHz (FCC Part 15.247) 865-868 MHz (ETSI EN 302 208) Japan, Taiwan, and other worldwide regions |
| RF Power Output | Up to 28 dBm |
| RX Sensitivity | < -70 dBm |
| Fastest Read Rate | 300 tags/s |
| Nominal Read Range | ~3 m (~9.84 ft.) |
BARCODE SPECIFICATIONS
| Sensor Resolution | 1280 x 800 pixels global shutter |
| Aimer | Cross target red laser |
| Illumination | White LED |
| Number of Scan | > 30,000 scans/charge |
|
Symbology 13 mil UPC 5 mil Code 39 10 mil Code 39 20 mil Code 39 15 mil Code 128 6.7 mil PDF 417 10 mil Data Matrix 15 mil QR |
Reading Distance mm [ in ] 573 [22.5] 301 [11.9] 517 [20.3] 800 [31.5] 650 [25.6] 244 [9.6] 297 [11.7] 414 [16.3] |
PHYSICAL & ENVIRONMENTAL CHARACTERISTICS
| Dimensions |
143 x 211 x 78 (mm) 5.6 x 8.3 x 3.1 (in) |
| Weight | 298 gr / 10.5 oz with battery |
| Battery | Li-ion, 5,000 mAh, Removable |
| Charging | Type-C PD 3.0 and Pogo Pin (Docking Charger) |
| Indicators |
RFID/Barcode read buzzer Battery charging LED |
| Buttons | Single trigger button |
| Operating Temp. | -10°C to 50°C/14°F to 122°F |
| Storage Temp. | -40°C to 70°C/-40°F to 158°F |
| Humidity | 5%-85% non-condensing |
| IP Rating | IP65 |
ORDER INFORMATION
| P/N | Description |
| X75-P16B | Barcode Pistol Grip for iPhone 16e, 2D |
| X75-P16R-USN | UHF RFID Pistol Grip for iPhone 16e, FCC |
| X75-P16R-EUN | UHF RFID Pistol Grip for iPhone 16e, ETSI |

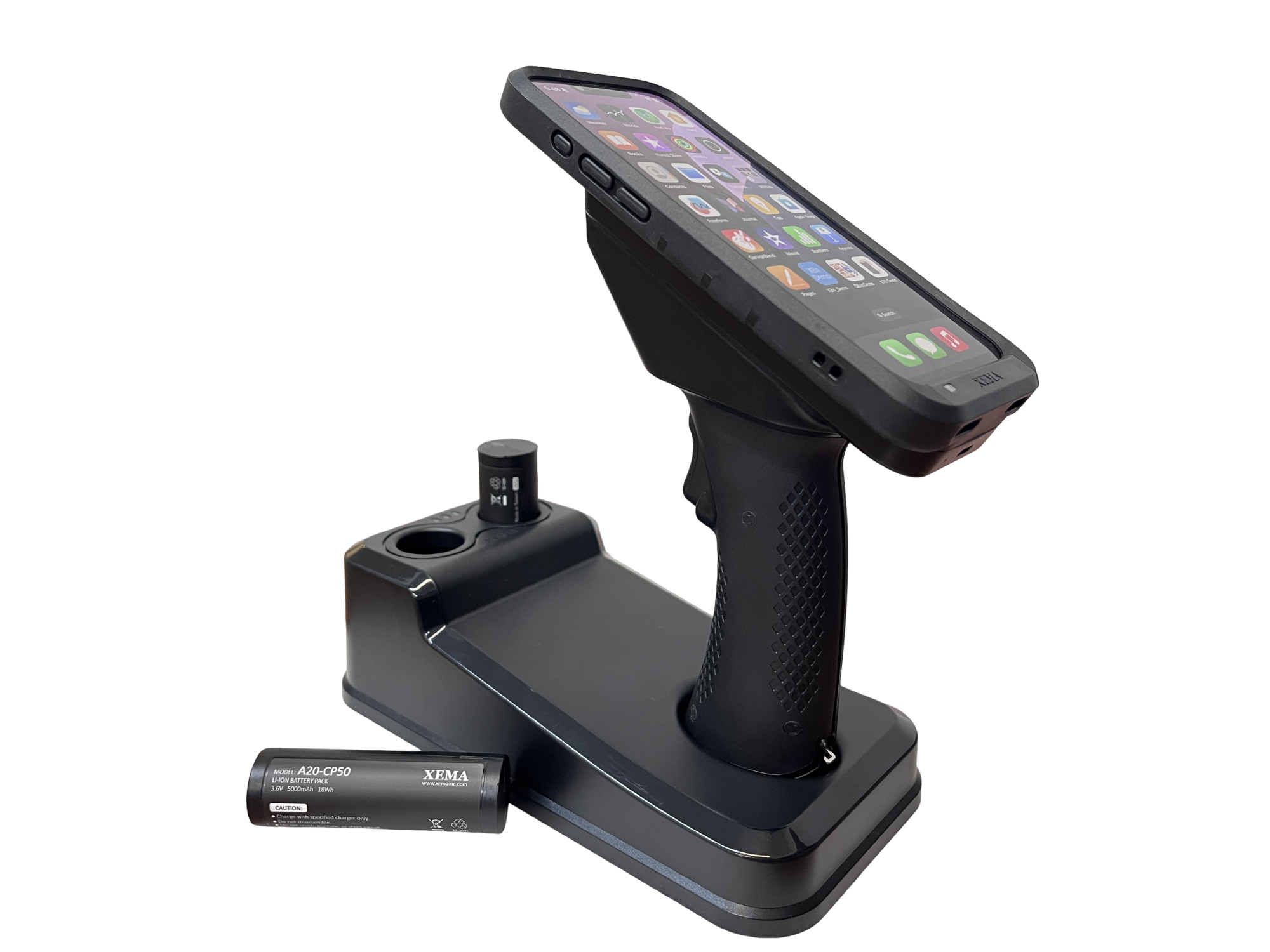

| A10-X80P | Docking Charger w/ 2-Pack A20-CP50 Battery |

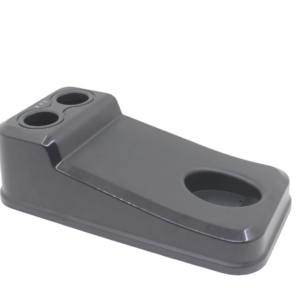

| A10-X80S | Docking Charger |

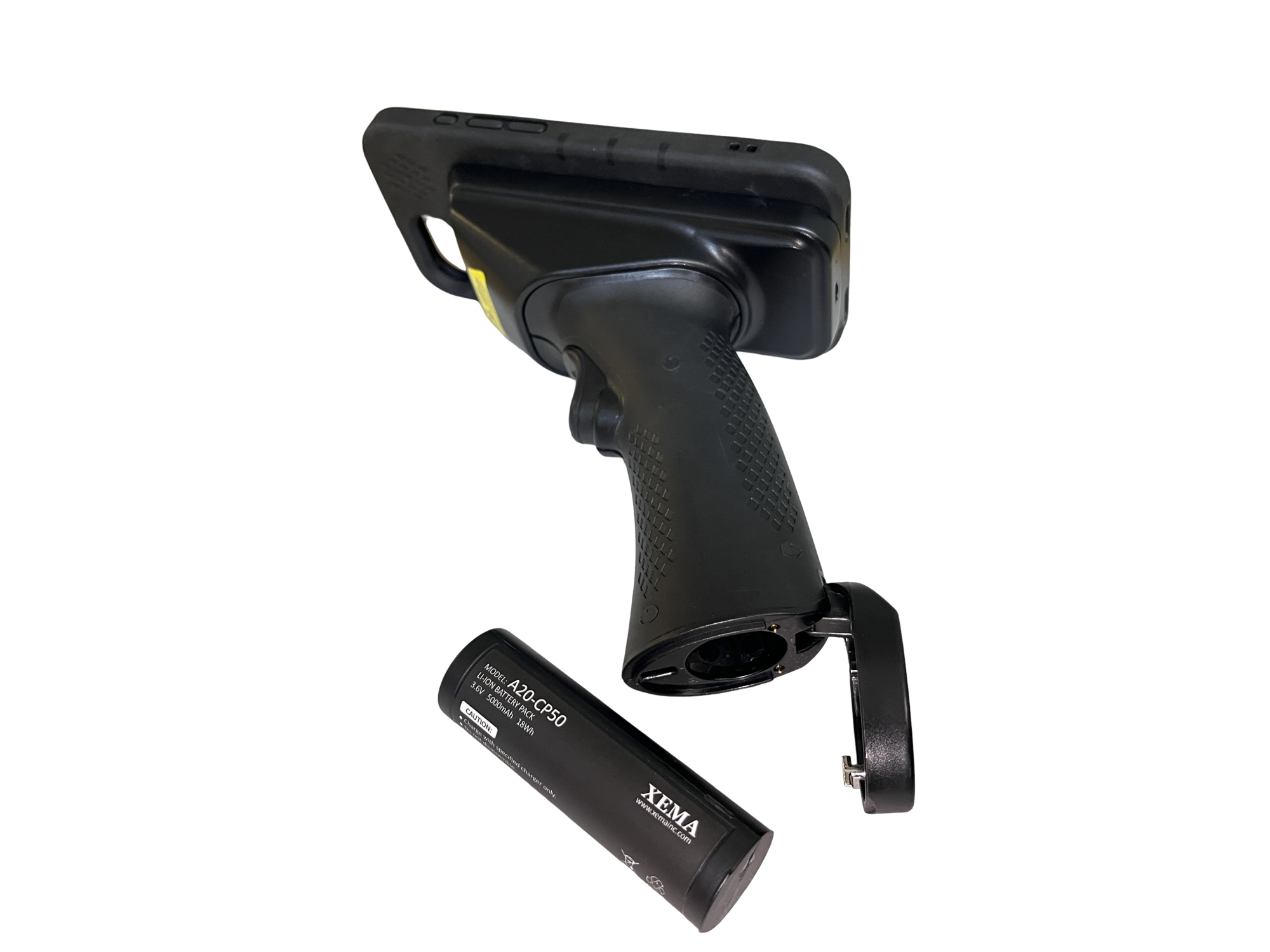

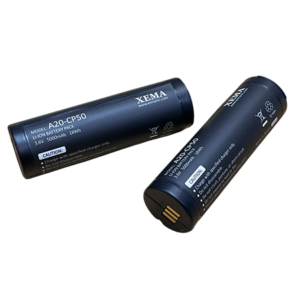

| A20-CP50 | Battery Pack, 3.6V 5000mAh |
