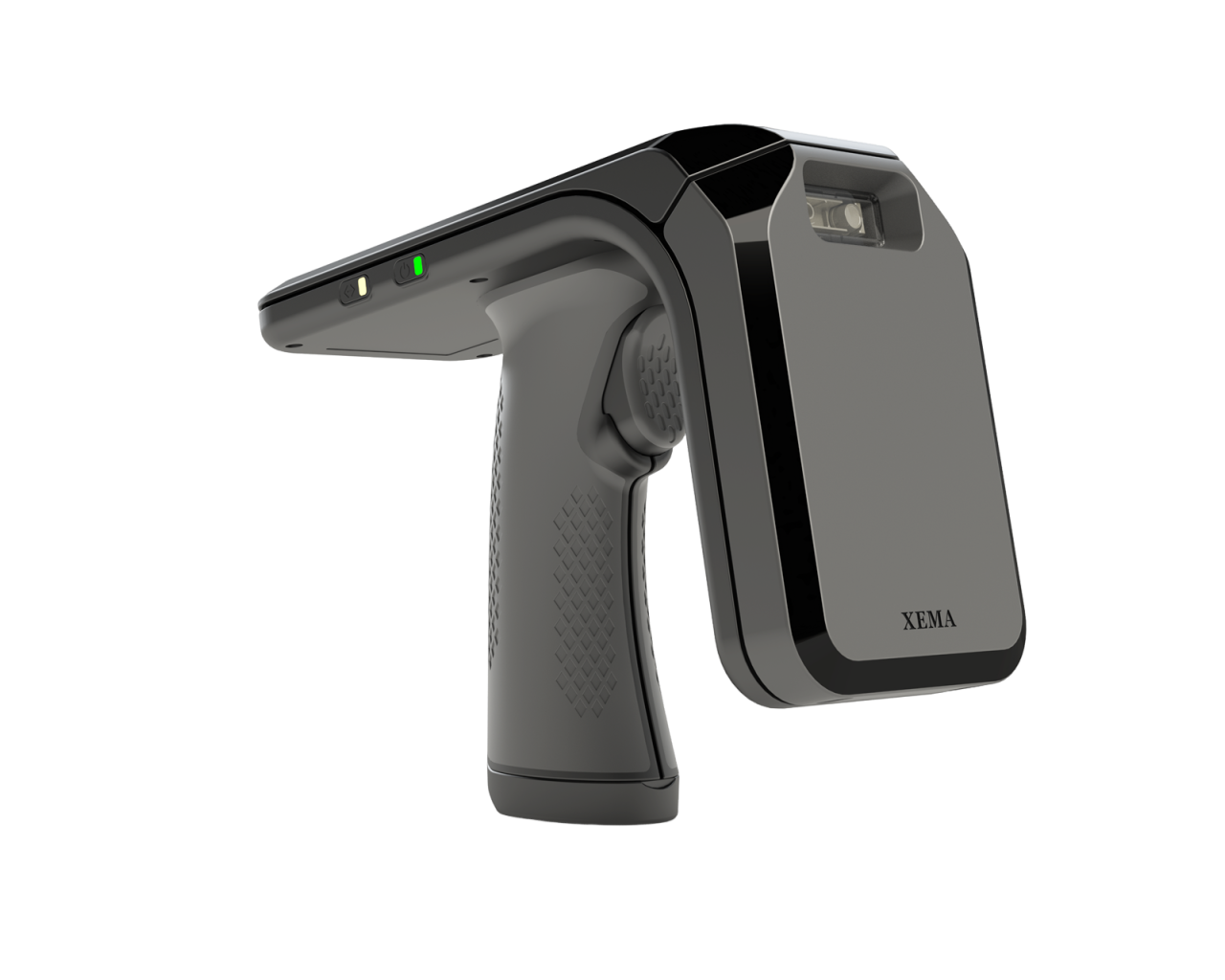

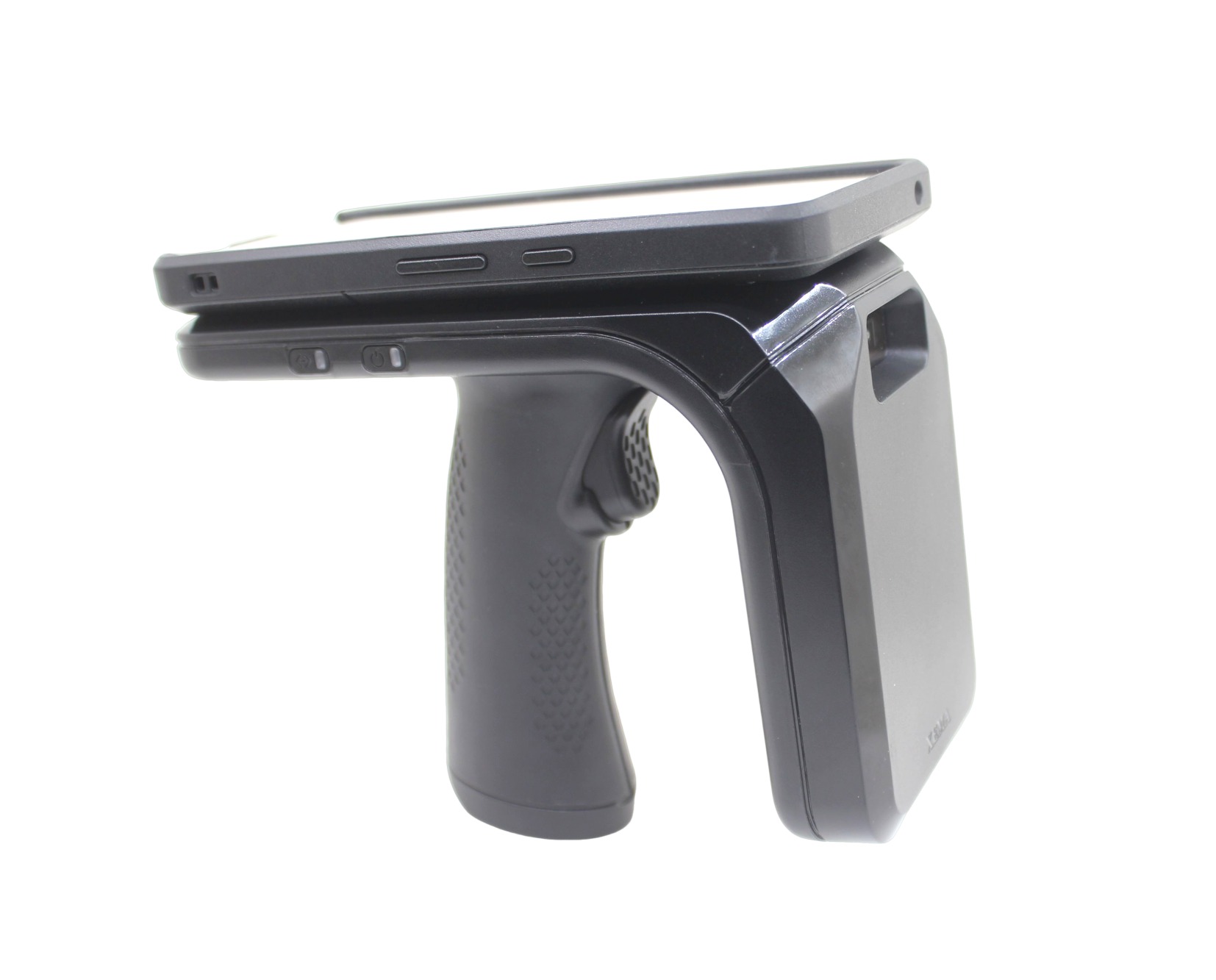

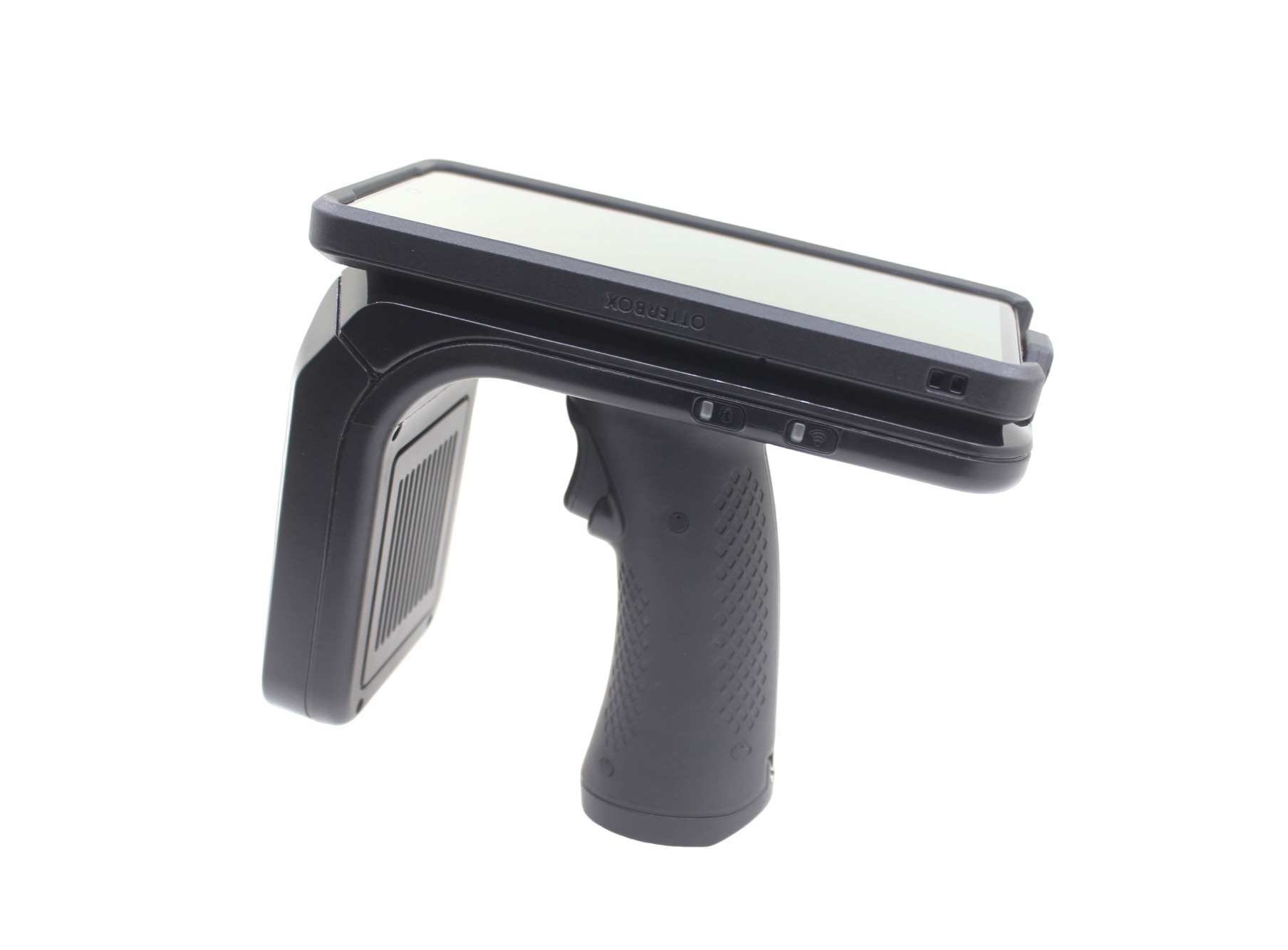

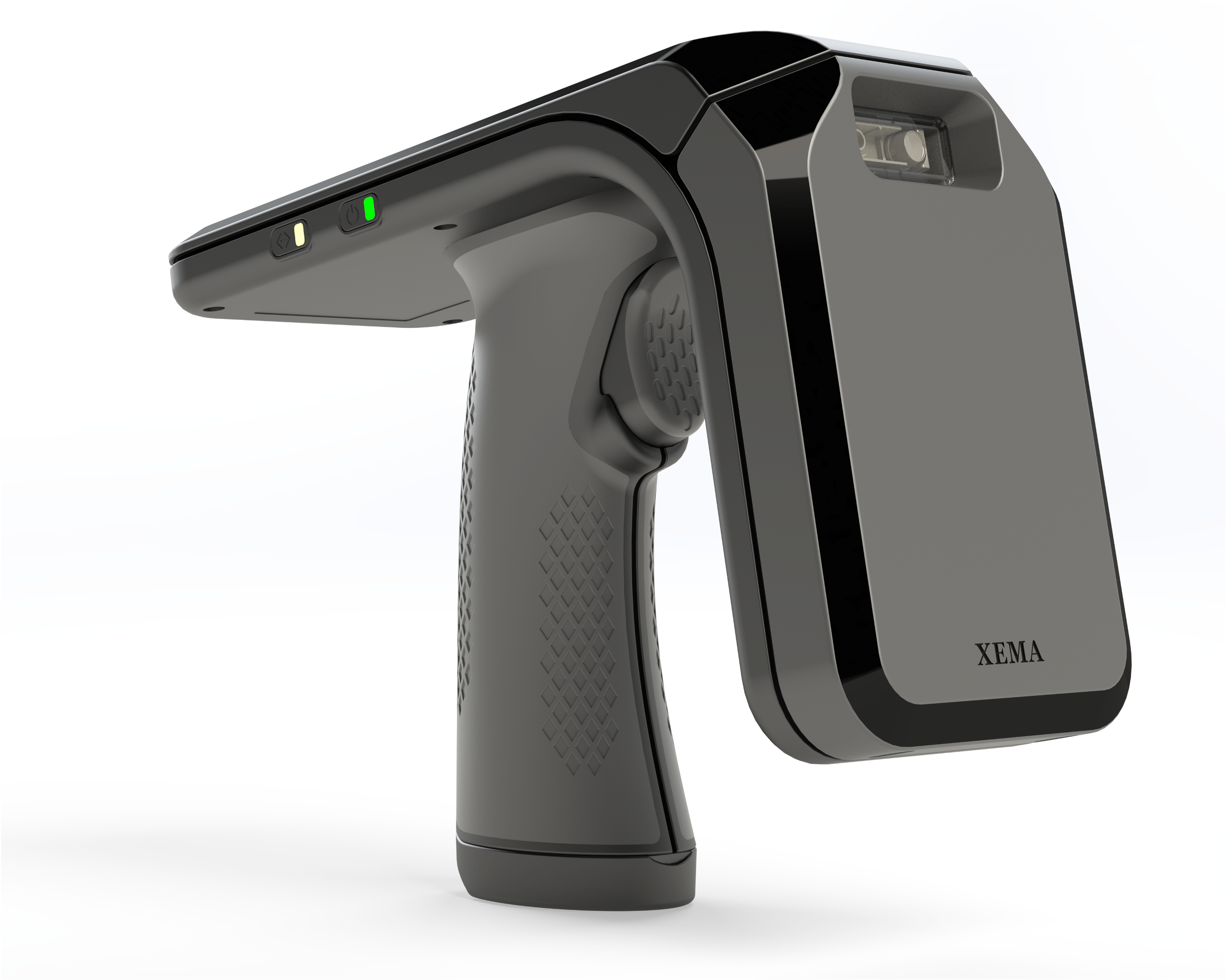

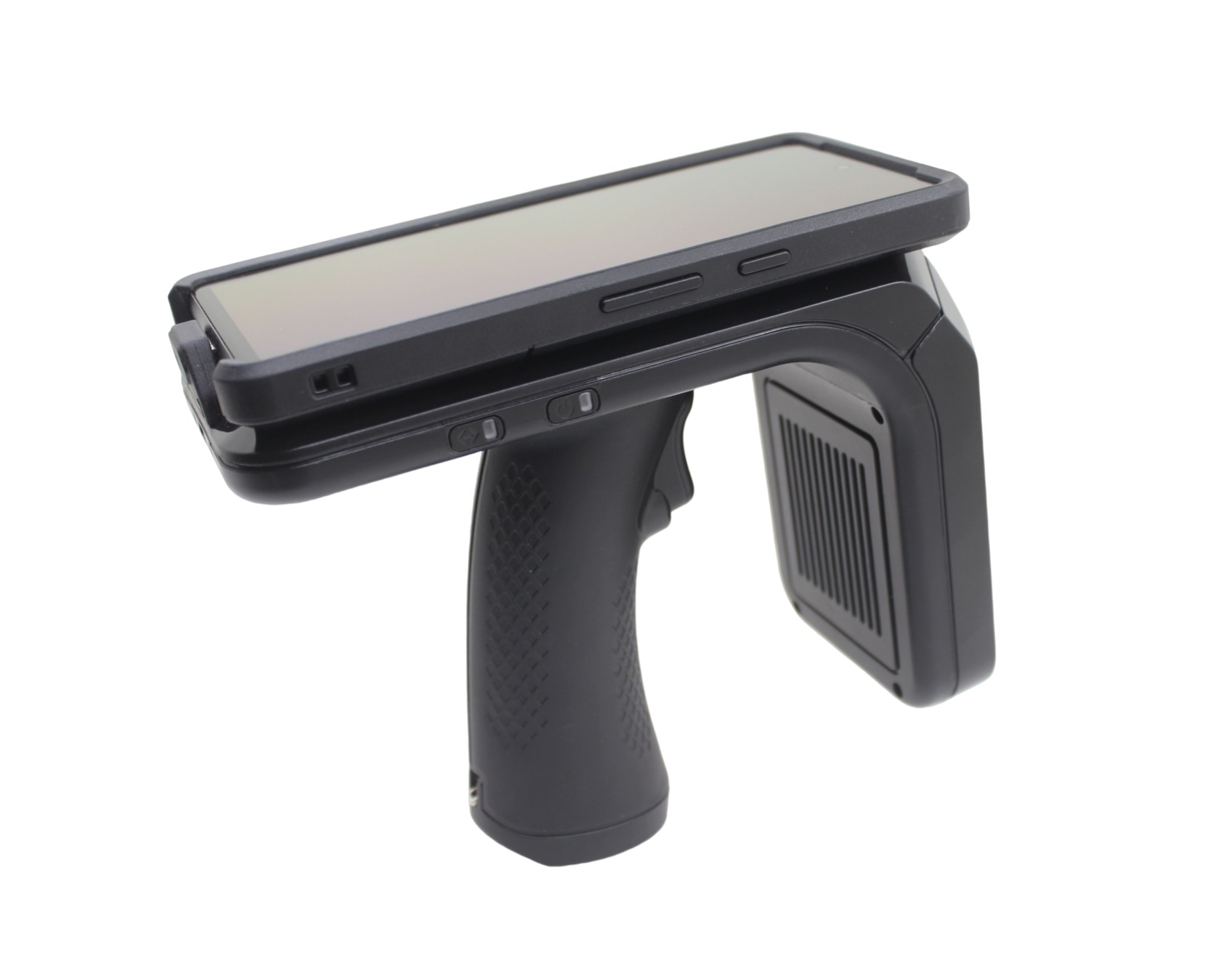

| X80 |
Portable RFID/Barcode Reader |
 |
 |
 |
RFID SPECIFICATIONS
| RF Engine | XEMA M87P1 module with Impinj E710 die inside |
| Air Protocols | ISO 18000-63 (EPC Class1 Gen2 v2) |
Frequency Range | 902-928 MHz (FCC Part 15.247) 865-868 MHz (ETSI EN 302 208) Japan, Taiwan, and other worldwide regions |
| RF Power Output | Up to 33 dBm |
| RX Sensitivity | < -83 dBm |
| Fastest Read Rate | > 1300 tags/s |
| Nominal Read Range | ~8 m (~26.2 ft.) |
| Number of Channels | FCC: 50 hopping channels ETSI: 4 channels |
BARCODE SPECIFICATIONS
| Standard Engine | Honeywell N6703, Standard Range |
| Sensor Resolution | 1280 x 800 pixels global shutter |
| Reading Distance |
517 mm / 20.3 in (10 mil C39) 414 mm / 16.3 in (15 MIL QR) |
| Aimer | Cross target red laser |
| Illumination | White LED |
| Symbologies |
Linear: Codabar, Code 11, Code 128, Code 2 of 5, Code 39, Code 93 and 93i, EAN/JAN-13, EAN/JAN 8, IATA Code 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI, GS1 Databar, UPC-A, UPC E, UPC-A/EAN-13 with Extended Coupon Code, Coupon GS1 Code 32(PARAF), EAN-UCC Emulation, GS1 Data Bar 2D: Codablock A, Codablock F, PDF417, MicroPDF417, Aztec Code, Data Matrix, MaxiCode, QR Code, Chinese Sensible (Han Xin), Grid Matrix, Dot Code Postal: Australian Post, British Post, Canadian Post, China Post, Japanese Post, Korea Post, Netherlands Post, Planet Code, Postnet |
PHYSICAL & ENVIRONMENTAL CHARACTERISTICS
| Dimensions | 140 H x 78 W x 168 L (mm) 5.5 H x 3.1 W x 6.6 L (in) |
| Weight | 430 gr (15.2 oz) with battery |

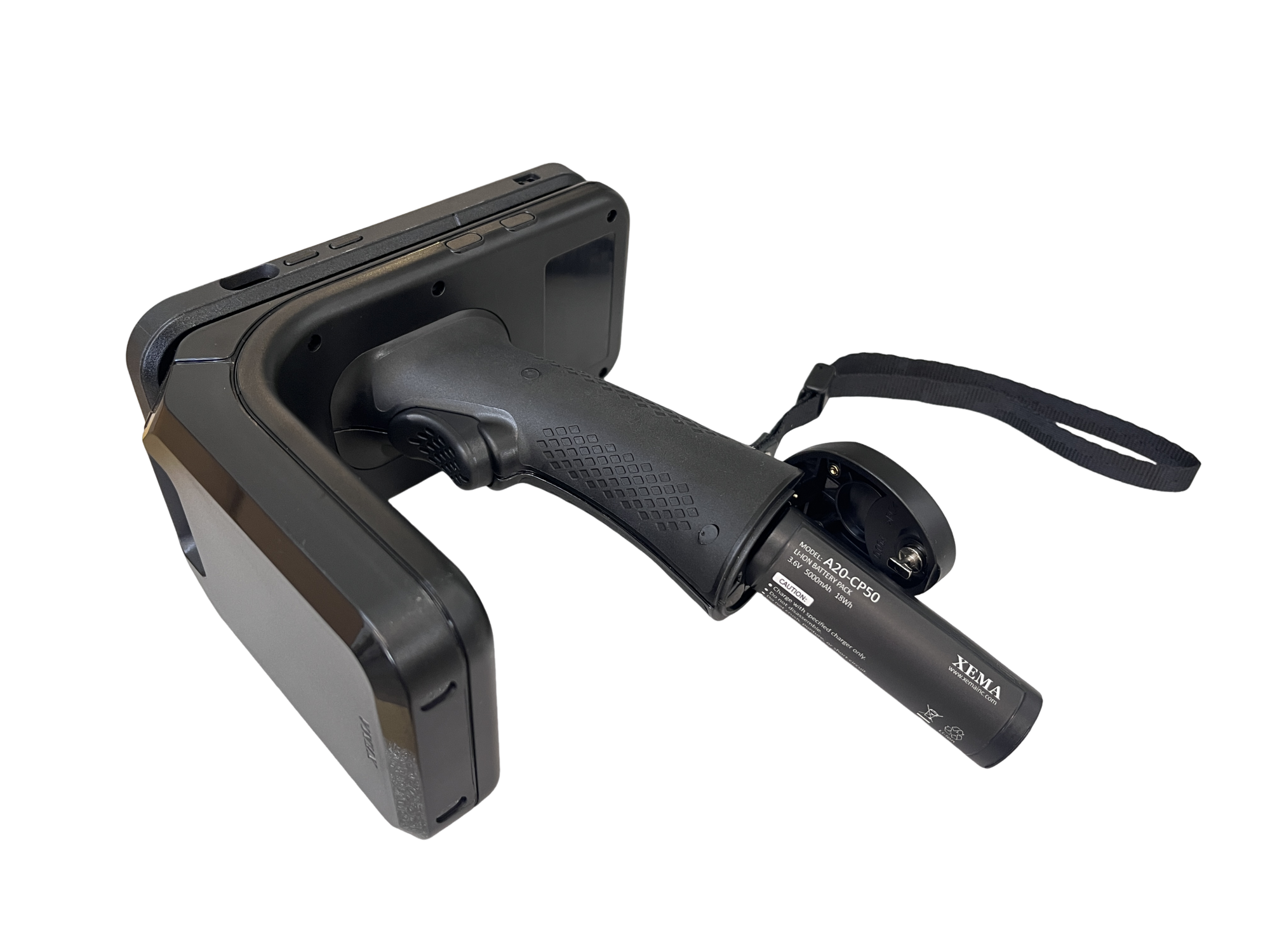

| Battery | Li-ion 5,000 mAh, removable |
| Indicators | 4-Multicolor LEDs: Power, Mode, BT, and Wifi RFID read LED/beeper Barcode decode LED/beeper Low battery status LED |
| Operating Temp. | -20°C to 60°C/-4°F to 140°F |
| Storage Temp. | -40°C to 70°C/-40°F to 158°F |
| Humidity | 5%-85% non-condensing |
| IP Rating | IP65 |
COMMUNICATION & SUPPORTED DEVICE
| Supported OS | iOS, Android, Windows, Linux |
| Interface | USB Type-C, Wifi, and Bluetooth |
| Supported Device |

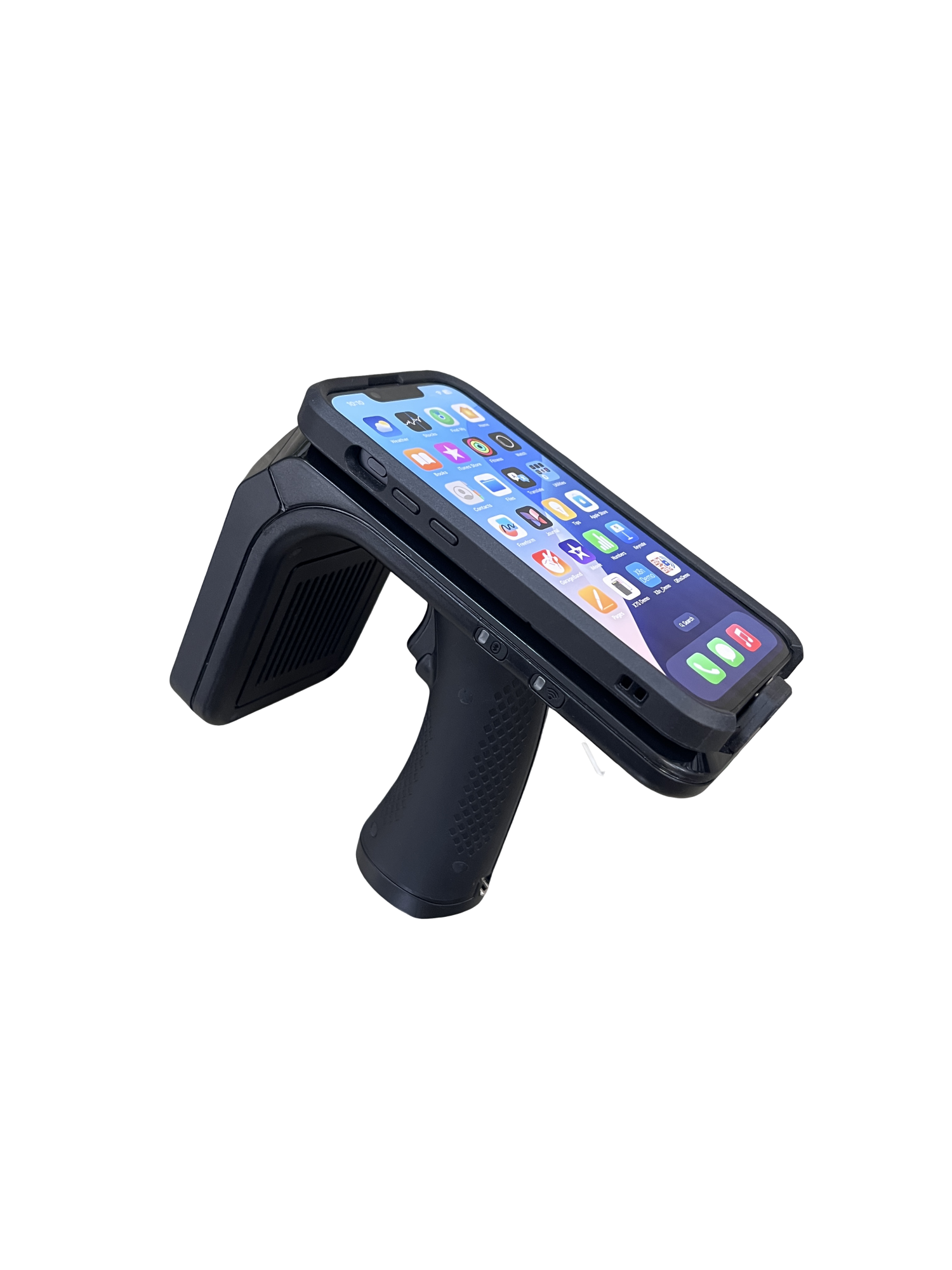

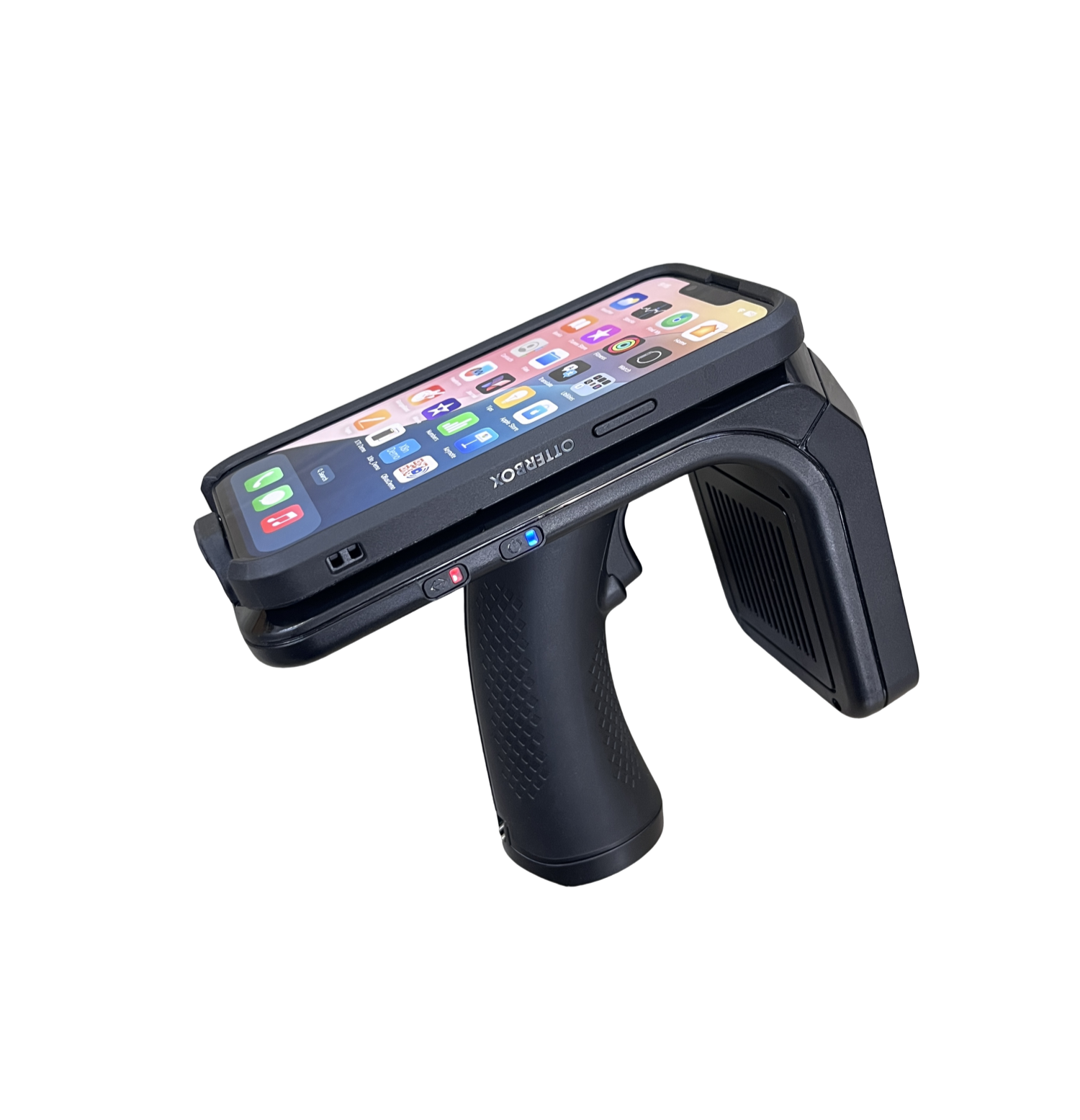

Xema branded mobile computer. iPhone 15, 16e, etc. Samsung Galaxy XCover Pro, XCover6 Pro, etc. Google Pixel 7, 7A, etc. *Please contact us for more supported devices. |
ACCESSORIES
| Standard Accessories |

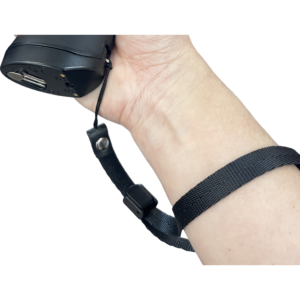

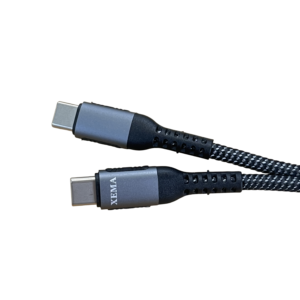

Type-C cable & wrist strap |
ORDER INFORMATION
| P/N | Description |
| X80-WFBT-USNNB | RAIN RFID Portable Reader (FCC), Wifi/BT |
| X80-WFBT-USH1B | RAIN RFID Portable Reader (FCC), Wifi/BT, 2D |
| X80-C582-USNNB | RAIN RFID Portable Reader (FCC), Type-C-582 |
| X80-C582-USH1B | RAIN RFID Portable Reader (FCC), Type-C-582, 2D |
| X80-C738-USNNB | RAIN RFID Portable Reader (FCC), Type-C-738 |
| X80-C738-USH1B | RAIN RFID Portable Reader (FCC), Type-C-738, 2D |

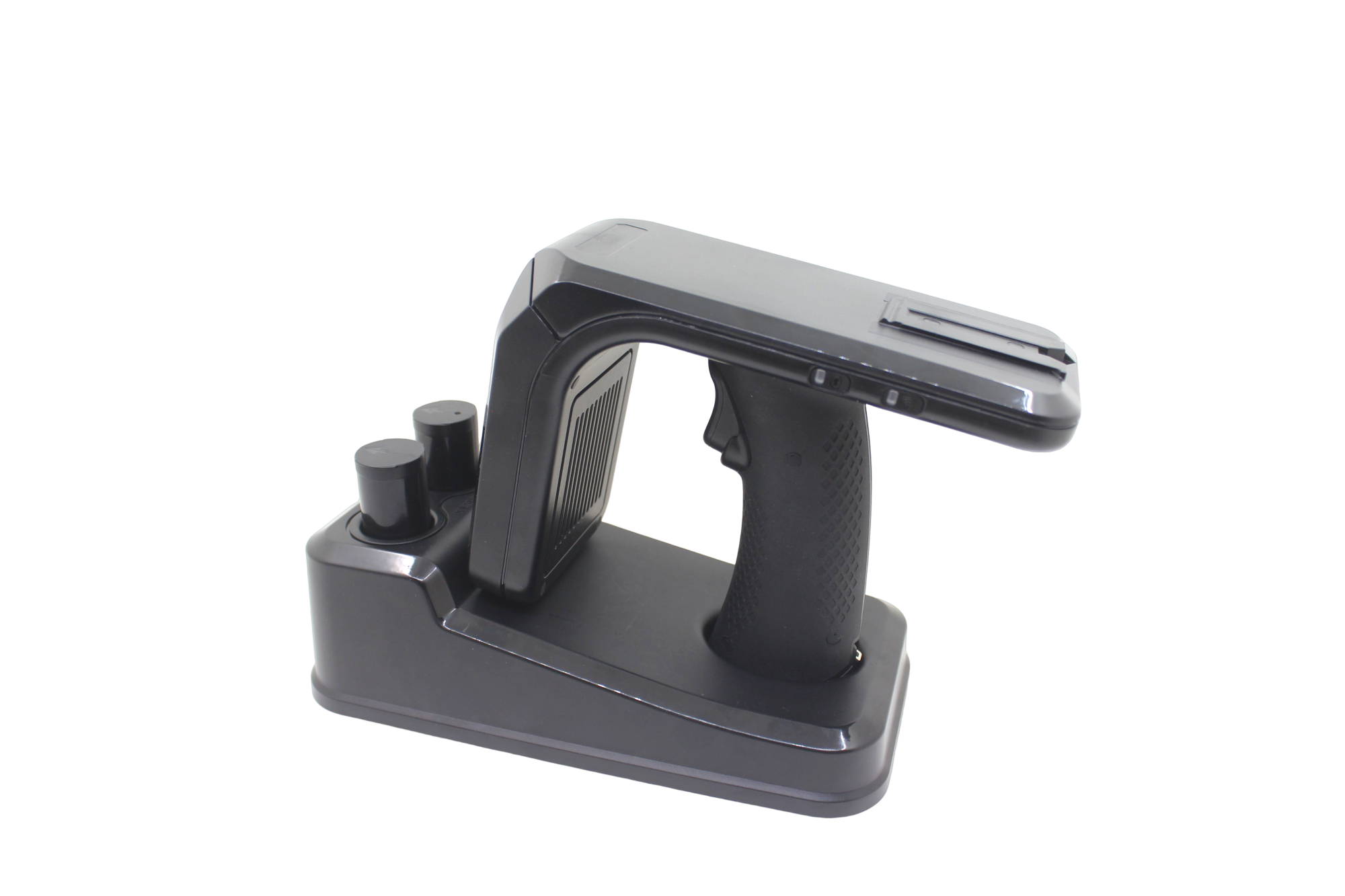

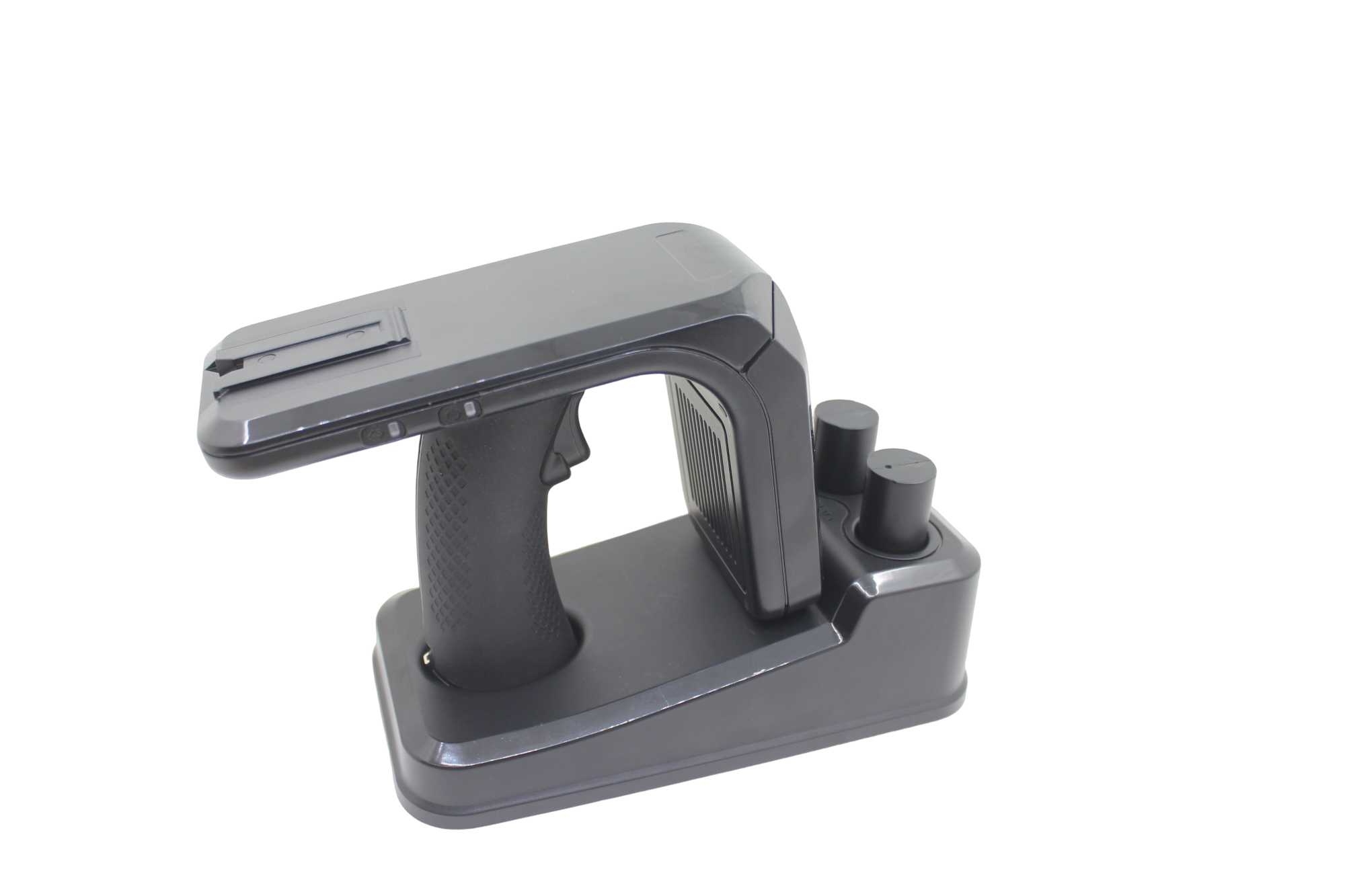

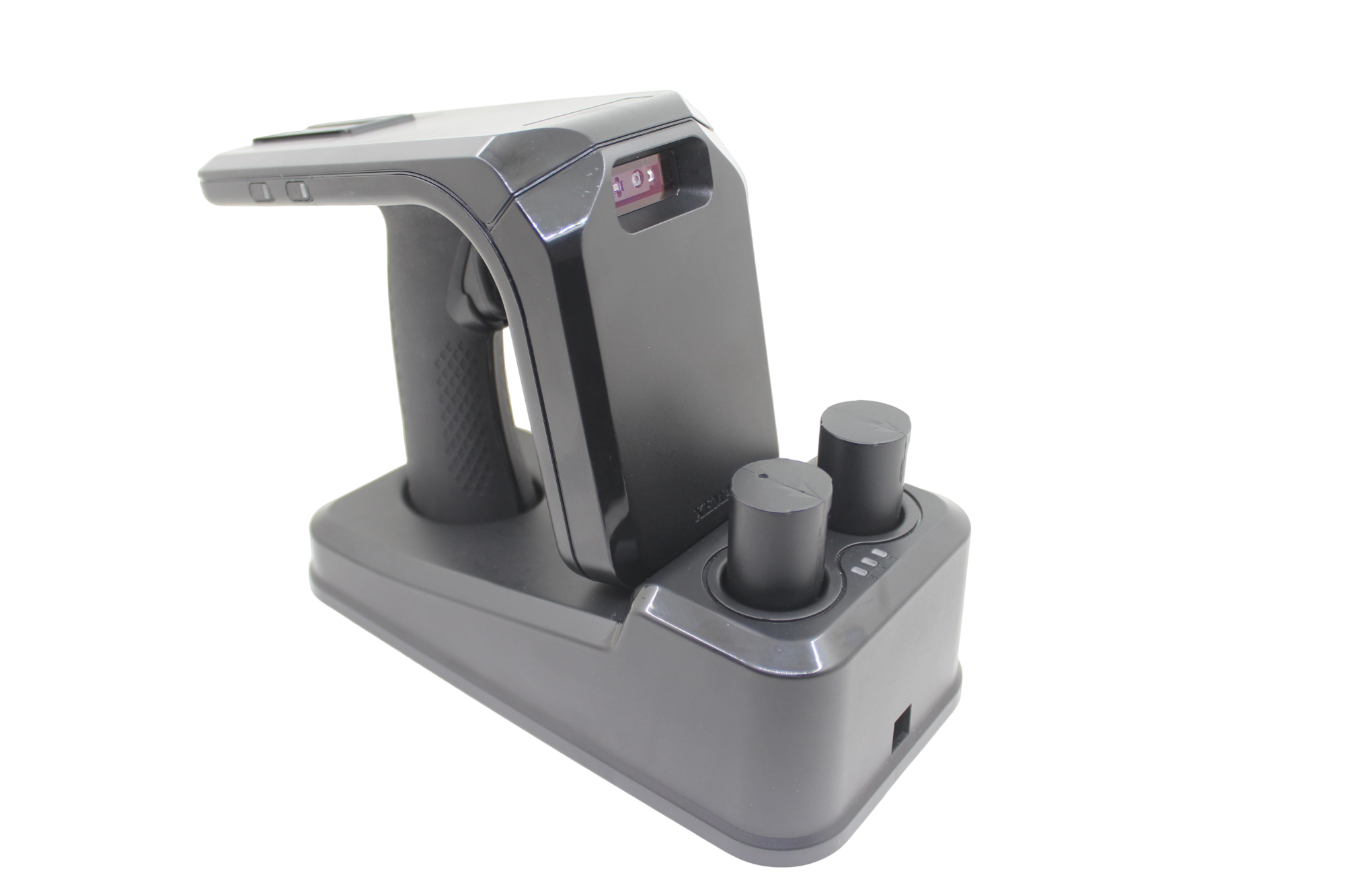

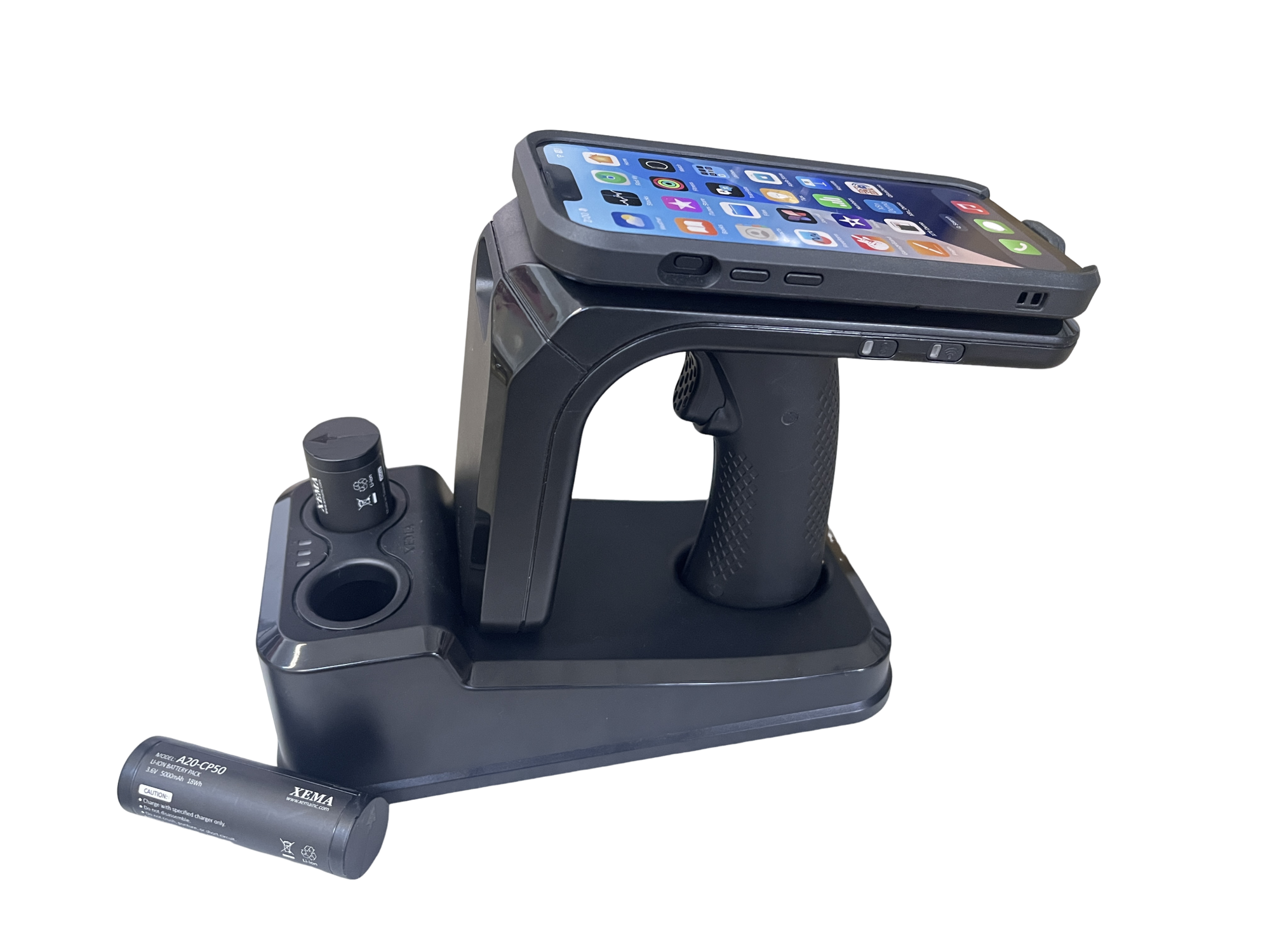

| A10-X80P | Docking Charger for X80 w/ 2-Pack A20-CP50 |

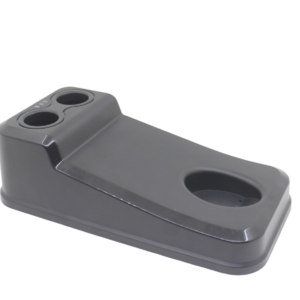

| A10-X80S | Docking Charger for X80 |

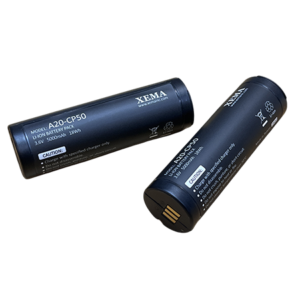

| A20-CP50 | Power Pack, 3.6V 5000 mAh |
