| X89 |

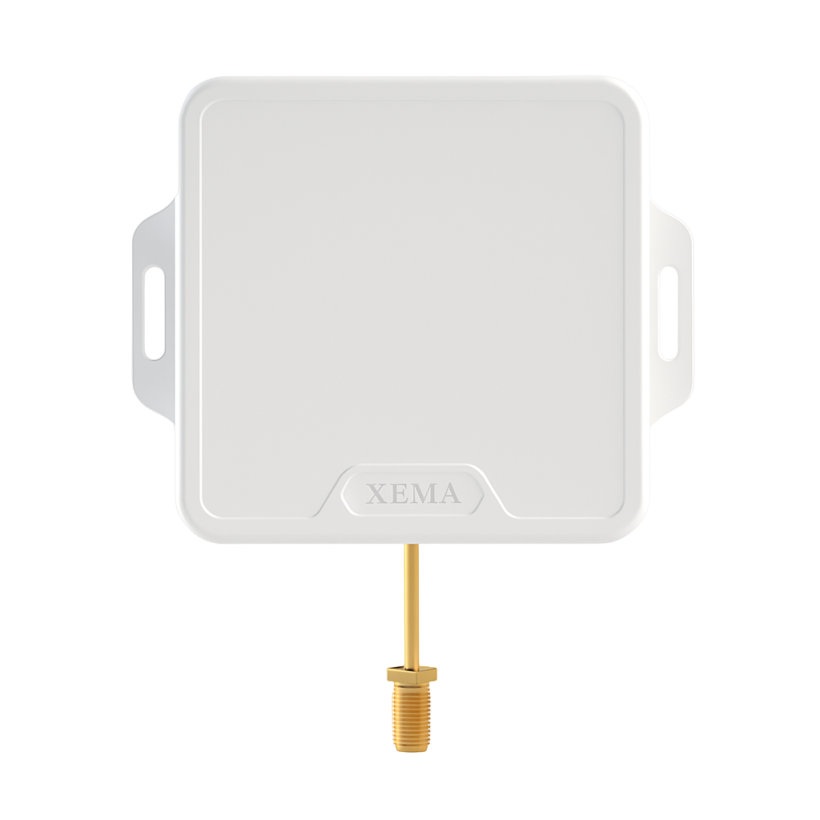

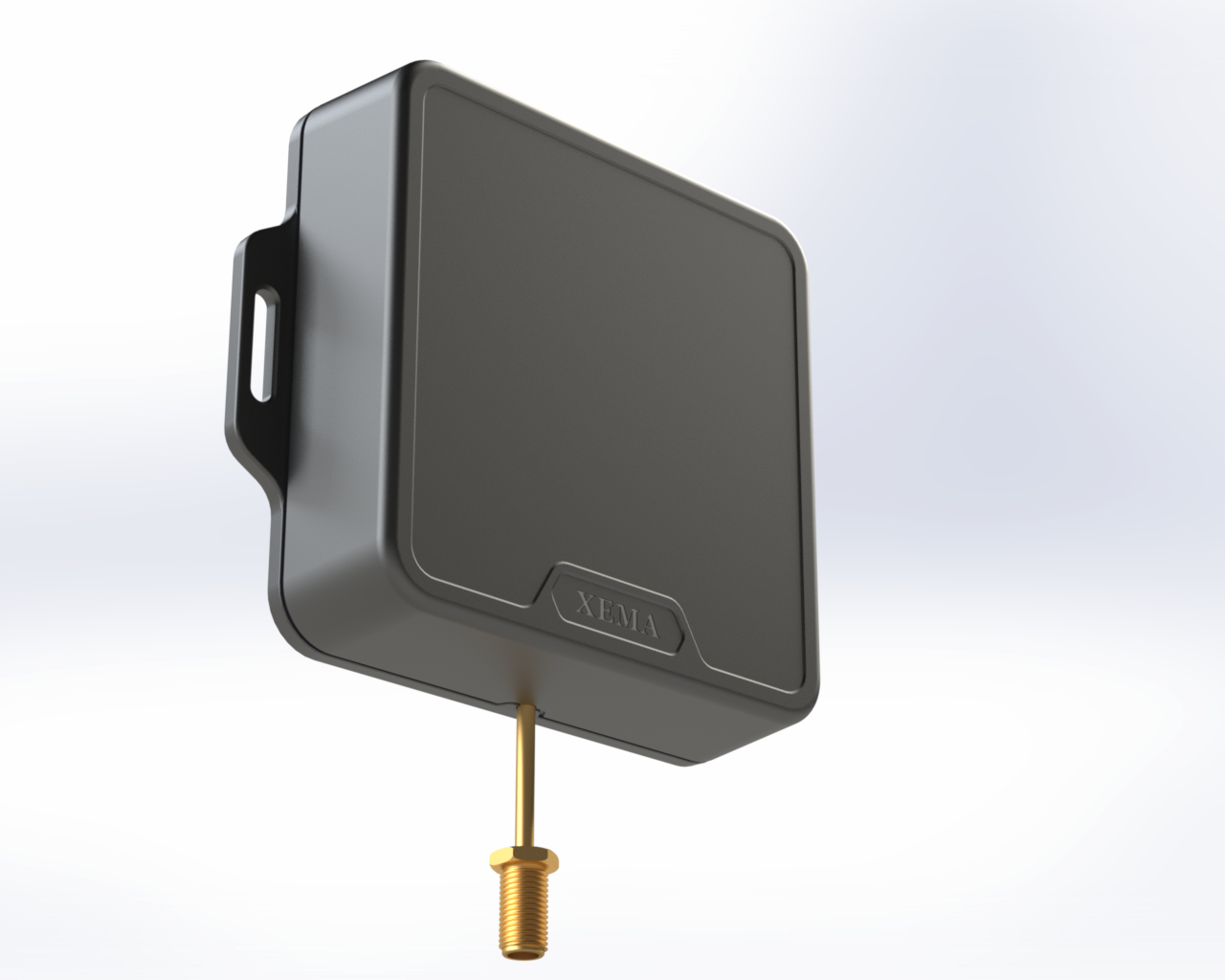

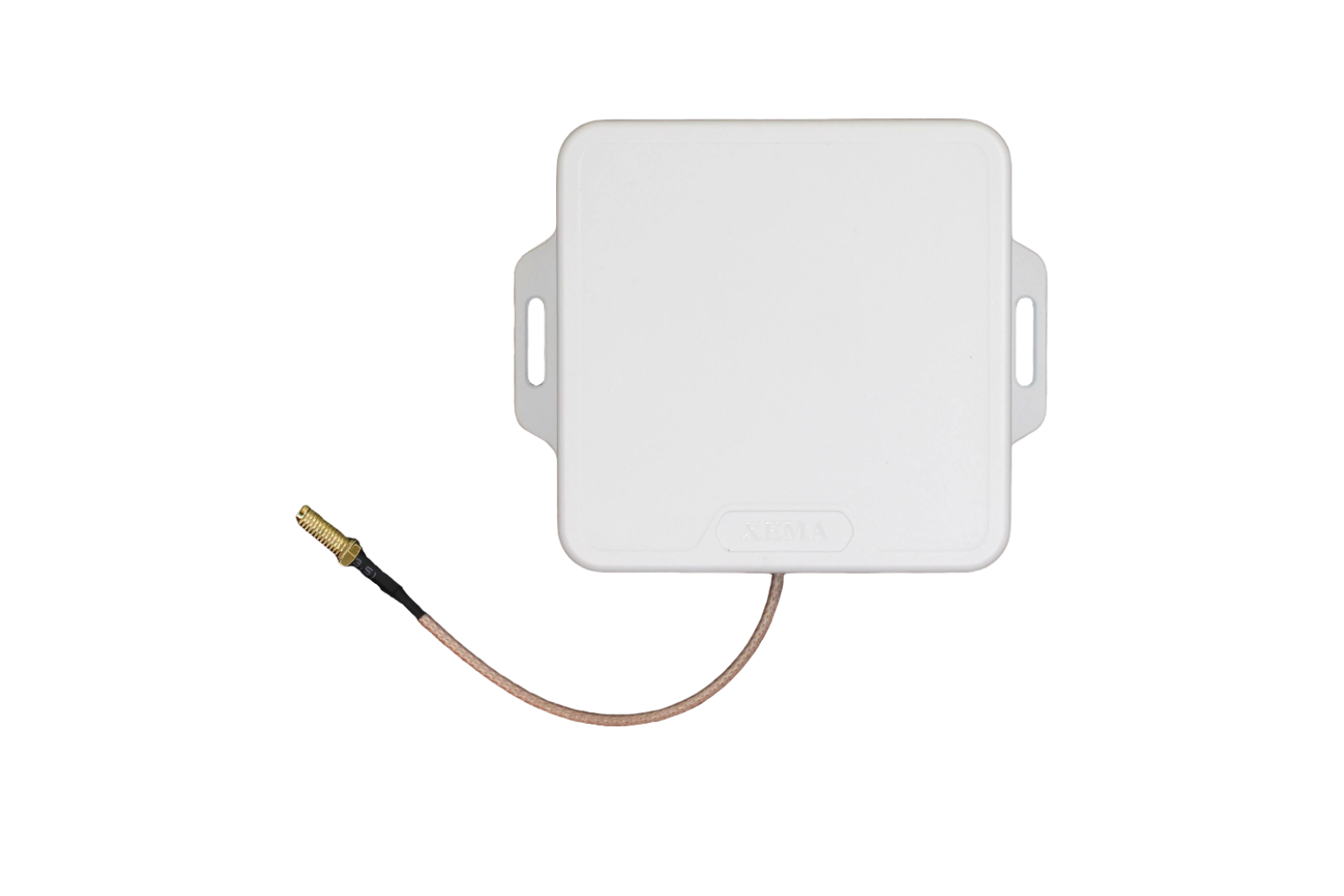

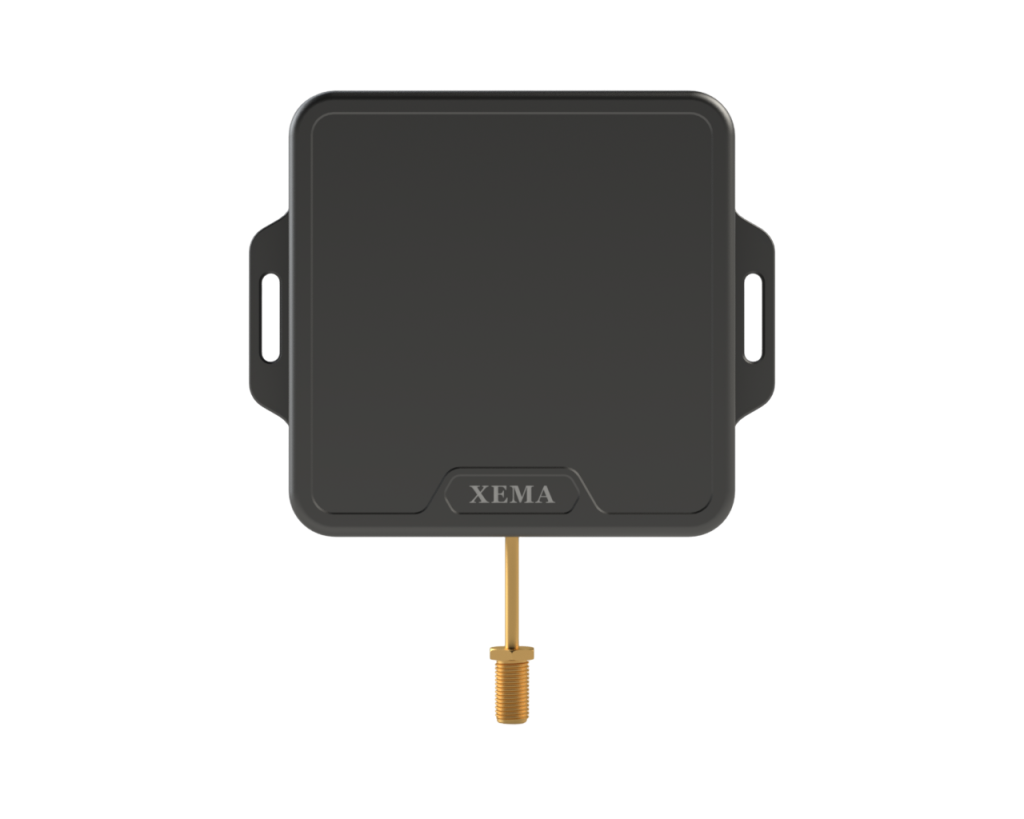

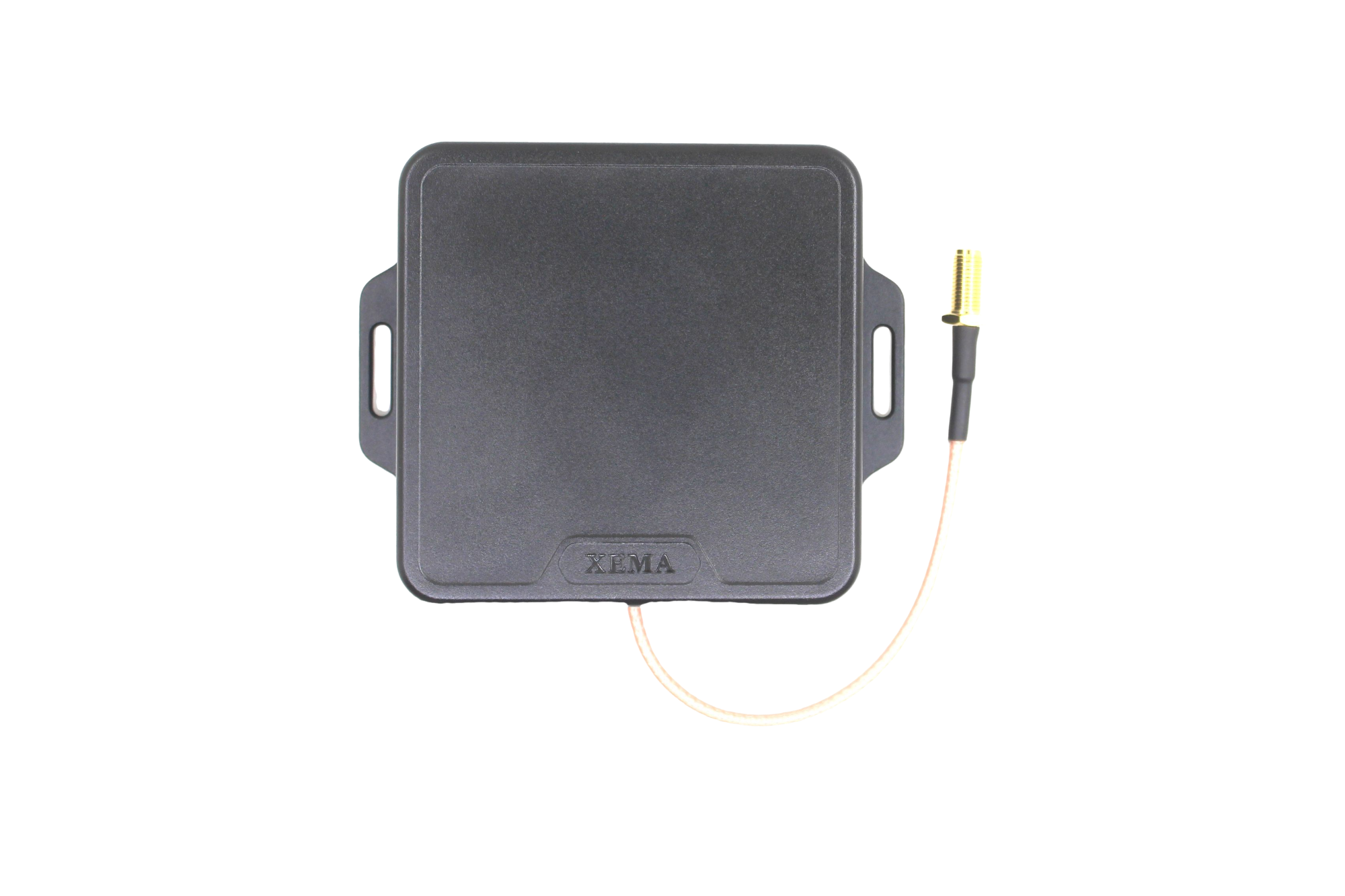

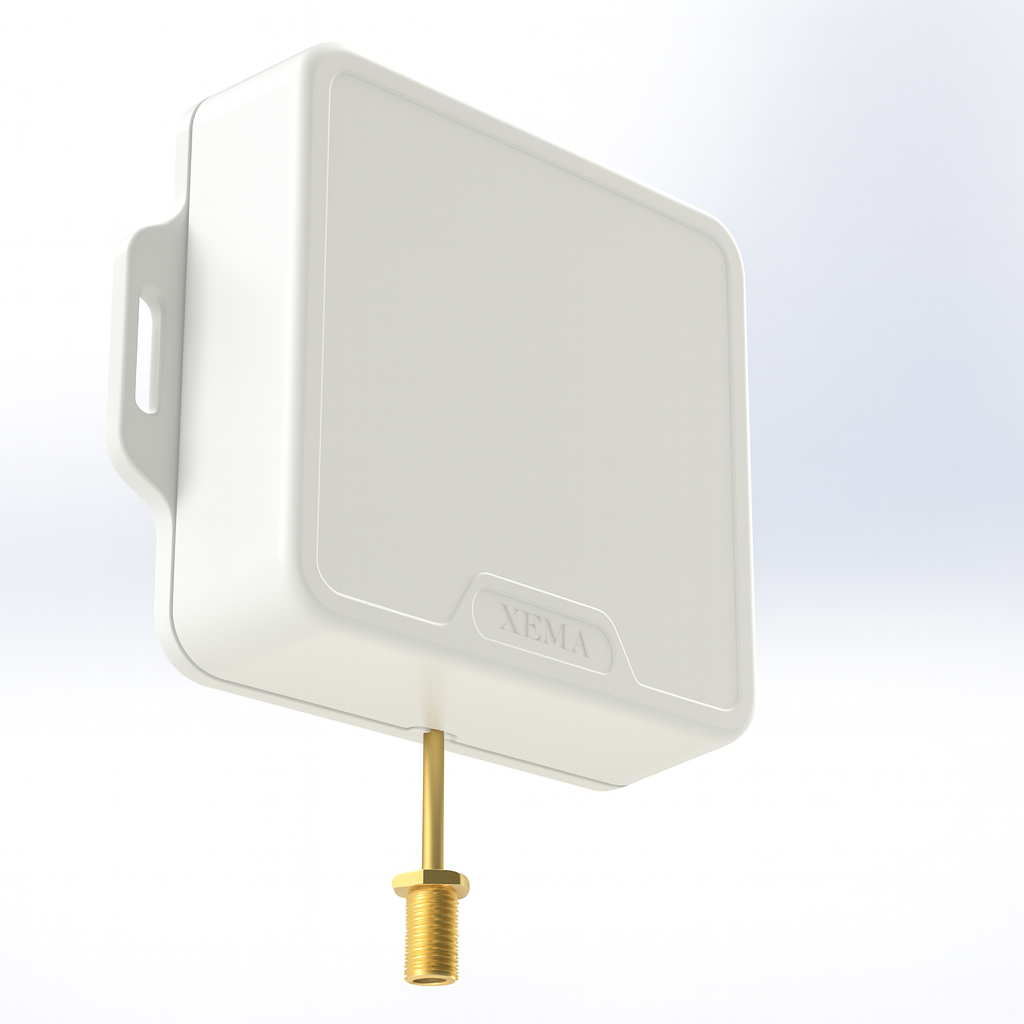

UHF RAIN RFID Antenna |
 |
 |
RFID SPECIFICATIONS
| Frequency | 902~928MHz |
| Return Loss | <-18 dBm |
| Gain | 2.6 dBi |
| Beamwidth (@3dB) | 110 Typical |
| Impedance | 50Ω |
| Polarization | RHCP |
| RF Cable & Connector | RG316 & SMA(F) |
| Material | FR4 (Antenna) & PC (Case) |
| Weight | 70 gr |
| IP Rating | IP66 |
