| X89-A22A |

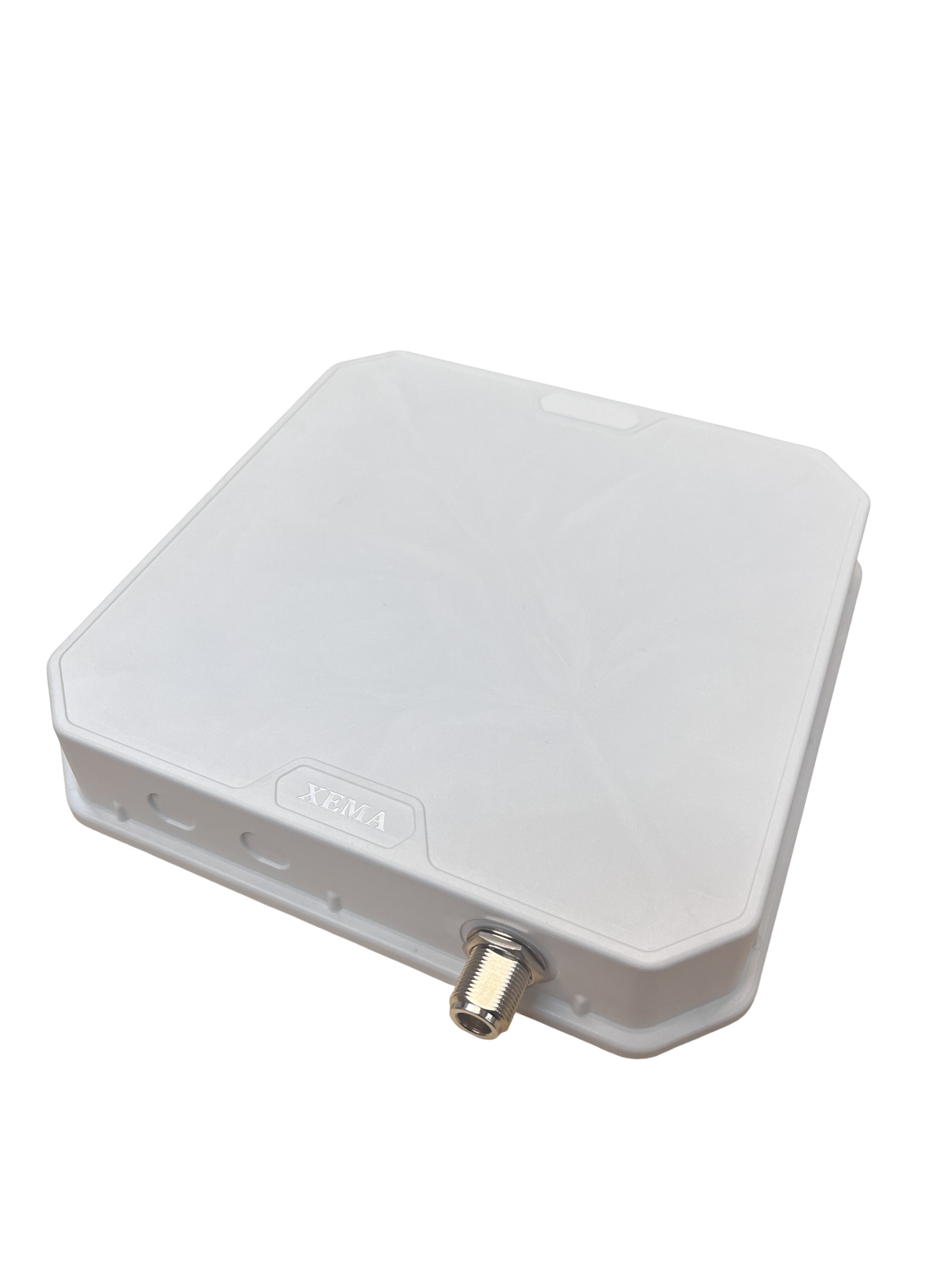

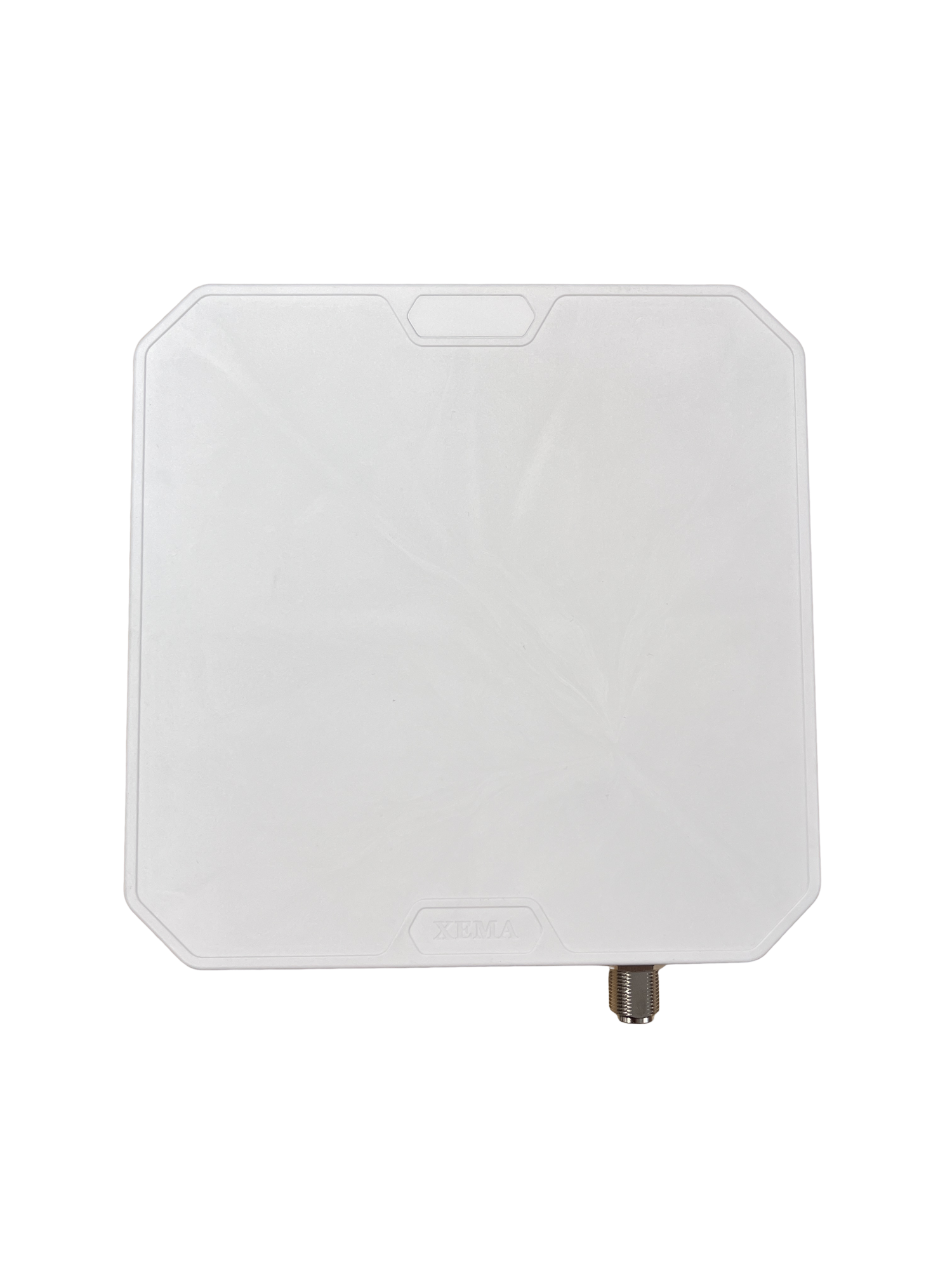

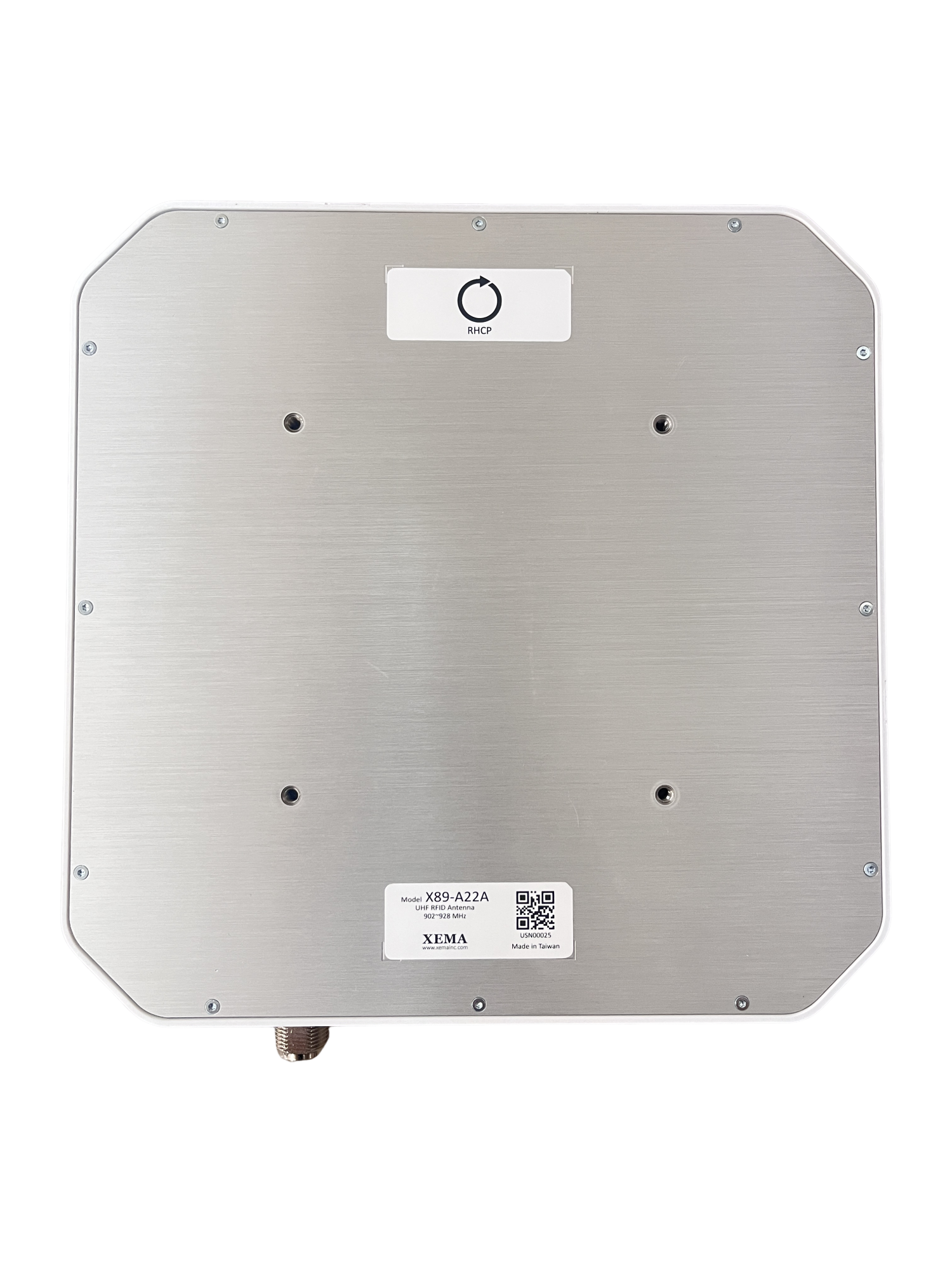

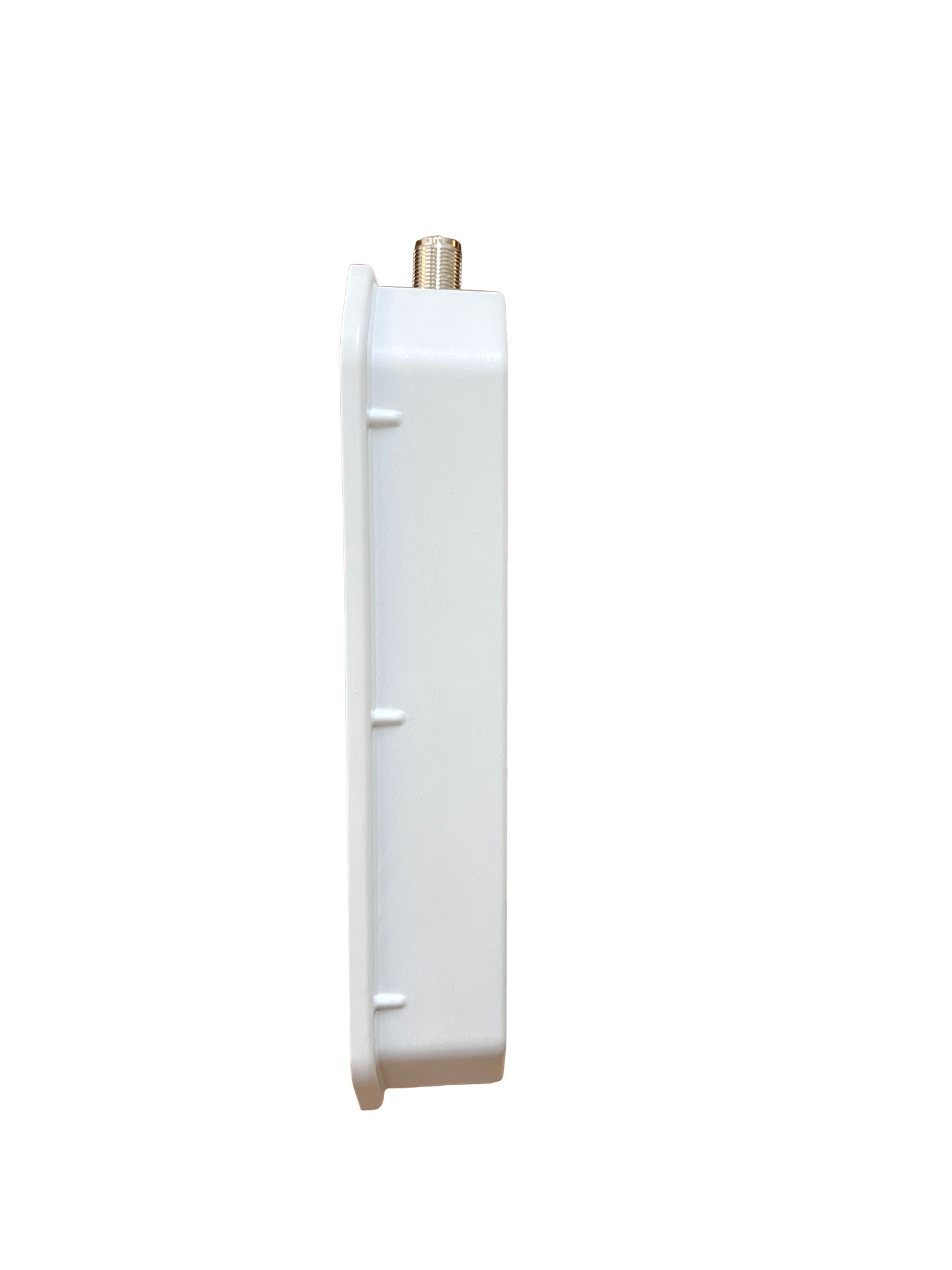

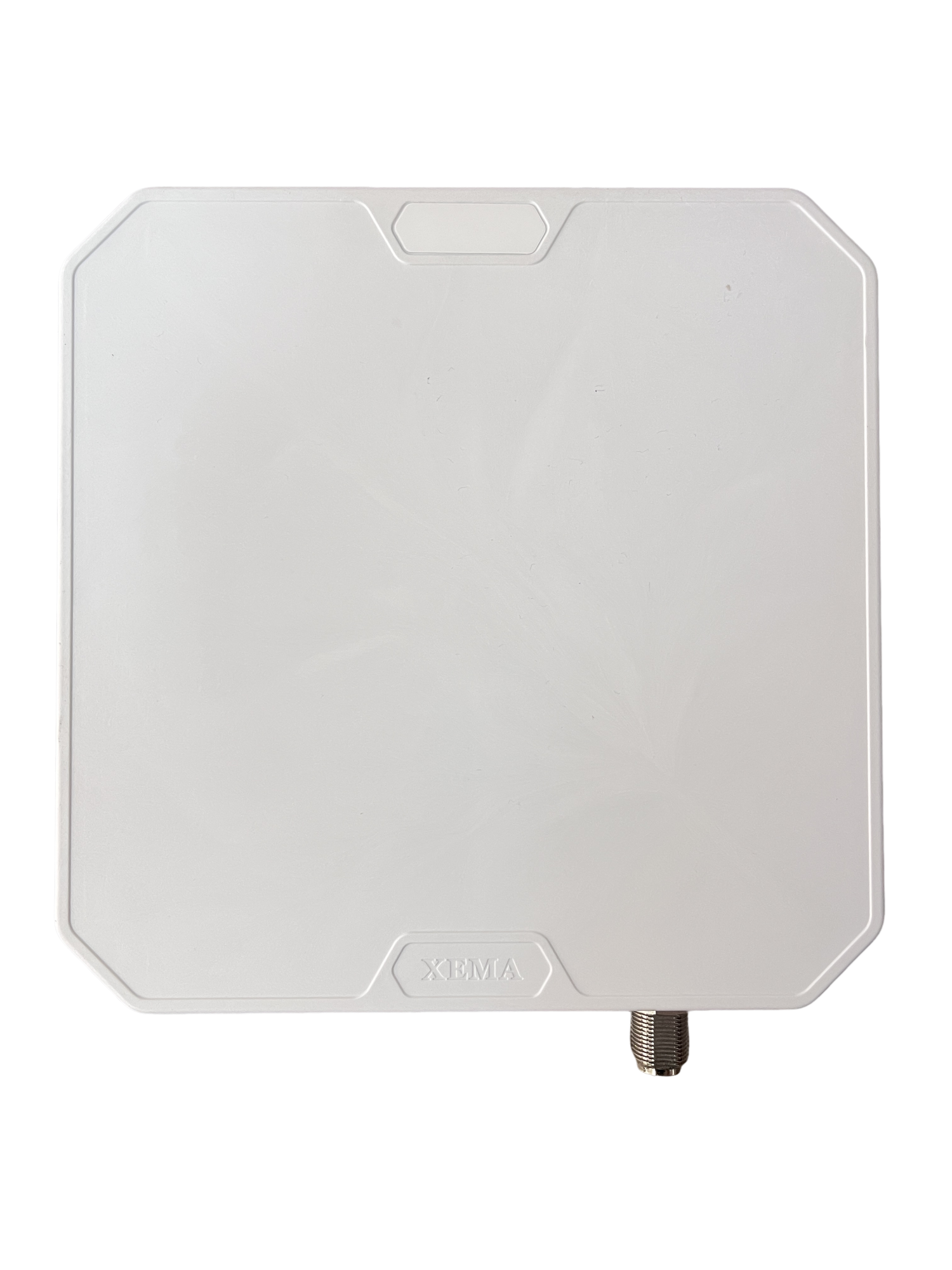

UHF RAIN RFID Antenna |
 |
 |
RFID SPECIFICATIONS
| Frequency | 902~928MHz |
| Return Loss | -17 dB Min |
| Bean Efficiency | 78% Max |
| Gain | 7.8 dBi Max |
| Beamwidth (@3dB) | 70° Typical |
| Impedance | 50Ω |
| Polarization | RHCP |
| Connector | N(F) |
| Material | FR4 (Antenna) & PC/ASA (Case) |
| Dimension | 220 x 200 x 38 (mm) |
| Weight | 580 gr |
| Mounting | VESA 100, 4* M4x0.7 Thread |
| IP Rating | IP65 |
| Operating Temp. | -20~70°C |
COUNTRY OF ORIGIN
| Made in Taiwan |
